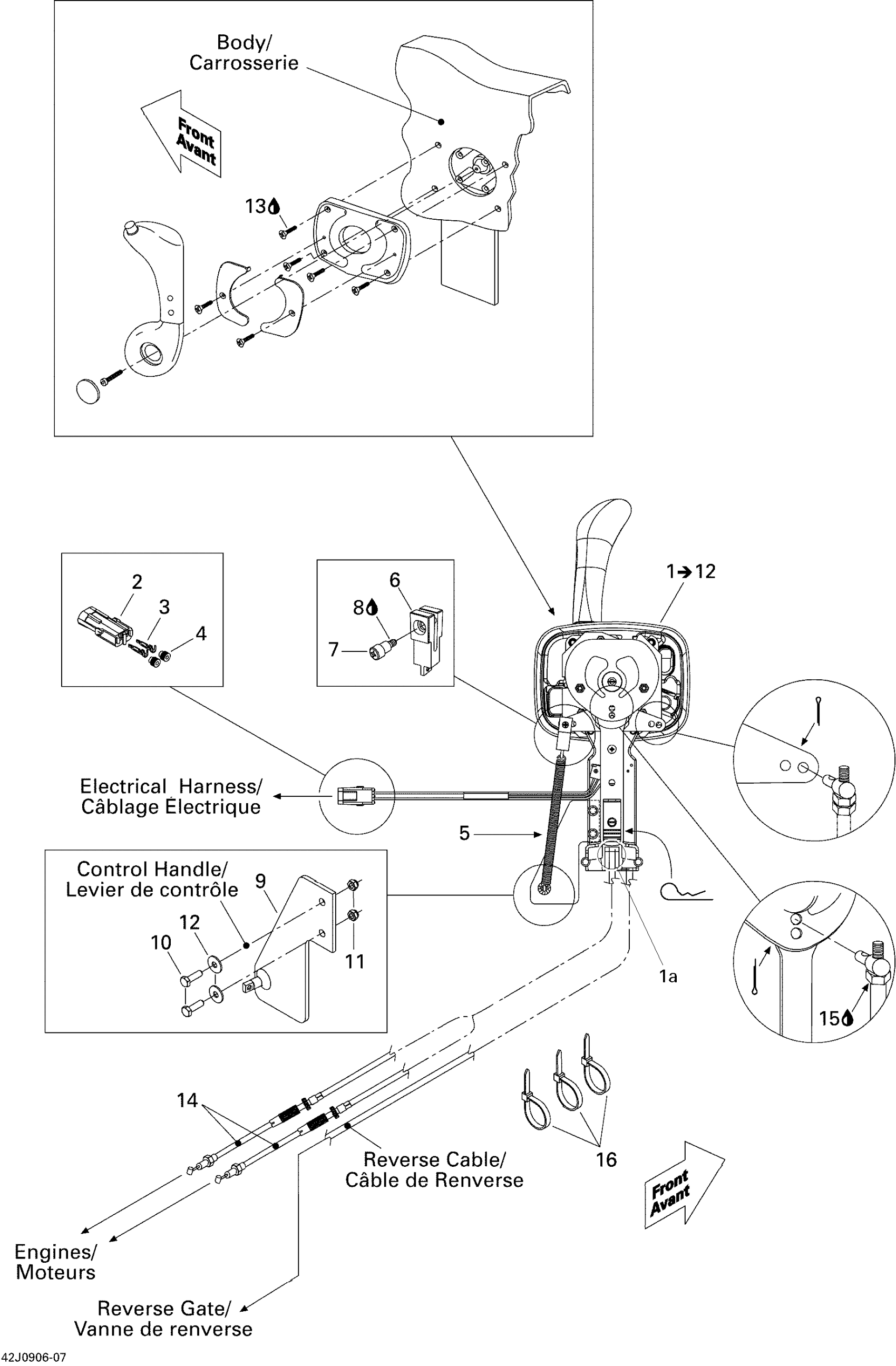

Sea-doo 205 Utopia SE, 2 x 215 SCIC, 2009 Control Handle Diagram

#

Description
Price

1

CONTROL HANDLE ASS'Y - Call your local BRP dealership | Includes 1 to 12

204390530

Unavailable

1a

NEUTRAL SAFETY SWITCH - Call your local BRP dealership

296000310

Unavailable

2

Female Housing, 2 Circuits

278000217

$9.59

3

Male Terminal | XT Models

278000222

$3.19

4

Wire Seal

278000218

$4.39

5

SPRING - Call your local BRP dealership

204130208

Unavailable

6

CLEVIS, STAINLESS STEEL - Call your local BRP dealership

204130209

Unavailable

7

PHILLIPS HD.SHOULDER SCREW - Call your local BRP dealership

204100229

Unavailable

8

Loctite 271, 10 ml

293800005

$26.99

9

BRACKET, STAINLESS STEEL - Call your local BRP dealership

204390526

Unavailable

10

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

11

Hex. Elastic Nut M5 | X

232551600

$1.15

12

Flat Washer 5 mm, Stainless

234052600

$0.77

13

Loctite 243, 10 ml

293800060

$21.49

14

Throttle Cable

204390451

Unavailable

15

Loctite 243, 10 ml

293800060

$21.49

16

Tie-Rap 180 mm

414115200

$0.11
