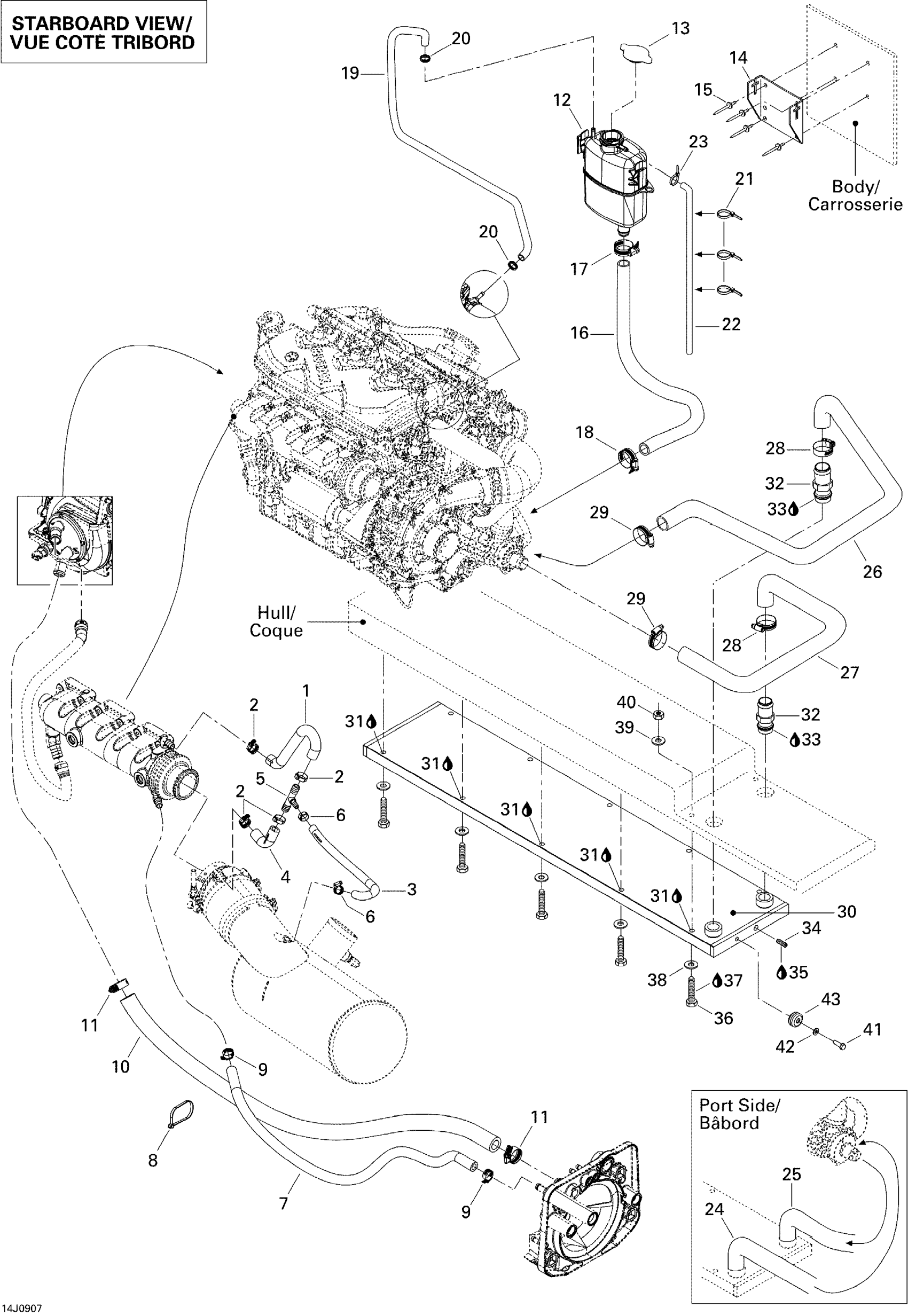

Sea-doo 205 Utopia SE, 2 x 215 SCIC, 2009 01- Cooling System Diagram
#
1
Hose, Bypass Upper | Without Catalyst This part replaces 276000244.
276000484
$19.49
2
Tridon Gear Clamp
293650172
$3.09
3
Formed Hose | Without Catalyst
276000246
$19.49
4
Hose, Bypass Lower | With Catalyst This part replaces 276000137.
276000455
$19.49
5
T-Fitting
293710116
$17.62
6
Tridon Gear Clamp
293650171
$3.09
7
Was 276000001 Hose 12.5 mm
219704394
$51.99
8
Tie Wrap 368 mm
293750008
$1.04
9
Tridon Gear Clamp
293650172
$3.09
10
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
11
Tridon Gear Clamp
293650051
$4.19
12
Coolant Tank
276000086
$109.99
13
Pressure Cap | Includes 720 to 720a
276000100
$25.99
14
COOLANT TANK BRACKET - Call your local BRP dealership
204300211
Unavailable
15
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.
293150201
Unavailable
16
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
17
Tridon Gear Clamp
293650051
$4.19
18
Tridon Gear Clamp
293650019
$5.82
19
Was 275500549 Hose 1/4"
219704357
$194.99
20
Oetiker Gear Clamp
293650025
$3.09
21
Tie Wrap 142 mm
293750002
$1.25
22
Polyurethane Hose 10000Mm Long
219704410
$56.99
23
Tie Wrap 94 mm | 4X4
293750001
$1.03
24
HOSE 25.4 MM, METER - Call your local BRP dealership
204300199
Unavailable
25
Ride Plate Hose This part replaces 204300172.
423465058
$43.99
26
HOSE 25.4 MM, METER - Call your local BRP dealership
204300199
Unavailable
27
Starboard Formed Hose - Call your local BRP dealership
204300174
Unavailable
28
Tridon Gear Clamp
293650045
$5.69
29
Tridon Gear Clamp
293650045
$5.69
30
HEAT EXCHANGER - Call your local BRP dealership
204300235
Unavailable
31
Instant Gasket
219701421
$51.99
32
Hose Fitting - Call your local BRP dealership
204300133
Unavailable
33
Était Was 293800050 Loctite 577, 250 ml
219704459
$104.99
34
Pipe Plug Socket Head 1/8-27 Npt
211500001
$9.59
35
Was 293800013 Loctite 56765
219704454
$65.99
36
SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership
205405060
Unavailable
37
Loctite 243, 10 ml
293800060
$21.49
38
Flat Washer 10 mm, Stainless
234000600
$1.46
39
Flat Washer 10 mm, Stainless
234002600
$2.22
40
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
41
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
42
Stainless Flat Washer M6
234061600
$0.33
43
Anode Zinc
271001813
$18.99
