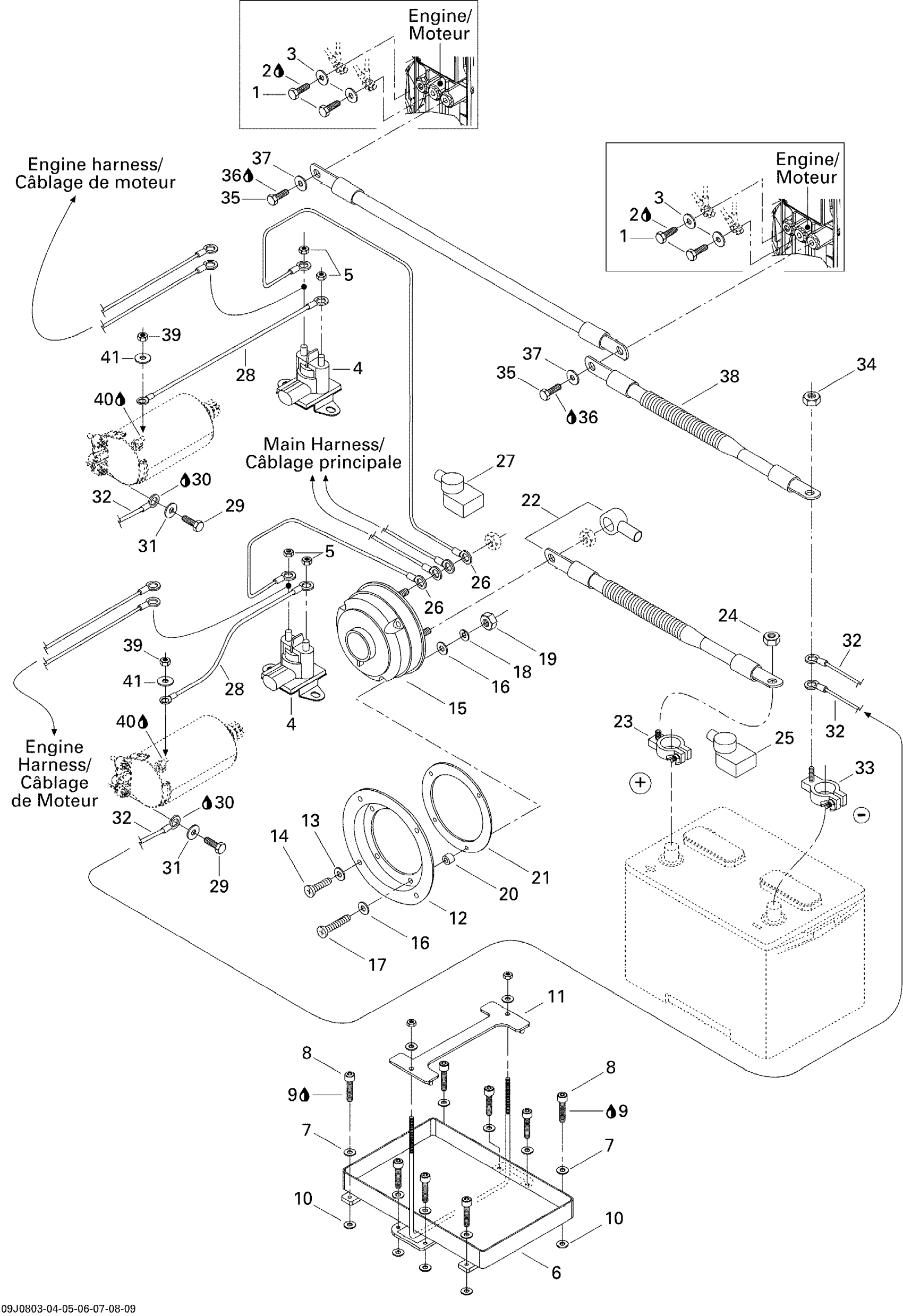

Sea-doo 205 Utopia 310, 2008 Electrical System Diagram

#

Description
Price

1

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Stainless Flat Washer M6

234061600

$0.33

4

Starter Relay

278003012

$42.49

5

Hex. Elastic Stop Nut M6

232561600

$1.15

6

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

7

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

8

Socket Head Screw M6 X 25

205062560

$1.69

9

Loctite 243, 10 ml

293800060

$21.49

10

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

11

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

12

Switch Support

204471164

Unavailable

13

Flat Washer 4 mm, Stainless

234041600

$1.15

14

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

15

BATTERY SWITCH - Call your local BRP dealership

204470814

Unavailable

16

Flat Washer M5, Stainless

234051600

$0.77

17

SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership

205455060

Unavailable

18

Helical Lock Washer M5

234151601

$1.15

19

Hex. Nut M5

232051600

$1.15

20

NYLON SPACER - Call your local BRP dealership

204470330

Unavailable

21

SWITCH ADAPTOR - Call your local BRP dealership

204470813

Unavailable

22

POSITIVE SWITCH CABLE - Call your local BRP dealership

204470250

Unavailable

23

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

24

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

25

RED BOOT - Call your local BRP dealership

204470269

Unavailable

26

RED CABLE - Call your local BRP dealership

204470853

Unavailable

26

RED CABLE - Call your local BRP dealership | Starboard

204470838

Unavailable

27

RED BOOT - Call your local BRP dealership

204470269

Unavailable

28

Red Cable

204470852

Unavailable

28

RED CABLE - Call your local BRP dealership

204470798

Unavailable

29

Hex. Elastic Stop Nut M6

232561600

$1.15

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Stainless Flat Washer M6

234061600

$0.33

32

GROUND CABLE, PORT SIDE - Call your local BRP dealership

204470854

Unavailable

32

GROUND CABLE, STARBOARD - Call your local BRP dealership

204470840

Unavailable

33

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

34

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

35

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Flat Washer M6, Stainless

234062600

$0.77

38

GROUND CABLE - Call your local BRP dealership

204470839

Unavailable

39

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Stainless Flat Washer M6

234061600

$0.33
