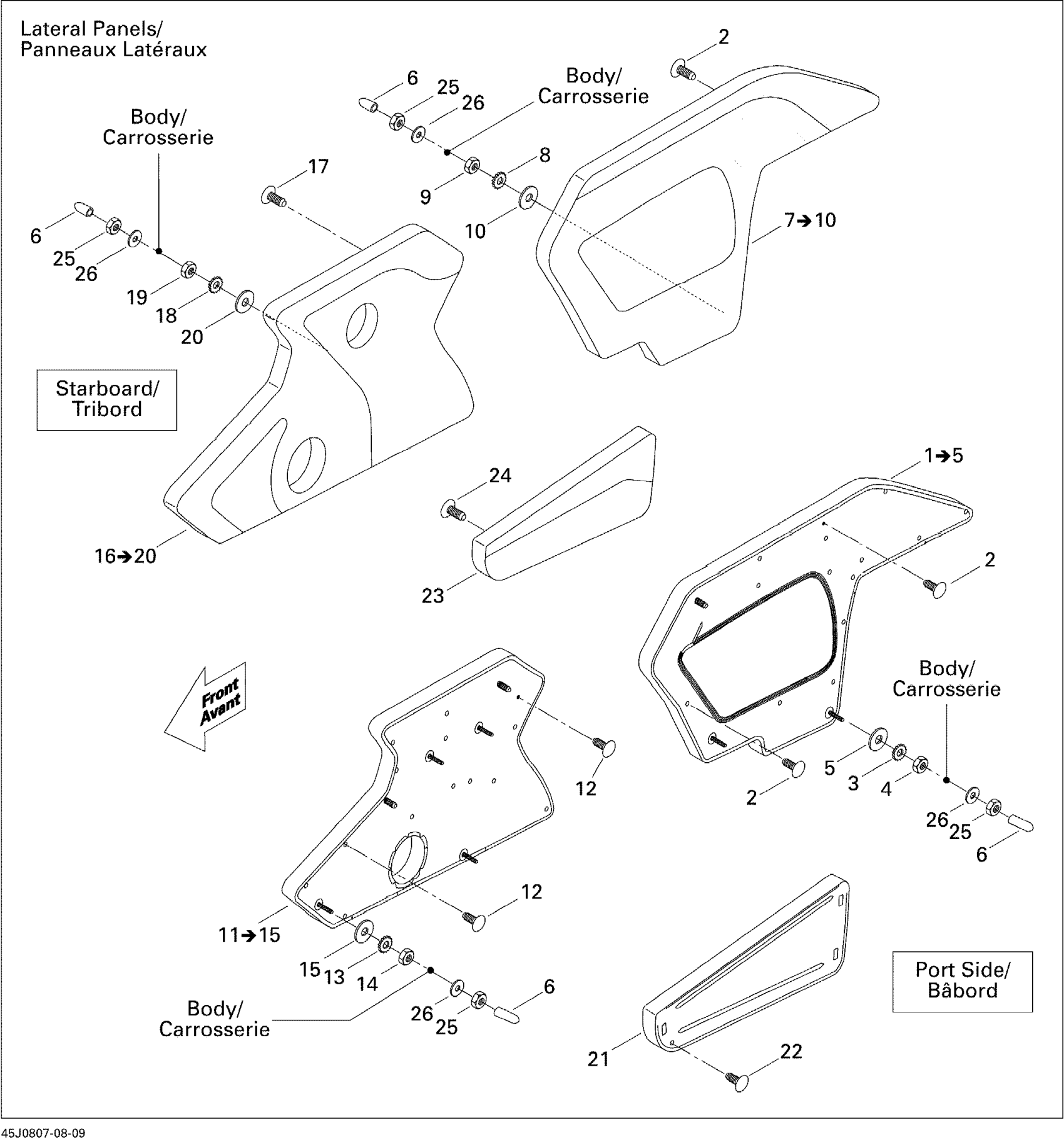

Sea-doo 205 Utopia 310, 2008 Lateral Panel Diagram

#

Description
Price

1

Rear Lateral Panel Ass'y, Port Side | Includes 1 to 5

204613186

Unavailable

2

Black Dart

293730014

$0.99

3

External Serrated Lock Washer 6 mm

234461608

$1.15

4

Hex. Jam Nut

204100060

Unavailable

5

Flat Washer M6, Stainless

234062600

$0.77

6

Cap

204070947

Unavailable

7

Rear Lateral Panel Ass'y, Starboard | Includes 7 to 10

204613189

Unavailable

8

External Serrated Lock Washer 6 mm

234461608

$1.15

9

Hex. Jam Nut

204100060

Unavailable

10

Flat Washer M6, Stainless

234062600

$0.77

11

Front Lateral Panel Ass'y, Port Side | Includes 11 to 14

204614326

Unavailable

12

Black Dart

293730014

$0.99

13

External Serrated Lock Washer 6 mm

234461608

$1.15

14

Hex. Jam Nut

204100060

Unavailable

15

Flat Washer M6, Stainless

234062600

$0.77

16

Front Lateral Panel Ass'y, Starboard | Includes 15 to 18

204614327

Unavailable

17

Black Dart

293730014

$0.99

18

External Serrated Lock Washer 6 mm

234461608

$1.15

19

Hex. Jam Nut

204100060

Unavailable

20

Flat Washer M6, Stainless

234062600

$0.77

21

Lower Panel, Port Side

204613187

Unavailable

22

Black Dart

293730014

$0.99

23

Lower Panel, Starboard

204613190

Unavailable

24

Black Dart

293730014

$0.99

25

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

26

FLAT WASHER 9/32? - Call your local BRP dealership

204100089

Unavailable
