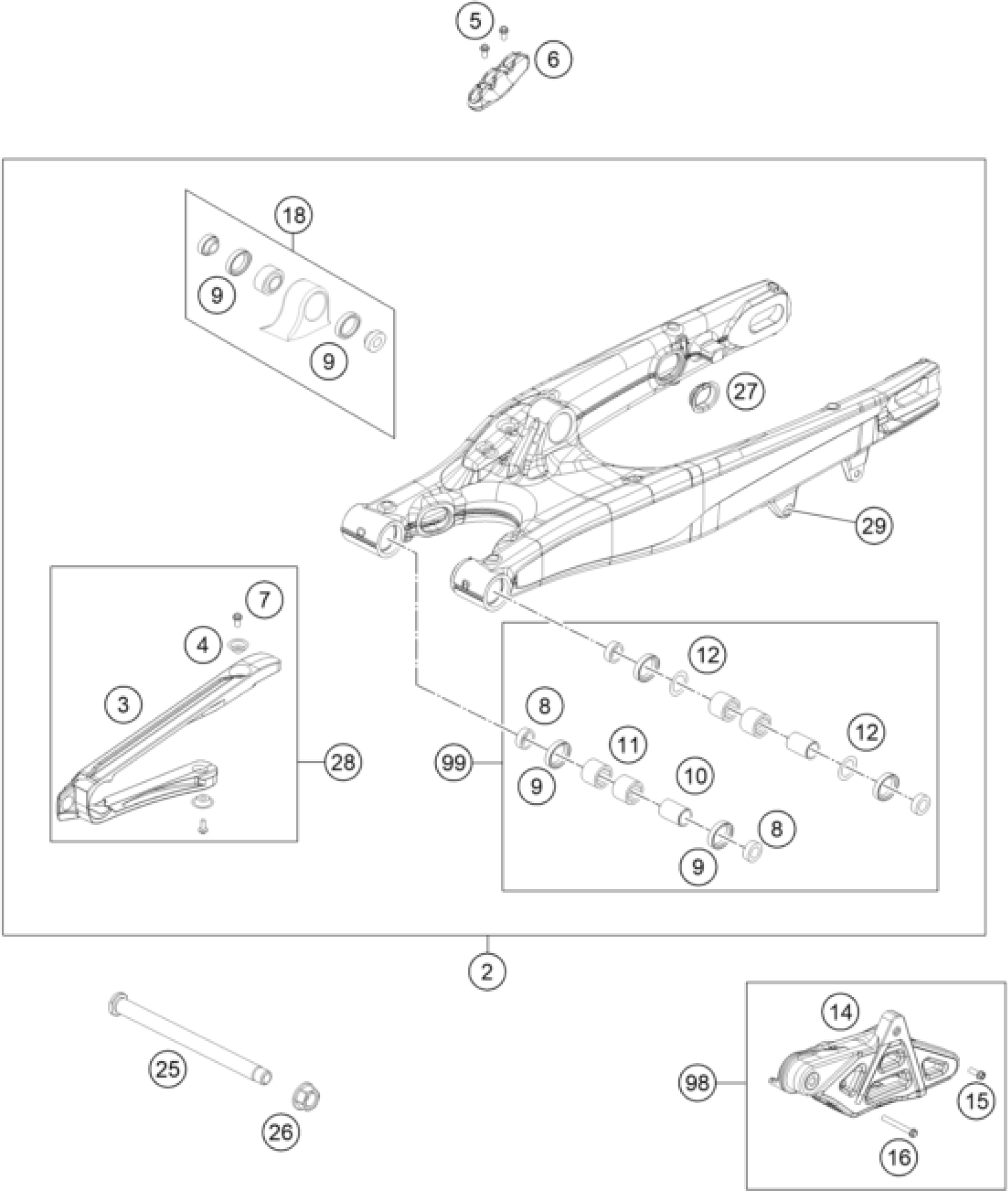

KTM 200 XC-W 2016 SWING ARM Diagram

#

Description
Price

15

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

$2.05

16

HH collar screw M6x50 TX30

0025060506

$3.08

18

PIVOT BEARING+BUSH. PDS '11

50304090144

$64.69

25

SWINGARM BOLT M16X1,5 07

77304037000

$56.65

26

Nut with flange M16X1,5 WS=19

54804038000

$2.05

27

Locking cap swingarm

77204041000

$4.11

28

CHAIN SLIDING GUARD KIT 11-15

51504066044

Unavailable

29

PRESS IN NUT M6 STEEL ZINC

54603055051

$2.05

98

CHAIN GUIDE KIT EXC 14-15

78104070010

Unavailable

5

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

6

BRAKE HOSE GUIDE LOWER 07

77313047000

$5.23

7

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

8

Bucket f. shaft seal ring 03

54804034000

$5.23

9

radial shaft seal 25x32x7

0760253270

$6.63

10

BUSHING SLEEVE F. SWING ARM 03

54804032000

$10.93

11

NEEDLE BEARING HK 2216

58033097000

$14.02

12

STOP DISK 22,2X31,7X1

54603036000

$3.08

14

Chain cuide EXC

78104070100

$54.97

2

SWING ARM CPL. PDS 2011

51504030044

$665.38

3

CHAIN SLID.GUARD PDS

51504066000

$22.71

4

chain slider bushing

77304066050

$1.49

99

SWINGARM REPAIR KIT 05-15

54804230210

Unavailable
