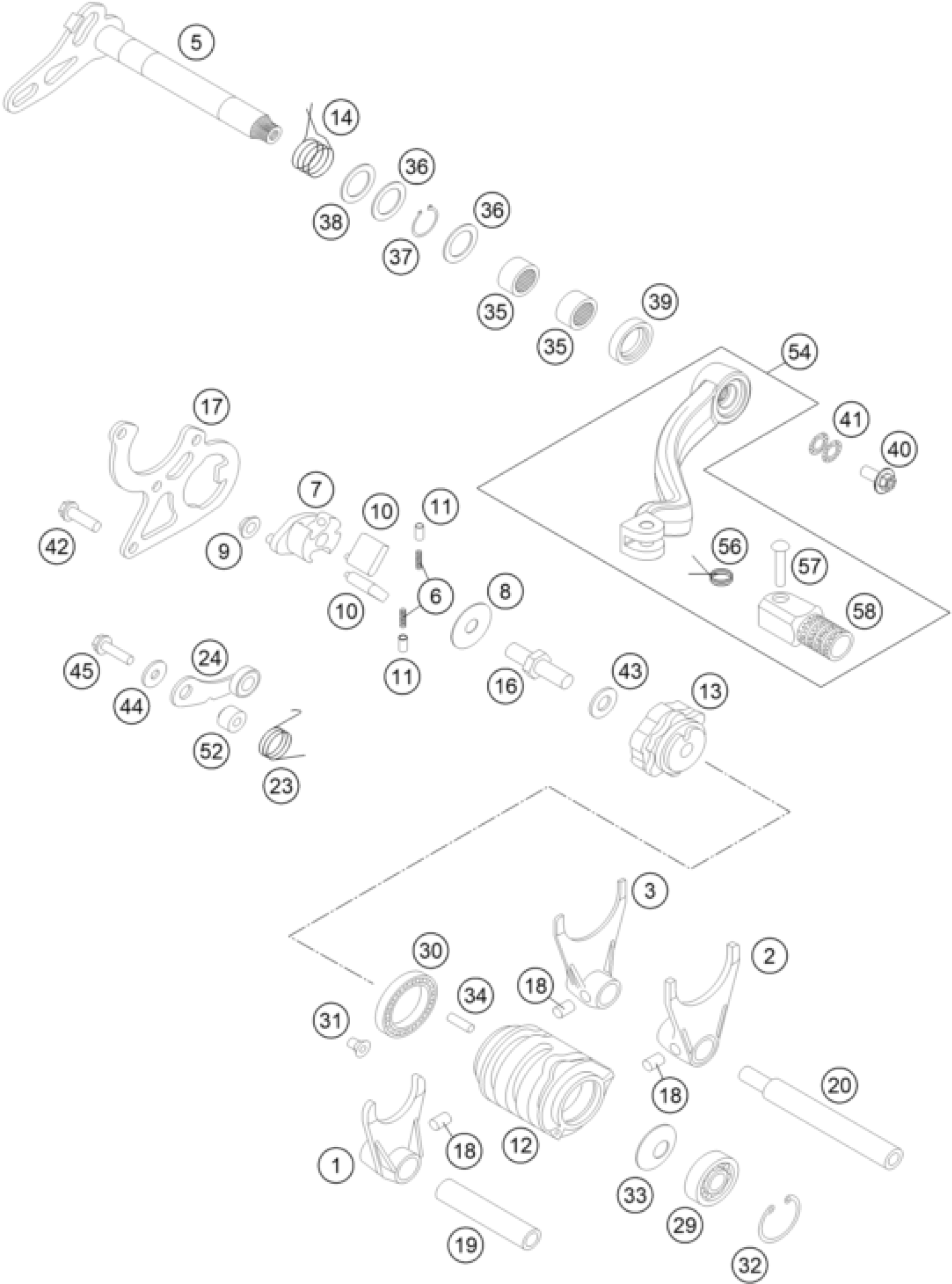

KTM 200 XC-W 2016 SHIFTING MECHANISM Diagram

SHIFTING FORK 5TH/6TH GEAR

50334001200

$54.69

SHIFTING FORK 2ND/4TH GEAR

50334002200

$57.59

SHIFTING FORK 1ST/3RD GEAR

50334003200

$54.88

SHIFTING SHAFT CPL.

50334005100

$83.26

Spring for ratchet 0.5X11.5

50334007052

$3.08

RATCHET SUPPORT 125/200'98

50334007000

$79.47

STOP DISK 8,2X26X0,7

50334007054

$4.11

BUSHING 6X8X12X4,5

50334007053

$6.72

SHIFTING RATCHET 125/200

50334007150

$10.00

PRESSURE END PAD 4,1X5,6X8,4

50334007051

$14.58

SHIFTING DRUM 06

50334012300

$112.47

LOCATING DRUM 125/200'98

50334013000

$84.98

RETURN SPRING 3MM

50334014000

$6.35

SPECIAL SCREW M8X21,5 WS=12

50334016000

$10.65

SHIFTING GATE 3MM 125/200'98

50334017000

$23.46

NEEDLE ROLLER ZRB 6X10

0402061000

$6.35

SHIFTING ROD DRIVE 11,8X67,5

50334019000

$9.62

SHIFT. ROD DRIVE END 11,8X94,5

50334020000

$26.45

LOCATING LEVER SPRING 2,5MM'98

50334023000

$4.11

LOCATING LEVER CPL. 08

50334024144

$14.58

BALL BEARING 6000 RS1 C3

0625060006

$20.94

BALL BEARING 61805 C3

0625618050

$43.94

Flat head screw DIN7991 M5X10

0991050102

$2.05

LOCK RING DIN0472-26X1,2

0472260120

$2.05

SPRING WASHER 12,2X25X0,9

0093251209

$3.08

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

needle sleeve HK 1412 14x20x12

54632095000

$7.00

STOP DISK 14,3X20X1

49033031000

$5.23

retaining ring DIN 471 14x1

0471140100

$1.49

STOP DISK 14,2X22X1,5

49033031015

$2.05

radial shaft seal 14x24x6 B

0760142460

$9.25

HH collar screw M6x15 TX30

0024060156S

$2.05

PAIR NORDLOCK WASHER M6

50233041500

$4.11

HH collar screw M6x16 TX30

0025060166

$3.08

washer DIN 125 A -8.4

0125080003

$1.49

WASHER DIN7349-5X15X2

0349000050

$1.49

HH collar screw M5x20 TX30

0025050206

$2.05

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

SHIFT LEVER CPL. 2-STROKE 2001

54734031000

$79.09

SHIFTING LEVER SPRING 250

54634032100

$3.08

BOLT 6X25 FOR SHIFT LEVER

54634031050

$7.85

STEP PLATE FOR SHIFT LEVER 250

54634131000

$31.59
