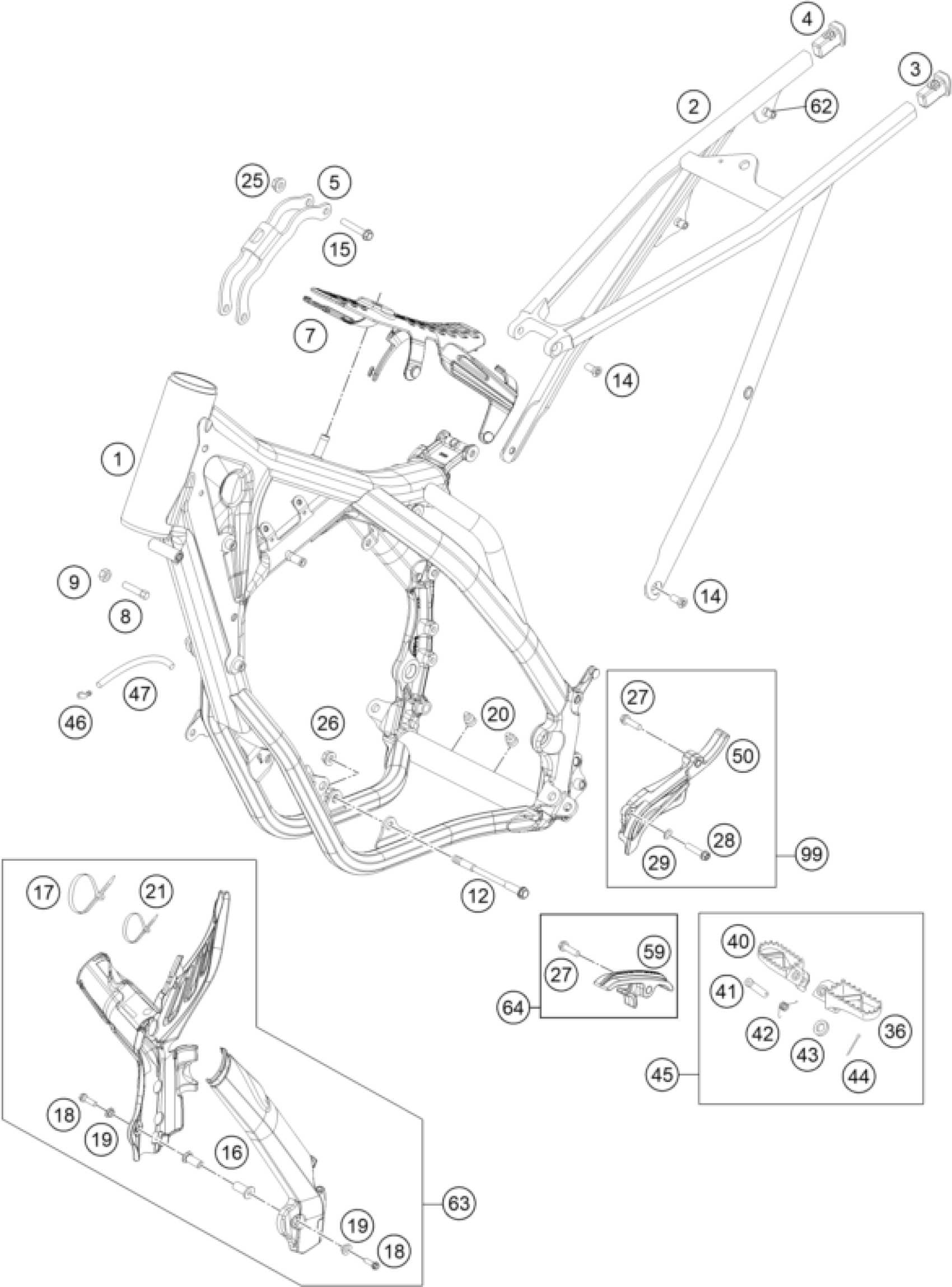

KTM 200 XC-W 2016 FRAME Diagram
#
Description
Price
1
FRAME ''515K4'' ORANGE
5150300110004
$1,467.86
4
SUB FRAME APPLICATION RIGHT
78103002020
$20.37
5
REINFORCING B. 200 EXC 12
52303513000
$21.96
7
TANK REST RUBBER
77207012000
$9.44
8
SPECIAL SCREW M8X26 WS=10
59001037000
$3.08
9
Hexagon nut DIN934 M8
0934080003
$2.05
12
engine brac.scr. M10x105 WS13
54603013000
$12.15
14
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
$2.05
15
HH COLLAR SCREW M8X44 WS13
56530079000S
$3.08
16
BLIND PLUG-IN NUT M5 WN 22A 03
54803092050
$5.23
17
CABLE TIE 300/4,8MM BLACK
44011076305
$2.05
18
COU.SUNK SCR. AH ISO7380 M5X25
0738050250
$1.49
19
Bush f. frame protection 03
54803092060
$4.11
20
PLASTIC CAP SFL10
54403135000
$2.05
21
CABLE TIE 140/2,5MM BLACK
44011076140
Unavailable
25
Hex. nut DIN EN 1661 M8 WS13
06923080003
$2.05
26
SELF LOCKING NUT M10 CU WS=14
54310086100
$2.05
27
HH collar screw M8x30
0025080306
$3.08
2
SUB FRAME SX
77203002000
$391.48
3
SUB FRAME APPLICATION LEFT
78103002010
$22.43
28
HH collar screw M6x40 TX30
0025060406
$3.08
29
WASHER DIN0125-A 6,4
0125060003
$1.49
36
FOOTREST L/S 08
78003040050
$43.66
40
FOOTREST R/S 08
78003041050
$43.66
41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
$12.43
42
FOOTREST SPRING L/S & R/S
54603041000
$5.23
43
washer DIN 125 A 10.5
0125100003
$2.05
44
PIN DIN0094-3,2X25 STEEL
0094032253
$1.49
45
FOOTREST L/S + R/S CPL. 09
78003040033
$116.02
46
ANGLE PIECE 90 DEGREE M10X1
51030022000
$5.23
47
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
50
SPROCKET COVER 250 SX 07
54803096000
$11.68
59
CHAIN SLIDER LOWER PART CPL.
77203053000
$9.06
62
BLIND RIVET NUT EM6-60LF/HX
77303139000
$4.11
63
PLASTIC FRAME PROTECTION SET
77203094000
$51.98
64
CHAIN SLIDING KIT BELOW CPL.11
77203053010
$18.78
99
SPROCKET COVER KIT
54803096010
$19.72
