Description

Price

4

STOP DISK 14,2X22X1,5

49033031015

$2.05

5

SIDE COVER R/S '98

50337005000

$3.08

6

GASKET SIDE COVER R/S

50337006000

$4.11

7

SIDE COVER LEFT M10 2002

50337007100

$4.11

8

GASKET SIDE COVER L/S

50337008000

$4.11

9

ANGLE PIECE 90 DEGREE M10X1

51030022000

$5.23

10

O-RING 8,00X2,00 NBR

0770008020

$1.49

11

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

12

NEEDLE ROL. DIN5402 NRB 5X15,8

0402051600

$3.08

13

HH collar screw M5x12 TX30

0025050126

$3.08

14

TUBE RUBBER 6X9 DVOH 200MM

50332095200

$7.94

15

CU-SEAL RING DIN7603-26X32X2

0603262322

$2.05

16

WASHER 5,2 X 12 X 3

50337050064

$3.08

17

HH collar screw M6x10 TX30

0025060106

$3.08

18

ECCENTRIC FOR CRANKBOLT 200'98

52337018044

$51.70

19

CRANK BOLT F.CONTROL FL.200'98

52337019000

$35.05

20

CONTROL FLAP 200 '98

52337020000

$100.60

21

AXLE FOR CONTRIL FLAP 01

51237021000

$38.42

22

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

24

CIRCLIP DIN0472-22X1

0472022100

$2.05

25

WASHER DIN2093-8,2X16X0,6

0093821606

$2.05

26

SPACER BUSHING 8X12X2,3

50337050063

$4.11

27

BALL BEARING 608 RS C3

0625006082

$8.50

28

O-RINGSTRING 4MM NBR 70 PER/M

00099300011

Unavailable

29

O-RING 16,00X3,00 NBR 70

0770160030

$2.05

30

SHEET METAL GUIDE 3MM 200'98

52337030000

$12.80

35

CLOSING COVER '98

50337035000

$3.08

36

CLOSING COVER GASKET 1MM

50337035050

$3.08

50

CENTRIFUGAL TIMER CPL. 200'98

52337050044

$203.45

51

BUSHING HOLDER M 26X1 '98

50337050062

$31.22

52

CLOSING NUT M 26X1 WS=30

50337050061

$10.84

57

CONTROL LEVER 125/200'98

50337057000

$56.56

59

CONTROL SHAFT M 6 WS=10 '98

50337059000

$7.85

61

CONTROL SHAFT CPL.L/S 200 2001

52337061144

$48.70

62

CONTROL SHAFT CPL.R/S 200 2001

52337062144

$53.57

64

HH collar screw M6x12 TX30

0025060126

$3.08

65

HH collar screw M5x12 TX30

0025050126

$3.08

66

LEVER F. CONTROL SEGMENT '98

50337066000

$15.33

67

CONTROL SHAFT SEGMENT 200'98

52337067000

$39.82

70

DRIVE WHEEL 26-T 125/200'98

50335054026

$6.63

71

BUSHING SUPPORT WATER PUMP '98

50335056000

$22.15

72

ROLLER GUIDE 5X6,1X8X4 '98

50337072000

$5.60

73

SHAFT SEAL RING 8X24X7 A DUO

0760082472

$7.66

74

BALL BEARING 6000/C3

0625060001

$13.83

75

O-RING 49,00X2,50 NBR

0770049025

$3.08

76

WATER PUMP SHAFT

50335054150

$18.60

78

WATER PUMP WHEEL 07

54835005000

$4.11

79

LOCK METAL SHEET 2MM '98

50337079000

$3.08

99

WATER PUMP REP. KIT SX 11-14

54835055115

Unavailable

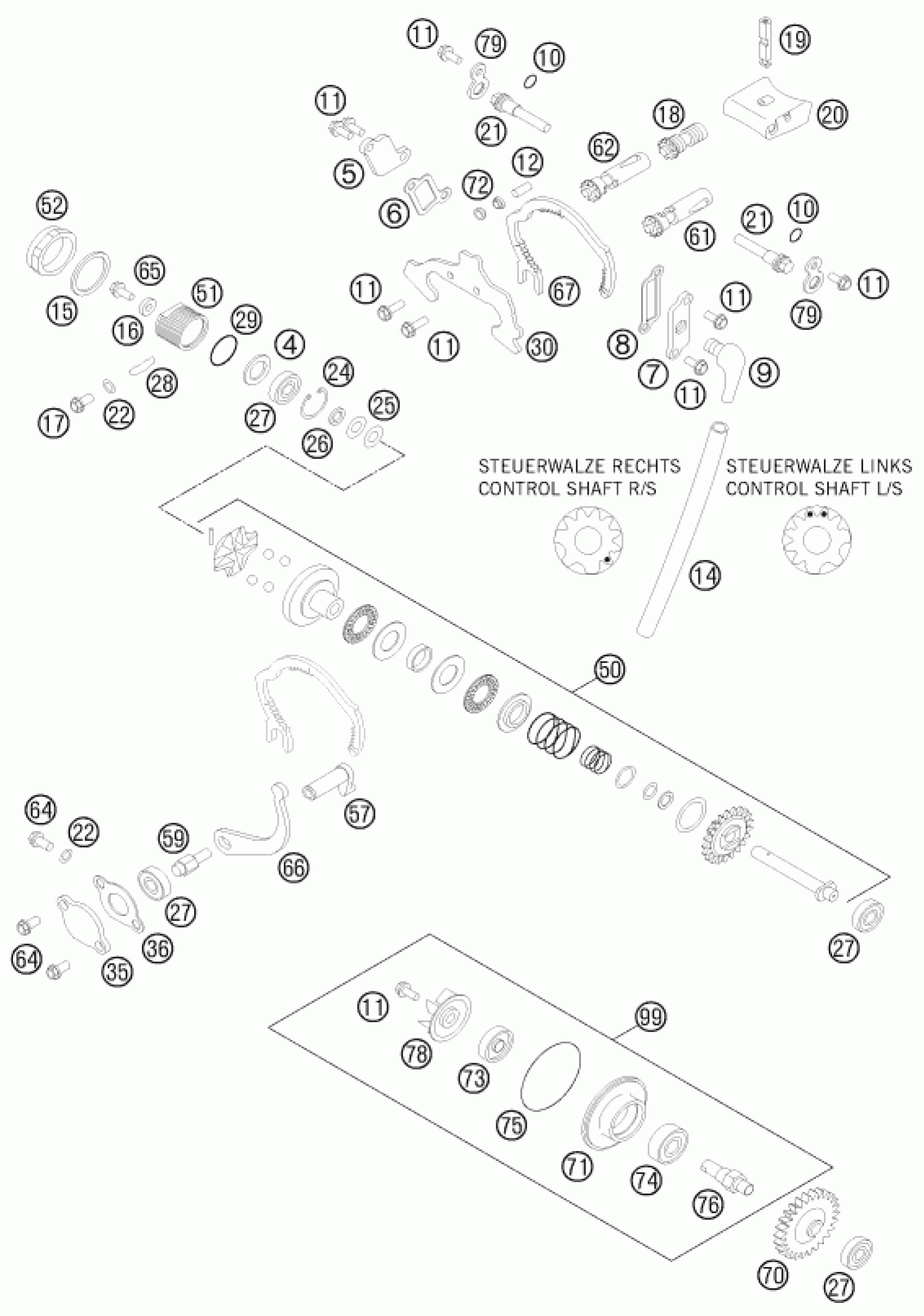

KTM 200 XC-W 2016 EXHAUST CONTROL Diagram

STOP DISK 14,2X22X1,5

SIDE COVER R/S '98

GASKET SIDE COVER R/S

SIDE COVER LEFT M10 2002

GASKET SIDE COVER L/S

ANGLE PIECE 90 DEGREE M10X1

O-RING 8,00X2,00 NBR

HH COLLAR SCREW M 5X12 WS=6

NEEDLE ROL. DIN5402 NRB 5X15,8

HH collar screw M5x12 TX30

TUBE RUBBER 6X9 DVOH 200MM

CU-SEAL RING DIN7603-26X32X2

WASHER 5,2 X 12 X 3

HH collar screw M6x10 TX30

ECCENTRIC FOR CRANKBOLT 200'98

CRANK BOLT F.CONTROL FL.200'98

CONTROL FLAP 200 '98

AXLE FOR CONTRIL FLAP 01

CU-SEAL RING DIN7603-6X10X1

CIRCLIP DIN0472-22X1

WASHER DIN2093-8,2X16X0,6

SPACER BUSHING 8X12X2,3

BALL BEARING 608 RS C3

O-RINGSTRING 4MM NBR 70 PER/M

O-RING 16,00X3,00 NBR 70

SHEET METAL GUIDE 3MM 200'98

CLOSING COVER '98

CLOSING COVER GASKET 1MM

CENTRIFUGAL TIMER CPL. 200'98

BUSHING HOLDER M 26X1 '98

CLOSING NUT M 26X1 WS=30

CONTROL LEVER 125/200'98

CONTROL SHAFT M 6 WS=10 '98

CONTROL SHAFT CPL.L/S 200 2001

CONTROL SHAFT CPL.R/S 200 2001

HH collar screw M6x12 TX30

HH collar screw M5x12 TX30

LEVER F. CONTROL SEGMENT '98

CONTROL SHAFT SEGMENT 200'98

DRIVE WHEEL 26-T 125/200'98

BUSHING SUPPORT WATER PUMP '98

ROLLER GUIDE 5X6,1X8X4 '98

SHAFT SEAL RING 8X24X7 A DUO

BALL BEARING 6000/C3

O-RING 49,00X2,50 NBR

WATER PUMP SHAFT

WATER PUMP WHEEL 07

LOCK METAL SHEET 2MM '98

WATER PUMP REP. KIT SX 11-14
