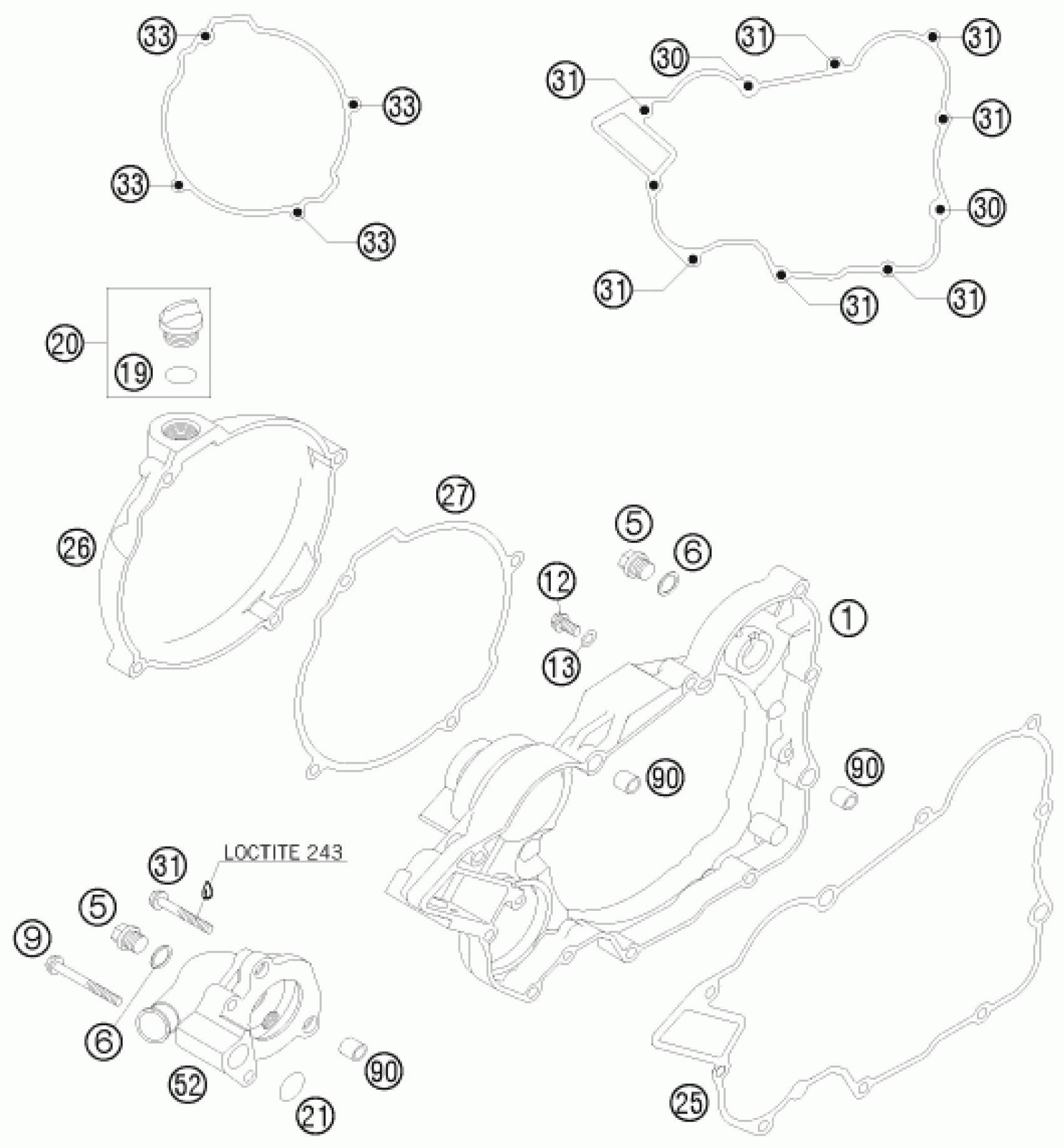

KTM 200 XC-W 2016 CLUTCH COVER Diagram

#

Description
Price

1

CLUTCH COVER CPL. 125/200 09

5033000114415

$199.80

27

CLUTCH OUTS.COVER GASKET 1MM

50330027000

$14.58

5

PLUG DIN0910-M 10X1

0910100003

$4.11

6

sealing ring DIN 7603 10x14x1

0603100141

$2.05

9

HH collar screw M6x50 TX30

0025060506

$3.08

12

HH collar screw M6x12 TX30

0025060126

$3.08

13

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

19

O-RING 19,00X3,00 NBR

0770191015

$2.05

20

OIL FILLER CAP M24x3 W. O-R

58030120000

$8.03

21

O-RING 16,00X3,00 NBR 70

0770160030

$2.05

25

CLUTCH COVER GASKET 0,5MM

50330025000

$15.14

26

CLUTCH OUTSIDE COVER

5033002610015

$82.18

30

HH collar screw M6x40 TX30

0025060406

$3.08

31

HH collar screw M6x35 TX30

0025060356

$3.08

33

HH collar screw M6x30 TX30

0025060306

$3.08

52

WATERPUMP COVER 125/200 98

50335052033

$83.86

90

DOWEL 9,8 X 7 X 10

49030090000

$2.05
