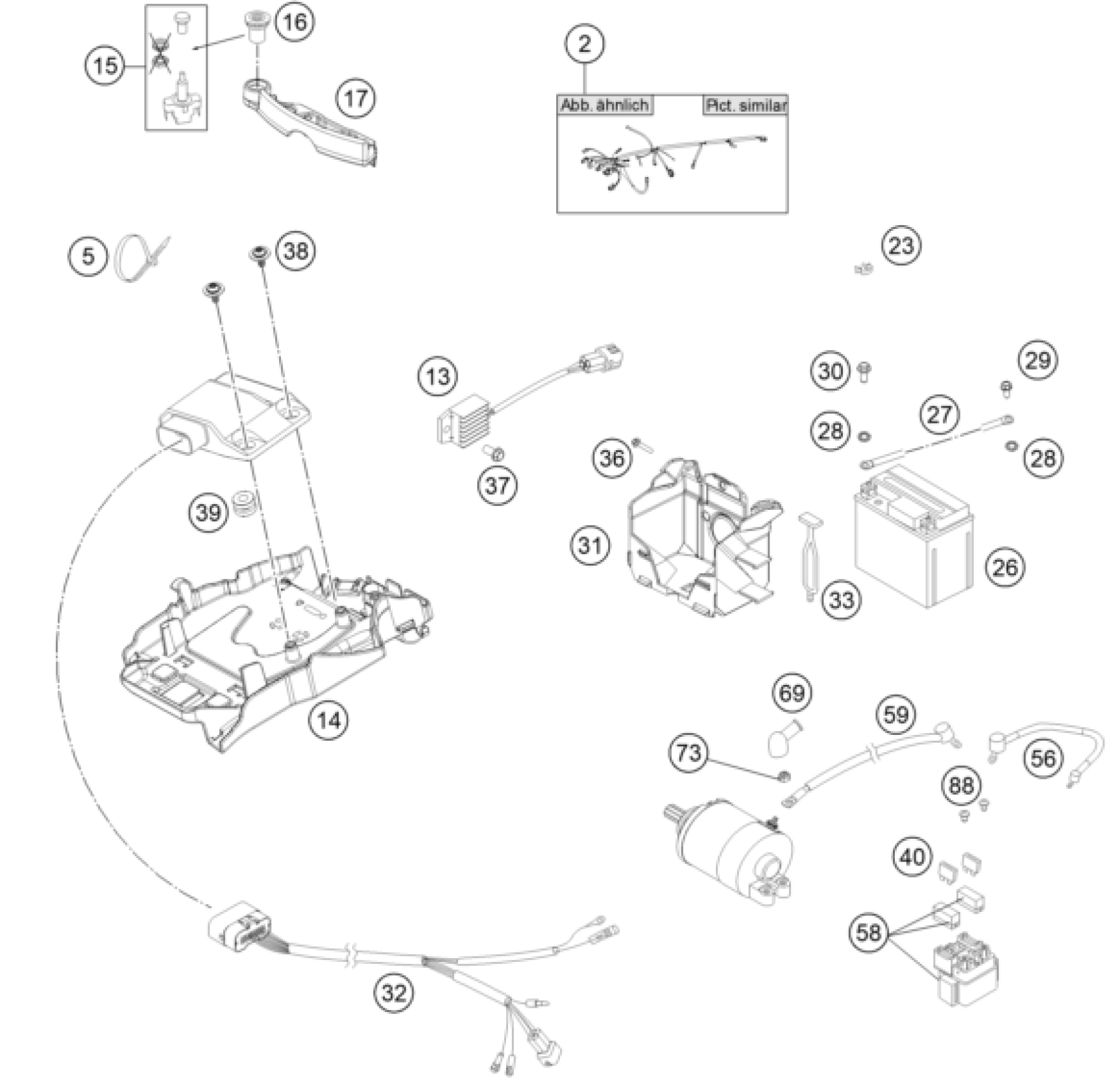

KTM 200 XC-W 2014 WIRING HARNESS Diagram

#

Description
Price

2

WIRING HARNESS 200/300 XC-W 14

54811075800

$131.55

5

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

5

Cable tie 200/4.6mm black

44011076200

Unavailable

5

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

13

VOLTAGE REGULATOR 04

80011034000

$99.57

14

ELECTRIC CASE

51511094100

$16.17

15

PULL SWITCH LOOSE

55011599000

$23.09

16

SPEC. NUT F. PULL SWITCH WS=17

54814060050

$5.51

17

SPEEDOMETER BRACKET XC-W 08

54814060100

$5.23

23

WIRING HOLDER 16MM

57013072100

Unavailable

26

BATTERY 12V 4AH YTX5L-BS

58511053000

$112.10

27

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

28

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

29

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

30

HH collar screw M5x12 TX30

0025050126

$3.08

31

BATTERY CASE

78111055000

$9.15

32

WIRING HARNESS FOR CDI 2-ST.07

54839032200

$78.53

33

RUBBER L=145MM

50303018000

$6.44

36

HH collar screw M6x12 TX30

0025060126

$3.08

37

COLLAR SCREW M6X13 ISA30

0026060136

$3.08

38

EJOT DELTA PT SCREW 45X12-Z

0081645121

$1.49

39

rubber grommet 16x10.8x3

58214069051

$5.23

40

Plug-in fuse, big 10A

58011109110

$2.05

56

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

58

Starter reley 12V 99

58211058000

$72.64

59

STARTERCABLE 1100MM 07

55111059000

$26.08

69

PROTECTION CAP F. STARTER ENG.

58440099000

$5.23

73

Self lock. nut DIN985-M6-A2

0985060003

$2.05

88

Oval head screw ISO 7380 M 6X8

0902060083

$1.49
