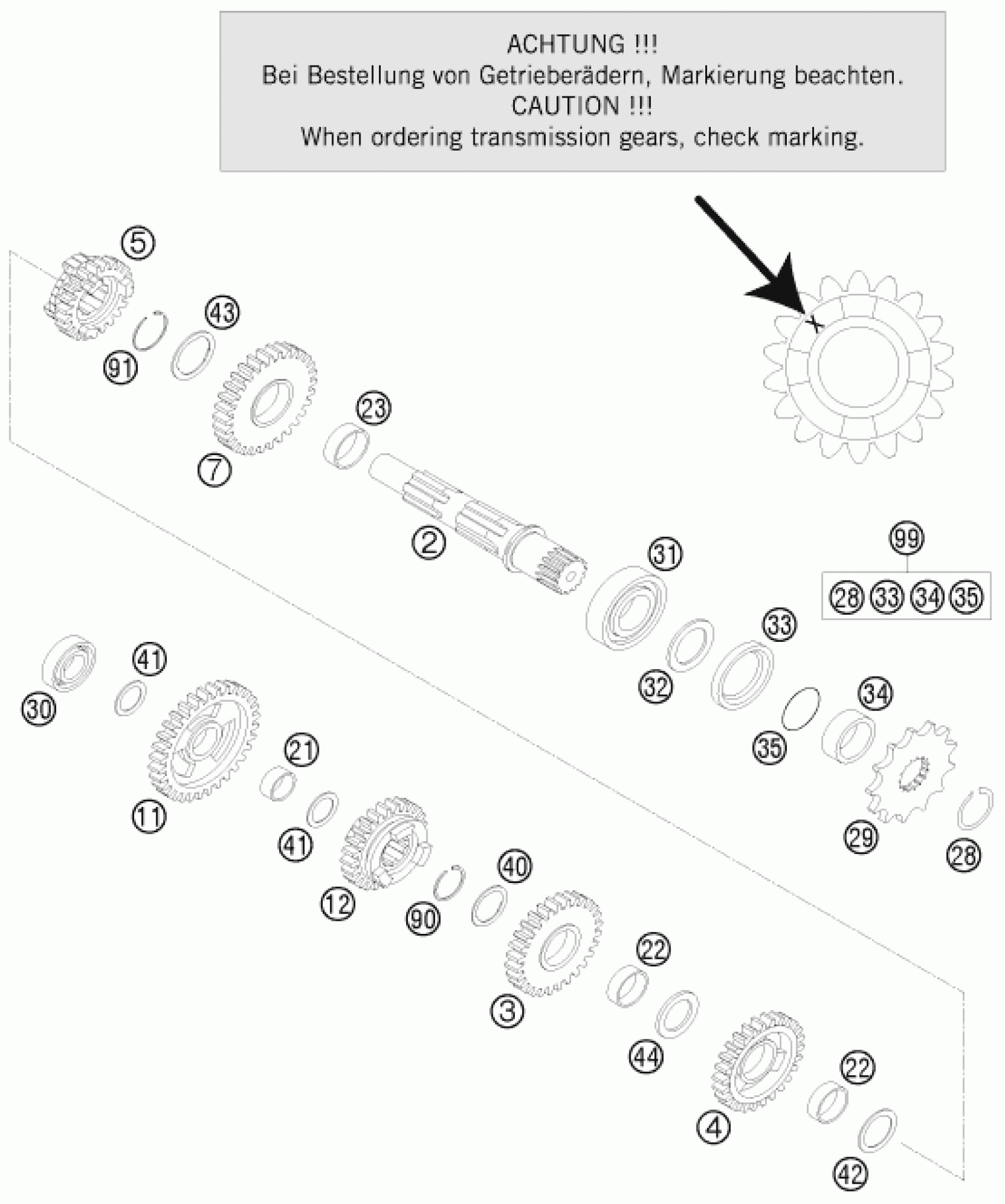

KTM 200 XC-W 2014 TRANSMISSION II - COUNTERSHAFT Diagram

COUNTER SHAFT 125/200 '98

50333002000

$194.85

IDLE G.3RD G.28-T ''3S28H''

50333003100

$99.10

IDLE G.4TH G.26-T ''4S26'' '

50333004000

$117.71

SLIDING GEAR 6TH G. ''6E20H''

50333005500

$106.21

IDLER G. 2ND G. 31-T ''2G31'''

50333006100

$100.69

IDLER G. 1ST G. 33-T ''1G33'''

50333011300

$106.86

SLIDING G.5TH G.19-T''5G19H''

52333012100

$97.86

IDLER GEAR BUSHING 17X20X9,7 B

50333021000

$21.59

IDLER GEAR BUSHING 22X25X8,1 C

50333022000

$21.12

IDLER GEAR BUSHING 25X28X9,7 D

50333023000

$28.23

LOCK RING DIN0471-25X1,64SD

52033096000

$5.23

FRONT SPROCKET 13-T

50033029013

Unavailable

FRONT SPROCKET 14-T

50033029014

$30.94

BALL BEARING 6003 TN9 C4

0625060031

$23.46

BALL BEARING 6205 C3 NTN

0625062054

$20.66

STOP RING

56033020000

$6.91

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

$5.23

SPACER BUSHING 12MM

54633014100

$20.94

O-RING 23,00X2,00 NBR70

0770230020

$2.05

STOP DISC 22,2X27,8X1 A

50333040000

$5.23

STOP DISC 17,2X26X1 B

50333041000

$3.08

STOP DISK 22,2X28X1 C

50333042000

$5.23

STOP DISC 25,2X32X1

50333043000

$3.08

STOP DISC 22,2X30X2,5

50333044000

$6.26

LOCK RING 22X1,2

50133090000

$2.05

CIRCLIP SW25

0417025000

$3.08

COUNTER SHAFT REP.KIT 125-200

00050000943

Unavailable
