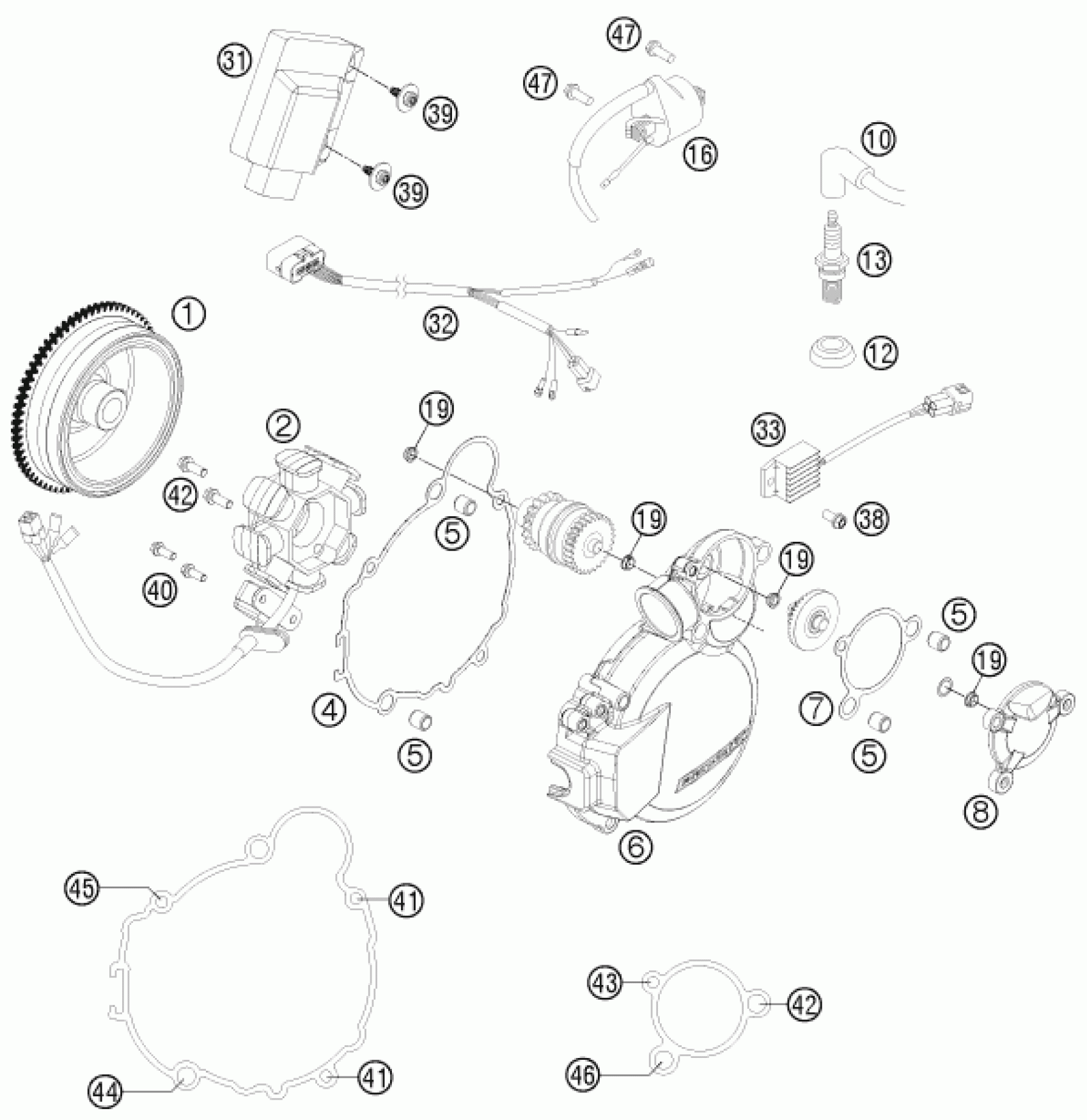

KTM 200 XC-W 2014 IGNITION SYSTEM Diagram

#

Description
Price

6

IGNITION COVER E-START

52430002000

$130.05

1

FLYWHEEL KOKUSAN

55139005000

$410.36

2

STATOR KOKUSAN

55139004000

$171.28

4

GASKET IGNITION COVER E-START

52430040000

$9.44

5

DOWEL 9,8 X 7 X 10

49030090000

$2.05

7

GASKET IGNITION COVER OUTSIDE

52430041000

$4.11

8

IGNITION COVER OUTSIDE E-START

52430045000

$31.97

10

SPARK PLUG CAP NGK REINFORC.04

47039090000

$31.44

12

SEALING CUP FOR SPARK PLUG

50231012000

$4.11

13

SPARK PLUG BR8EG

54331093310

$7.56

16

IGNITIONCOIL ''IG5128''

59039006000

$66.19

19

COLLAR BUSHING

55140030100

$3.08

31

ELEKTRONICBOX 200 XC/EXC 12

52339131100

$325.18

32

WIRING HARNESS FOR CDI 2-ST.07

54839032200

$78.53

33

VOLTAGE REGULATOR 04

80011034000

$99.57

38

COLLAR SCREW M6X12 TX

0023060123

$2.05

39

EJOT DELTA PT SCREW 45X12-Z

0081645121

$1.49

40

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

41

HH collar screw M6x20 TX30

0025060206

$3.08

42

HH collar screw M6x25 TX30

0025060256

$3.08

43

HH collar screw M6x30 TX30

0025060306

$3.08

44

HH collar screw M6x35 TX30

0025060356

$3.08

45

HH collar screw M6x55 TX30

0025060556

$3.08

46

HH COLLAR SCREW M6X75 TX30

0025060756

$3.08

47

COLLAR SCREW M6X18 ISA30

0026060186

$1.49
