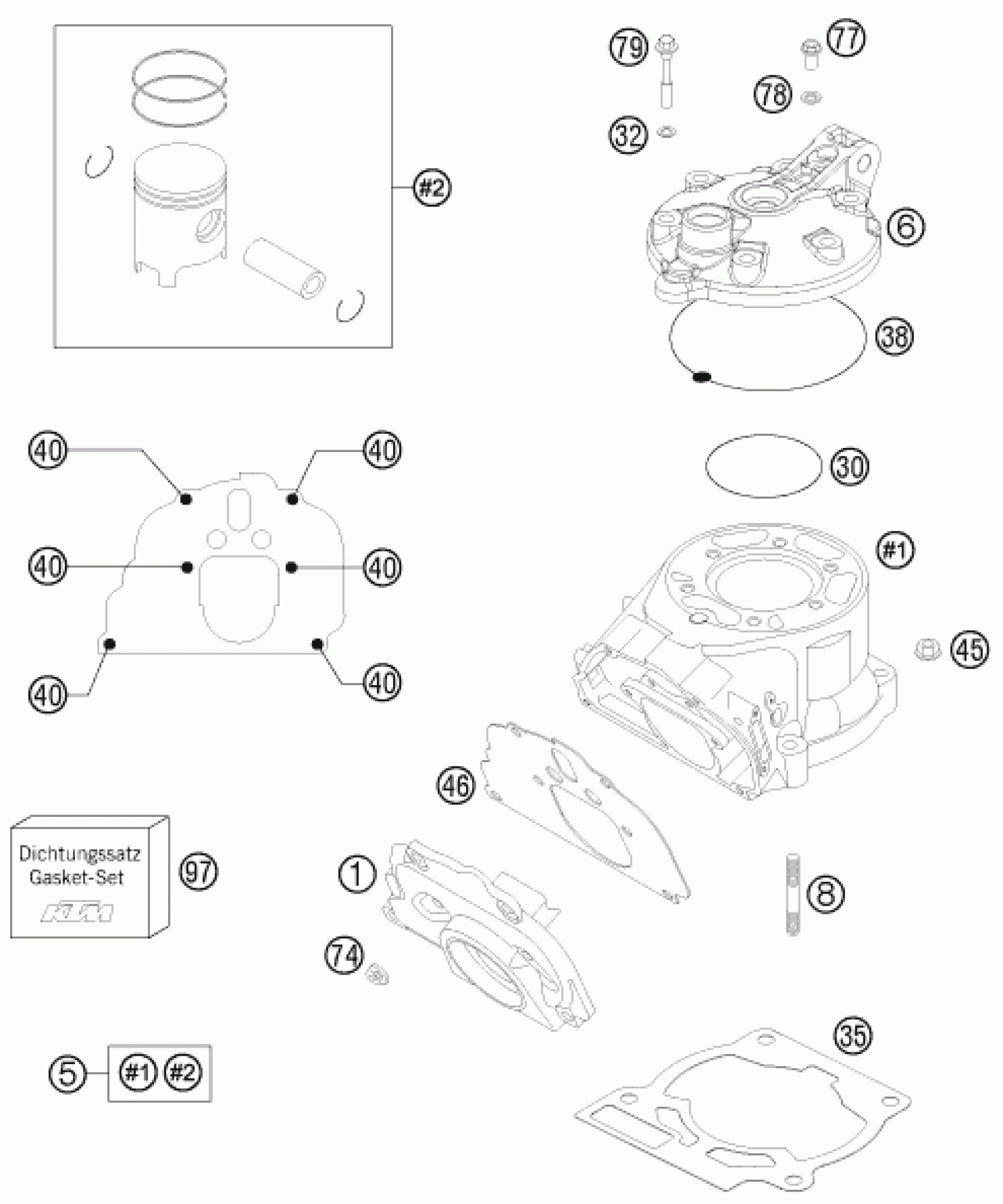

KTM 200 XC-W 2014 CYLINDER, CYLINDER HEAD Diagram

INTERMEDIATE FLANGE 200 2000

52337001200

$89.19

CYLINDER + PISTON CPL.

52330038300

$1,099.83

CYLINDER HEAD EXC 200 MOD. 13

52330006300

$172.88

STUD DIN0835-M 8X35 10.9

0835080355

$3.08

O-RING 72,00X2,00 VITON

0770720021

$5.70

CU-SEAL RING DIN7603- 7,3X12X1

0603070121

$1.49

CYLINDER BASE GASKET 0,20MM

50330035020

Unavailable

CYLINDER BASE GASKET 0,25MM

50330035025

Unavailable

CYLINDER BASE GASKET 0,40MM

50330035040

Unavailable

CYLINDER BASE GASKET 0,50MM

50330035050

Unavailable

CYLINDER BASE GASKET 0,75MM

50330035075

Unavailable

CYL.HEAD SEAL RING 200 2003

52330137000

$12.61

HH COLLAR SCREW M 5X20 WS=6

0014050203

$3.08

HH COLLAR NUT M 8 WS=12

50330045000

$2.05

INTERMED.GASKET 1,1MM 200 2000

52337046100

$9.53

RETAINING PLATE

51005074000

$3.08

HH collar screw M6x10 TX30

0025060106

$3.08

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

CYL. HEAD BOLT M 7X40 WS=10

50030079000

$9.90

GASKET SET CYL. 125/200 98-11

50330097000

$112.10
