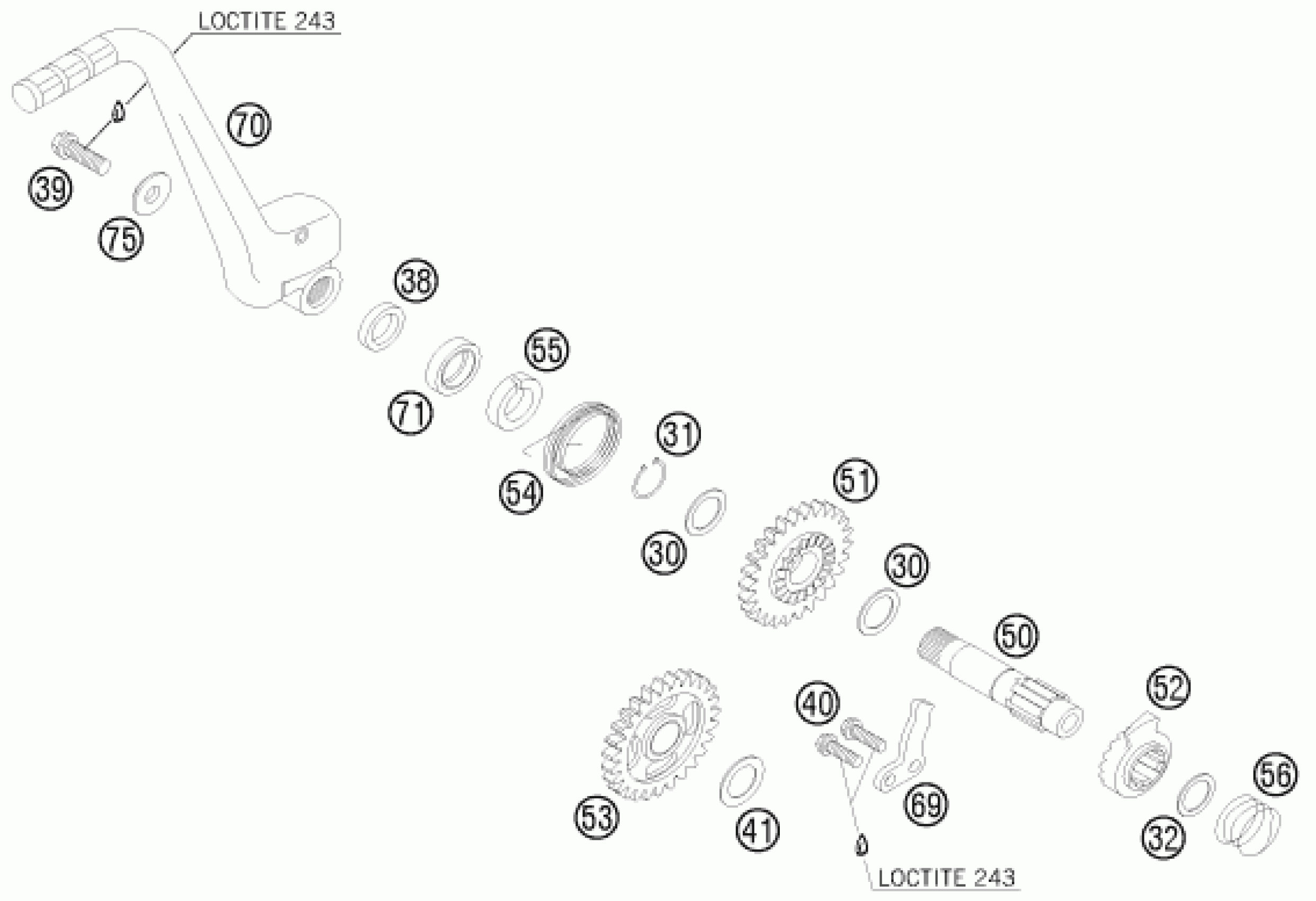

KTM 200 XC-W 2013 KICK STARTER Diagram

STOP DISK 17,2X24X1

50333030000

$5.23

CIRCLIP DIN0471-17X1

0471170010

$2.05

THRUST WASHER DIN0988-16X22X1

0988162210

$2.05

SPACER BUSHING 16X23X26X6,1

50333038100

$8.13

HH collar screw M8x20

0025080206

$2.05

HH collar screw M6x16 TX30

0025060166

$3.08

STOP DISC 17,2X26X1 B

50333041000

$3.08

KICKSTARTER SHAFT 125/200'98

50333050000

$96.39

KICKSTART.GEAR 26-T 125/200'98

50333051026

$115.56

KICKSTARTER RATCHET

50333052000

$101.63

INTERMEDIATE GEAR 27-T 04

50333053127

$74.79

KICKSTARTER SPRING 2,6MM '98

50333054000

$9.06

DRIVING HUB 125/200'98

50333055000

$5.79

SPRING 1,4MM '98

50333056000

$3.08

STOP MET.SHEET 4MM 125/200'98

50333069000

$15.98

KICK STARTER CPL.

50333070244

$199.80

SHAFT SEAL RING 17X28X7 B

0760172870

$8.03

WASHER 8,2X22X4,5 '98

50333075000

$5.79
