Description

Price

11

HH collar screw M6x20 TX30

0024060206

$3.08

14

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

1

START NUMBER PLATE CPL. WHITE

7730800704428

$26.64

3

BRAKE HOSE GUIDE BLACK 08

7730802200030

$7.47

4

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

5

HH collar screw M6x50 TX30

0025060506

$3.08

6

HH collar screw M5x16 TX30

0025050166

$2.05

7

FRONT FENDER 07

7730801000004

$30.94

9

SPACER BUSHING 03

54808020000

$4.11

20

REAR PART ORANGE

7810801300004

$72.17

22

COLLAR NUT M12X1/WS17 H=5MM

50314057050

$6.63

23

BUSHING FOR SEAT FASTENING 03

54807048000

$10.65

24

HH collar screw M6x25 TX30

0025060256

$3.08

2

Washer DIN9021-A 6.4

0021060003

$2.05

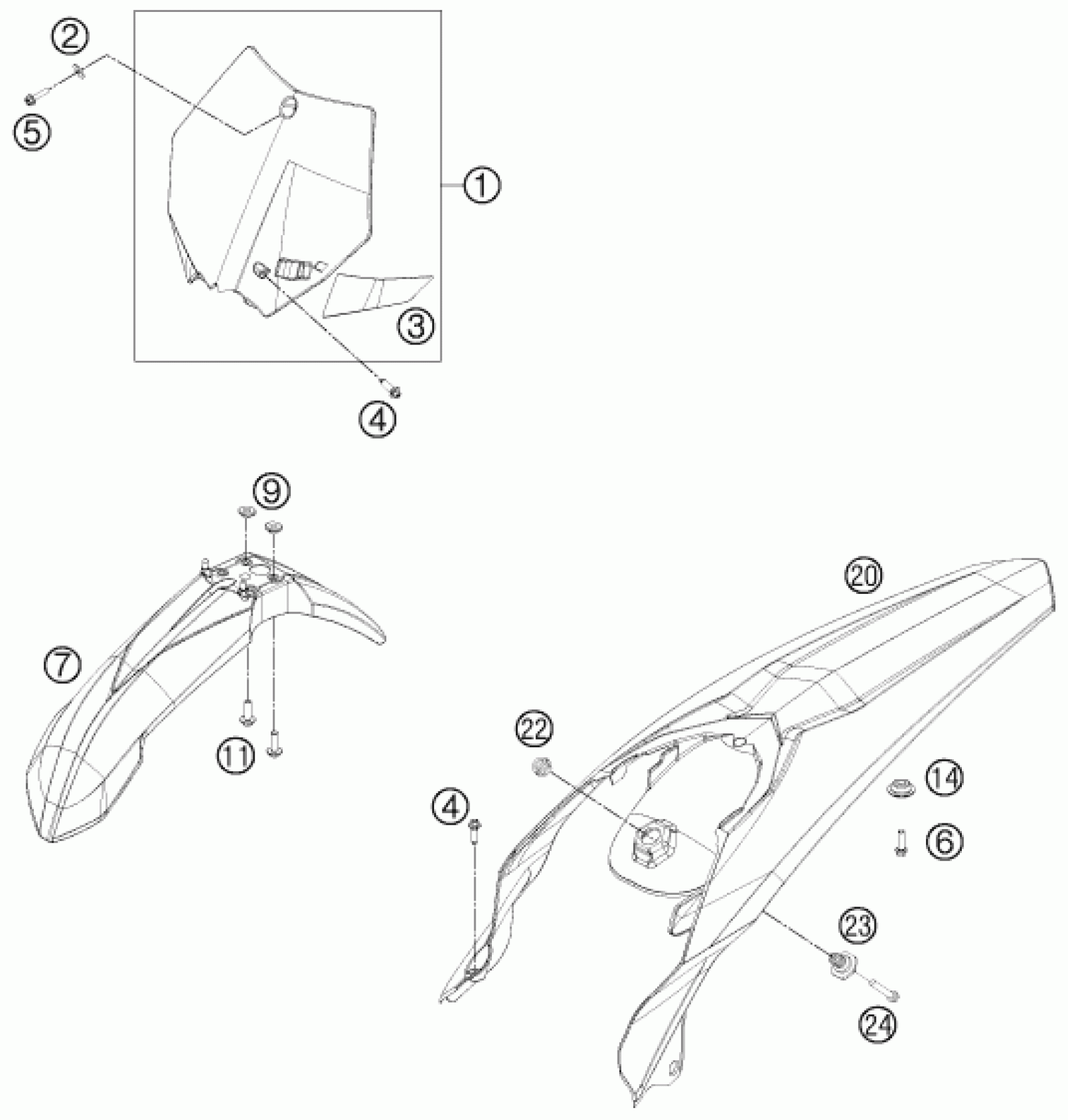

KTM 200 XC-W 2012 MASK, FENDERS Diagram

HH collar screw M6x20 TX30

COLLAR BUSH. F.REAR FENDER 07

START NUMBER PLATE CPL. WHITE

BRAKE HOSE GUIDE BLACK 08

EJOT PT SCREW K60X20 ALU WS=6

HH collar screw M6x50 TX30

HH collar screw M5x16 TX30

FRONT FENDER 07

SPACER BUSHING 03

REAR PART ORANGE

COLLAR NUT M12X1/WS17 H=5MM

BUSHING FOR SEAT FASTENING 03

HH collar screw M6x25 TX30

Washer DIN9021-A 6.4
