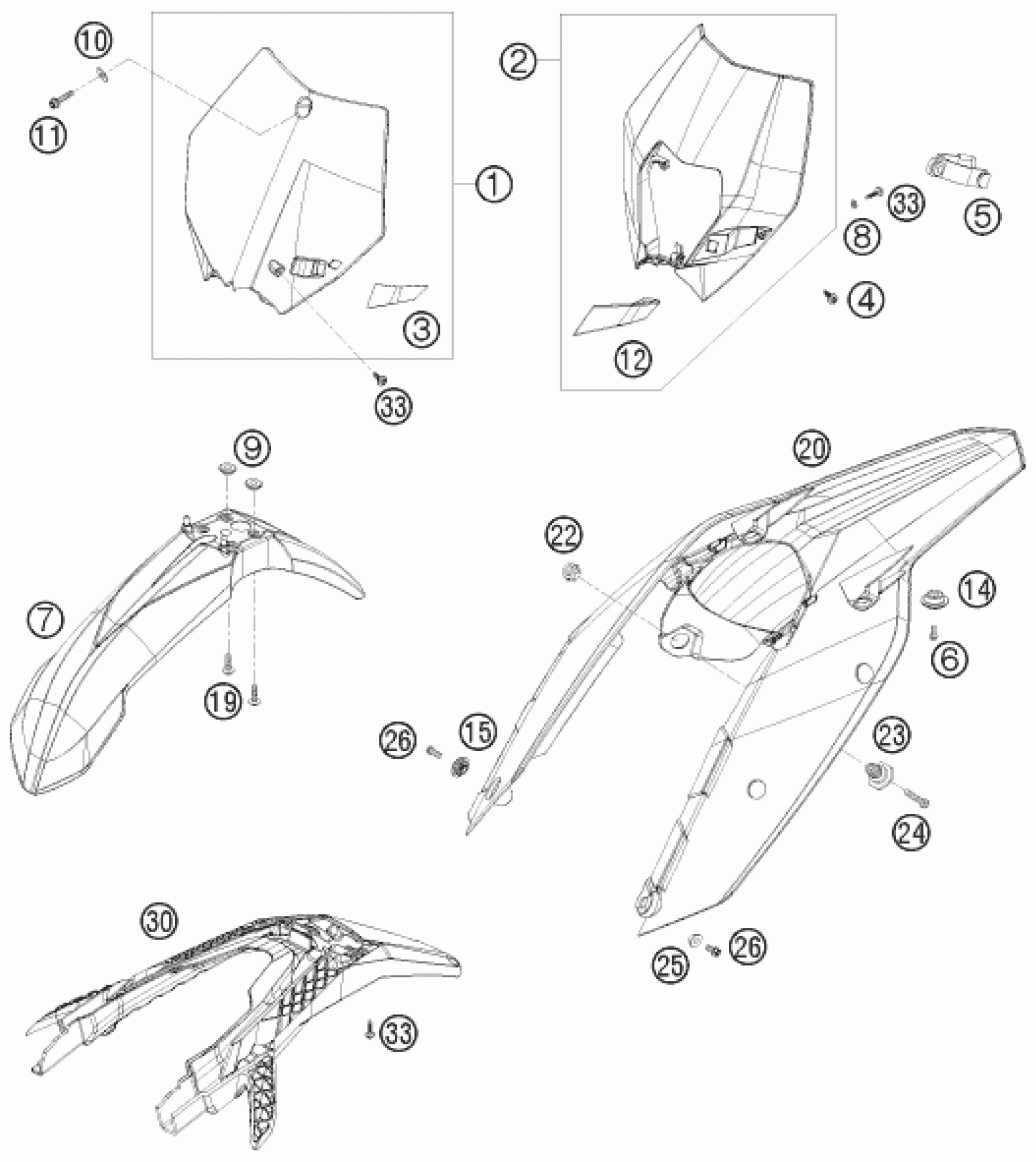

KTM 200 XC-W 2009 MASK, FENDERS Diagram

#

Description
Price

1

START NUMBER PLATE ORANGE 07

7730800704404

$20.74

2

HEAD LIGHT MASK ORANGE 08

7800800100004

$26.34

3

BRAKE HOSE GUIDE ORANGE 07

7730802200004

$7.47

4

SCREW FOR PLASTIC D=5X18

0081500181

$2.05

5

MASK RUBBER UFO WP '95

50211086000

$8.03

6

HH collar screw M5x16 TX30

0025050166

$2.05

7

FRONT FENDER 07

7730801000004

$30.94

9

SPACER BUSHING 03

54808020000

$4.11

10

Washer DIN9021-A 6.4

0021060003

$2.05

11

HH collar screw M6x35 TX30

0025060356

$3.08

12

BRAKE HOSE GUIDE ORANGE 08

7800802200004

$5.23

14

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

15

COLLAR BUSHING 4,5/12,6/23

77306001030

$5.23

20

REAR PART EXC ORANGE 08

7800801300004

$67.03

22

COLLAR NUT M12X1/WS17 H=5MM

50314057050

$6.63

23

BUSHING FOR SEAT FASTENING 03

54807048000

$10.65

24

HH collar screw M6x25 TX30

0025060256

$3.08

25

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

26

HH collar screw M6x20 TX30

0025060206

$3.08

30

NUMBER PL. CARRIER TOP PART 08

78008016000

$20.66

33

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

19

HH collar screw M6x20 TX30

0024060206

$3.08

34

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

8

WASHER DIN0125-A 6,4

0125060003

$1.49
