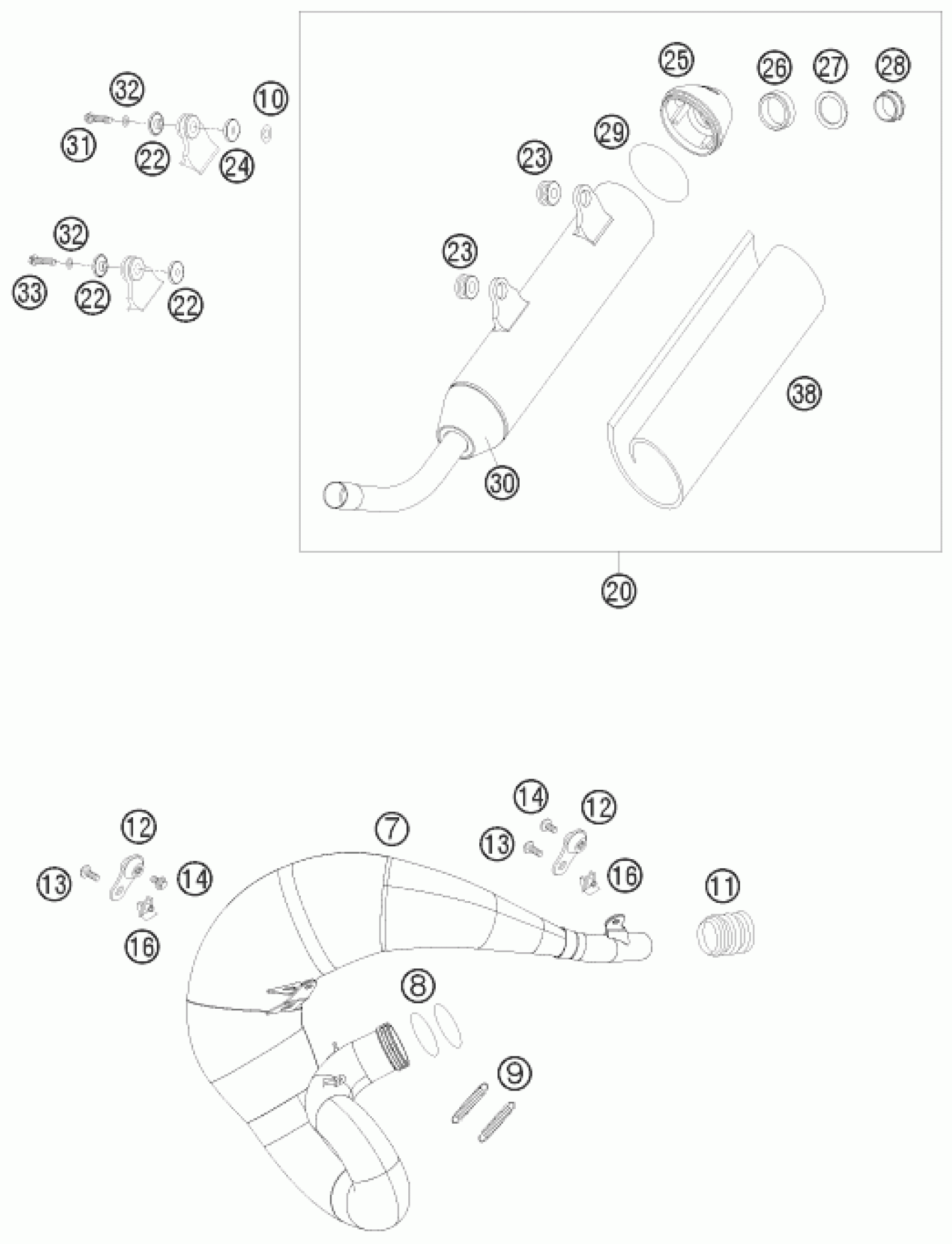

KTM 200 XC-W 2009 EXHAUST SYSTEM Diagram

#

Description
Price

7

EXHAUST PIPE CPL. NICKEL 06

52305008400

$280.64

8

O-RING 44,00X3,00 VITON

0770440030

$4.11

9

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

11

SILICON SLEEVE D=25/27MM

54605157000

$32.53

12

Silent block for exhaust pipe

50305012000

$19.91

13

HH collar screw M6x15 TX30

0024060156

$3.08

14

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

16

clip nut M6

54603048100

$4.11

20

EXH. SILENCER CPL. EXC 06

54805083100

$299.12

22

BUSHING 7.5x12x28x7.6 07

77305069000

$6.07

23

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

24

BUSHING SIL.-SMR REAR 2004

59405169000

$6.18

25

SILENCER ENDCAP 2-STROKE 2004

54805079052

$38.16

26

SILCENCER RUBBER 2-STROKE 2005

54805079150

$14.95

27

SILENCER DISC 2004

54805083060

$4.11

28

SILENCER SCREW 2-STROKE 2004

54805079058

$7.39

29

0-RING 55,00X2,00 NBR70

0770055020

$2.05

30

SILENCER CONNECTING-CAP 2004

54805079060

$20.88

31

HH collar screw M6x35 TX30

0025060356

$3.08

32

spring washer DIN 137 B - 6

0137060003

$2.05

33

HH collar screw M6x30 TX30

0025060306

$3.08

38

STUFFING YARN-SET 450 GRAM 04

54805078450

$70.86

10

WASHER 6 X 12 X 3

12011016000

$1.49
