Description

Price

27

RADIATOR HOSE 18X25 125/200'98

50335027000

$16.45

8

RADIATOR RIGHT ''VW1596'' 08

54835008200

$330.14

9

RADIATOR CAP SMALL 20,3 PSI

58035016000

$25.70

19

T-CONNECTOR CPL. ´07

77335026000

$53.57

20

HOSE CLAMP GEMI 18-29

10001020000

$2.05

21

HOSE CLAMP NORMA 12/22

42013037300

$2.05

23

ANGLE PIECE '97

50303089000

$5.23

24

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

25

RADIATOR H. 200 W. THERM.55 08

52335426033

$100.99

26

THERMOSTAT 55°C 2004

54835017000

$42.25

31

O-RING 32,00X2,00

0770320020

$2.05

32

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

34

RADIATOR PROTECTION BLACK 07

7733503400030

$10.74

35

HOSE CONNECTOR 2 STROKE 07

54835072000

$24.21

40

RUBBER SLEEVE D=12MM

41001052000

$4.11

41

WASHER FOR RADIATOR 08

77335001000

$2.05

42

COLLAR SCREW M6X12 TX

0023060123

$2.05

7

RADIATOR LEFT ''VW1595'' 08

54835007200

$225.98

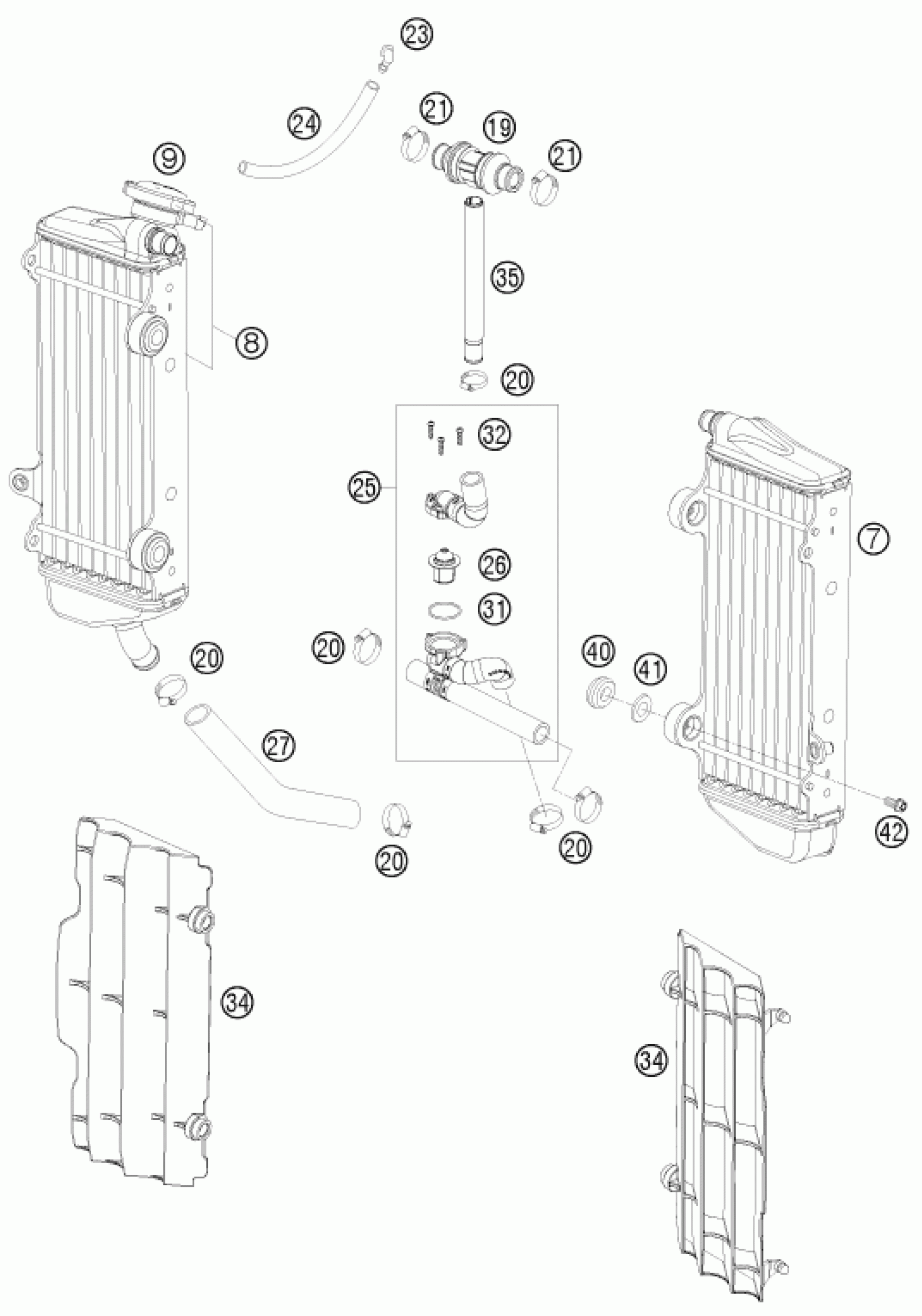

KTM 200 XC-W 2009 COOLING SYSTEM Diagram

RADIATOR HOSE 18X25 125/200'98

RADIATOR RIGHT ''VW1596'' 08

RADIATOR CAP SMALL 20,3 PSI

T-CONNECTOR CPL. ´07

HOSE CLAMP GEMI 18-29

HOSE CLAMP NORMA 12/22

ANGLE PIECE '97

PVC-HOSE 6X9 MM PER METER

RADIATOR H. 200 W. THERM.55 08

THERMOSTAT 55°C 2004

O-RING 32,00X2,00

SCREW FOR PLASTIC D=4X18

RADIATOR PROTECTION BLACK 07

HOSE CONNECTOR 2 STROKE 07

RUBBER SLEEVE D=12MM

WASHER FOR RADIATOR 08

COLLAR SCREW M6X12 TX

RADIATOR LEFT ''VW1595'' 08
