Description

Price

1

HAND BRAKE CYLINDER CPL. SX 06

54813001200

$227.20

9

HANDBRAKE CYL.COVER CPL.NATURE

50313003000

$24.68

10

REP.SET PISTON D=10MM 2006

54813008200

$43.19

11

CLAMP CPL. NATURE

50313005000

$26.08

12

HH collar screw M6x25 TX30

0025060256

$3.08

15

LEVER SCREW CPL. 2001

50313006100

$12.61

20

HAND BRAKE LEVER + SPRING 2006

54813002100

$30.94

21

ADJUSTING SCREW CPL. EXC 2006

54813007200

$16.33

23

PROTECTION CAP HAND BRAKE CYL.

50313004000

$12.61

32

sealing ring DIN 7603 10x14x1

0603100141

$2.05

80

Brake fluid DOT5.1 0,25L

00062030000

$12.52

30

BRAKEHO. FRONT 1300MM 2000

59013011000

$121.64

31

HOLLOW SCREW M10X1X19

50213025000

$6.54

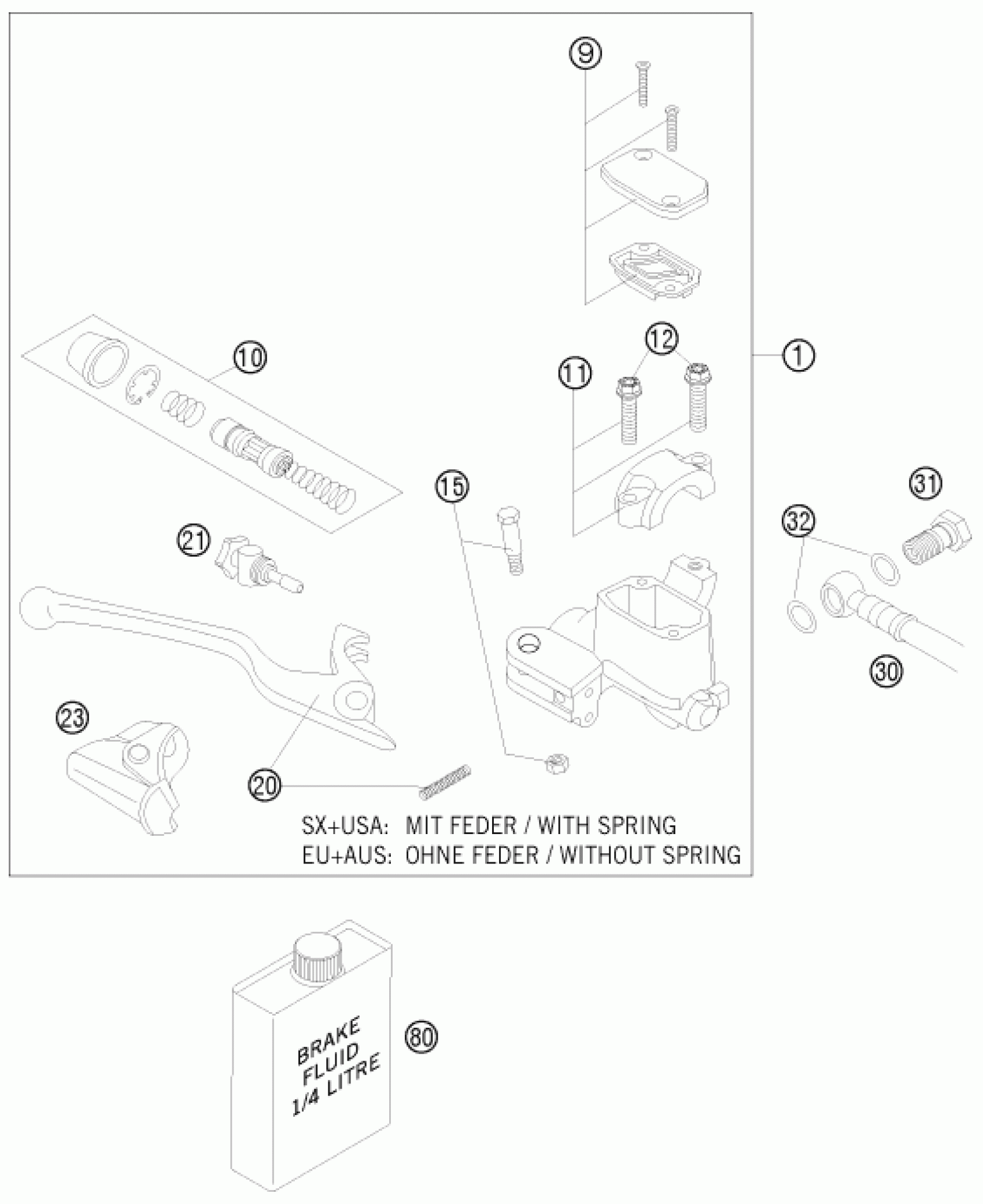

KTM 200 XC 2009 FRONT BRAKE CONTROL Diagram
