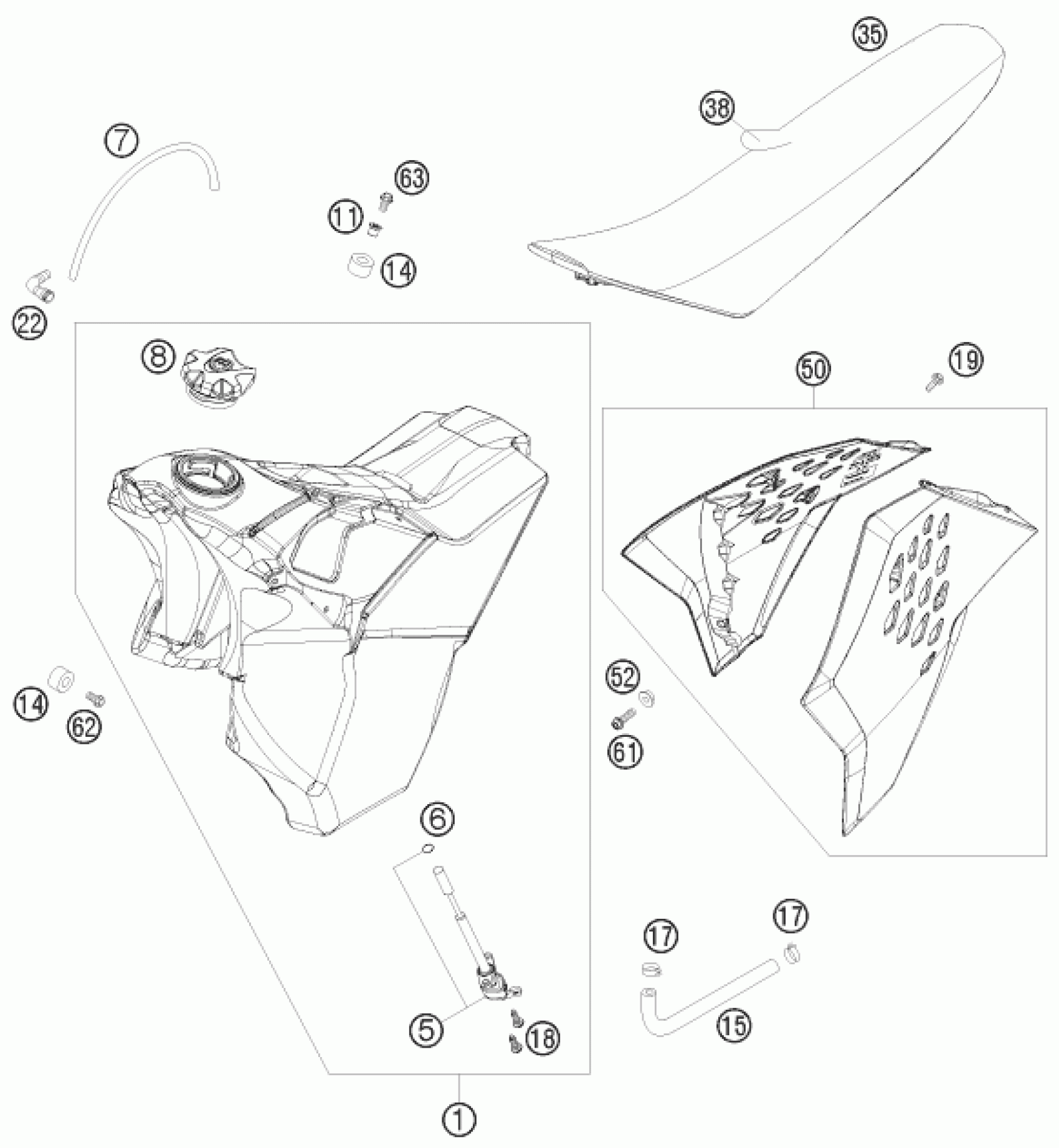

KTM 200 XC 2008 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL. BL. 11L 2T XC08

5480721306630

$305.43

5

GAS COCK ON/OFF/RES 03

54807004000

$32.72

6

O-RING 11X2 VITON

0770110021

$2.05

8

TANK PLUG ORANGE/BLACK

7800700804404

$29.07

11

TANK BUSHING 07

77307026000

$4.11

14

TANK ROLLER 12X26X12 '98

50307014000

$11.02

15

FUEL PREFORMED HOSE SX 2001

50307016000

$8.87

17

CLAMP YDNAC 10128 12MM

58031005000

$3.08

18

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

50

SPOILER KIT BLACK XC 2008

7730805400030C

Unavailable

19

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

22

ANGLE PIECE 90 DEGREE M10X1

51030022000

$5.23

35

SEAT SX 07

77307040000

$153.80

38

SEAT COVER 07

77307040050

$54.22

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

61

HH collar screw M6x20 TX30

0025060206

$3.08

62

HH collar screw M6x16 TX30

0025060166

$3.08

63

COLLAR SCREW M6X27 TX

0024060273

$3.08

7

PVC-hose 5.6X10X270MM

78007000270

$2.61
