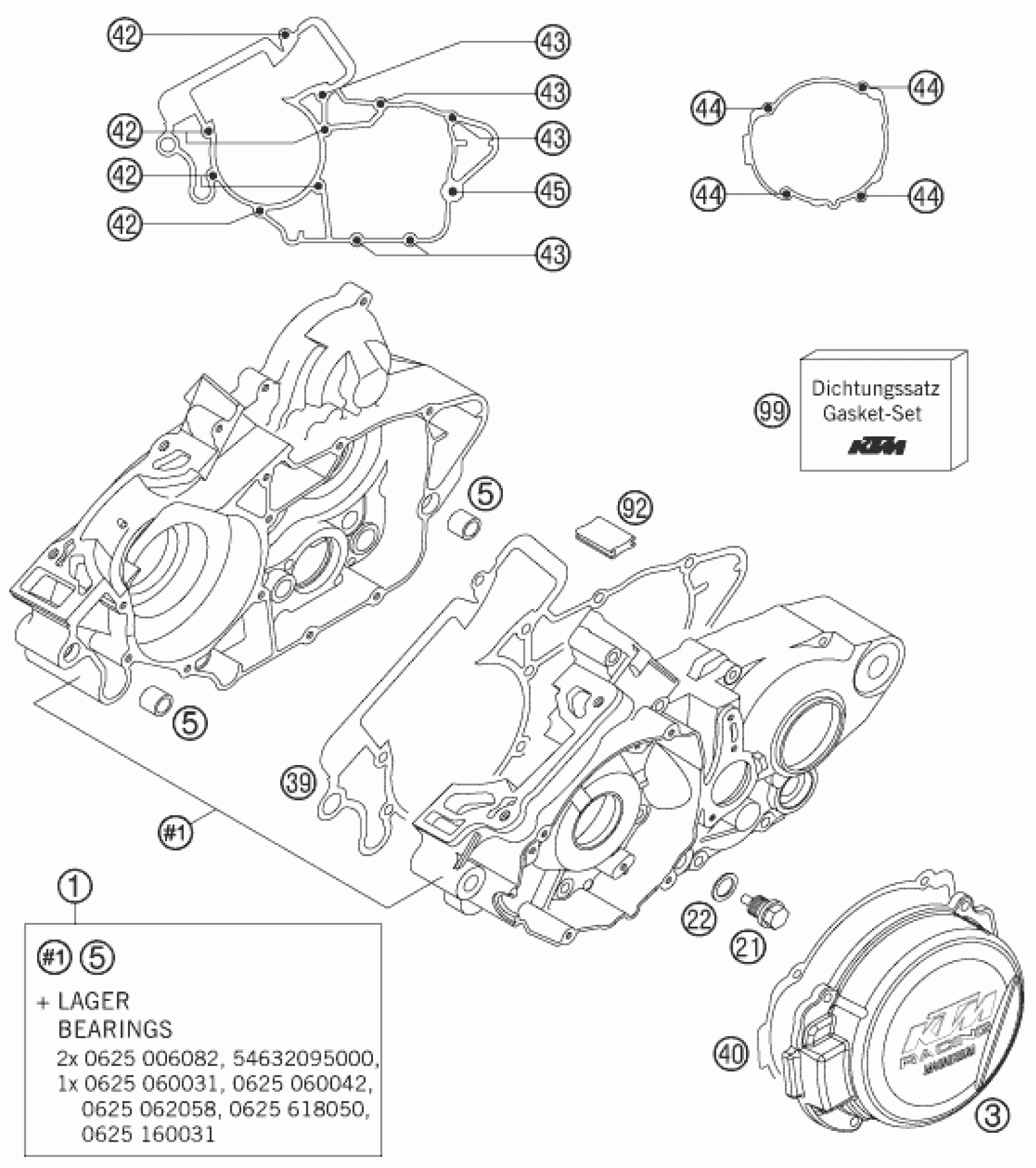

KTM 200 XC 2007 ENGINE CASE Diagram

ENGINE CASE CPL M.TRAN.B 06

52330000644

$573.04

IGNIT.COVER 125/200 MAG. 01

5033000220098

$37.02

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

ENGINE CASE GASKET 0,5MM '98

50330039000

$16.17

IGNITION COVER GASKET 2001

50330040100

$13.74

HH COLLAR SCREW M 6X50 WS=8

0015060503

$3.08

HH COLLAR SCREW M 6X55 WS=8

0015060553

$1.49

HH COLLAR SCREW M 5X16 WS=6

0014050163

$2.05

HH COLLAR SCREW M 6X60 WS=8

0015060603

$3.08

OIL GUARD GROMMET 25X31 '98

50330092000

$3.08

GASKET KIT 125-200 06

50330099100

$277.13

DOWEL BUSHING 13,8X11X12

54630027000

$6.91
