Description

Price

7

RADIATOR L/S NATURE (45286)98

50335007000

$336.13

8

RADIATOR R/S NATURE (45285)98

50335008000

$302.31

9

RADIAT.CAP 20,3PSI (1,4BAR) 03

59035009000

$15.98

20

HOSE CLAMP GEMI 18-29

10001020000

$2.05

23

ANGLE PIECE '97

50303089000

$5.23

24

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

25

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

26

RADIATOR HOSE INCL. Y-PART 03

54835026000

$26.80

27

RADIATOR HOSE 18X25X130 MM 03

54835027000

$41.60

33

COVER FOR RADIATOR L/S BLACK

50335033000

Unavailable

39

Cable tie 200/4.6mm black

44011076200

Unavailable

40

RUBBER SLEEVE D=12MM

41001052000

$4.11

34

RADIATOR PROTECTOR L. BLACK

5463503420030

Unavailable

35

RADIATOR PROTECTOR RIGHT 06

5463513420030

Unavailable

42

COLLAR SCREW M6X27 TX

0024060273

$3.08

43

SPACER BUSHING

77035002100

$3.93

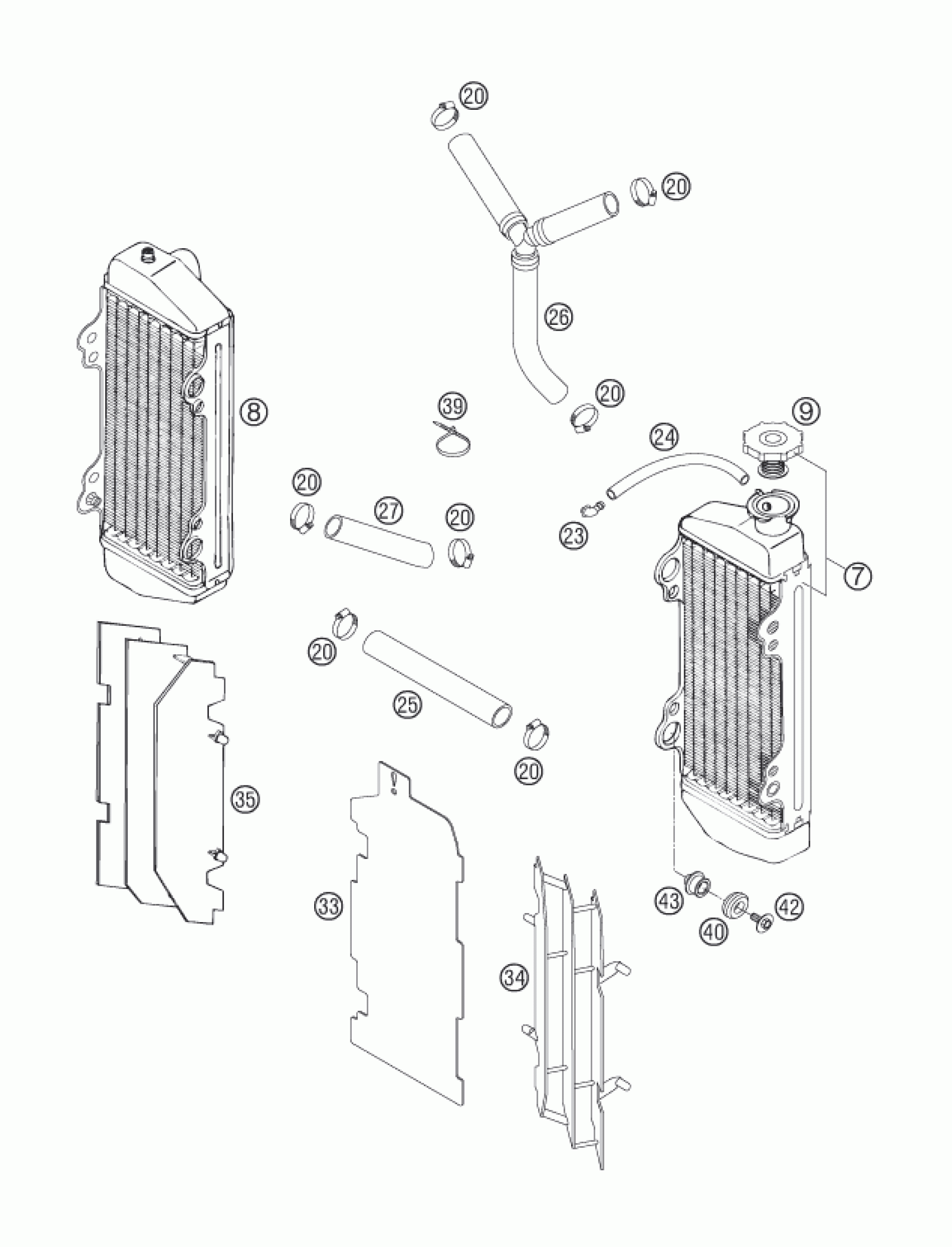

KTM 200 XC 2007 COOLING SYSTEM Diagram

RADIATOR L/S NATURE (45286)98

RADIATOR R/S NATURE (45285)98

RADIAT.CAP 20,3PSI (1,4BAR) 03

HOSE CLAMP GEMI 18-29

ANGLE PIECE '97

PVC-HOSE 6X9 MM PER METER

RADIATOR HOSE 18X25 PER METRE

RADIATOR HOSE INCL. Y-PART 03

RADIATOR HOSE 18X25X130 MM 03

COVER FOR RADIATOR L/S BLACK

Cable tie 200/4.6mm black

RUBBER SLEEVE D=12MM

RADIATOR PROTECTOR L. BLACK

RADIATOR PROTECTOR RIGHT 06

COLLAR SCREW M6X27 TX

SPACER BUSHING
