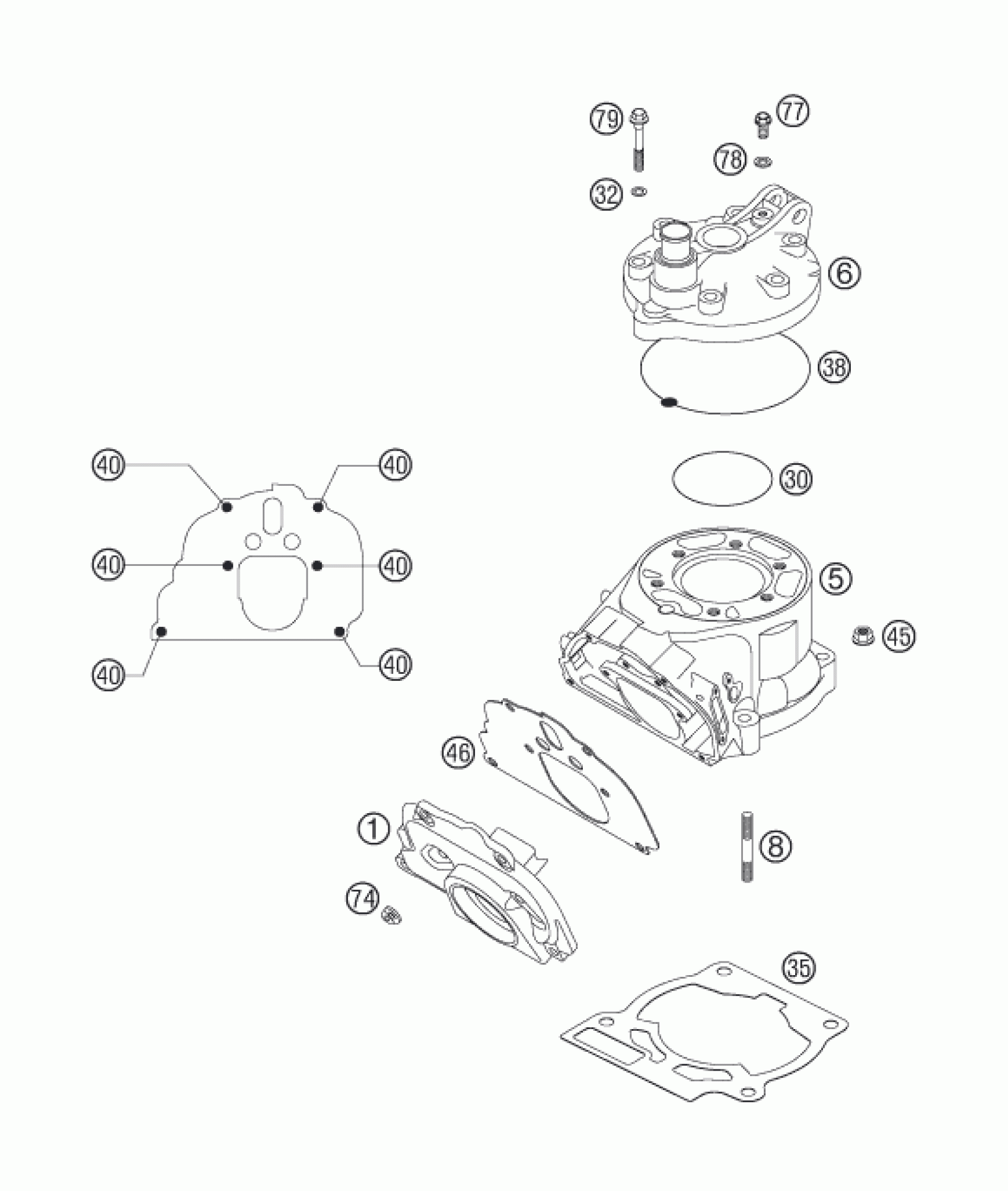

KTM 200 XC 2006 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

1

INTERMEDIATE FLANGE 200 2000

52337001200

$89.19

5

CYLINDER 200 2003

52330005300

$777.63

6

CYLINDER HEAD 200 2006

52330006200

$169.67

8

STUD DIN0835-M 8X35 10.9

0835080355

$3.08

30

O-RING 72,00X2,00 VITON

0770720021

$5.70

32

CU-SEAL RING 7,3 X 12 X 0,5

50230032010

$1.49

35

CYL.BASE GASKET 0,07MM PAPER

50330035007

Unavailable

35

CYLINDER BASE GASKET 0,15MM

50330035015

Unavailable

35

CYLINDER BASE GASKET 0,20MM

50330035020

Unavailable

35

CYLINDER BASE GASKET 0,25MM

50330035025

Unavailable

35

CYLINDER BASE GASKET 0,40MM

50330035040

Unavailable

35

CYLINDER BASE GASKET 0,50MM

50330035050

Unavailable

35

CYLINDER BASE GASKET 0,75MM

50330035075

Unavailable

38

CYL.HEAD SEAL RING 200 2003

52330137000

$12.61

40

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

45

HH COLLAR NUT M 8 WS=12

50330045000

$2.05

46

INTERMED.GASKET 1,1MM 200 2000

52337046100

$9.53

74

RETAINING PLATE

51005074000

$3.08

77

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

78

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

79

CYL. HEAD BOLT M 7X40 WS=10

50030079000

$9.90
