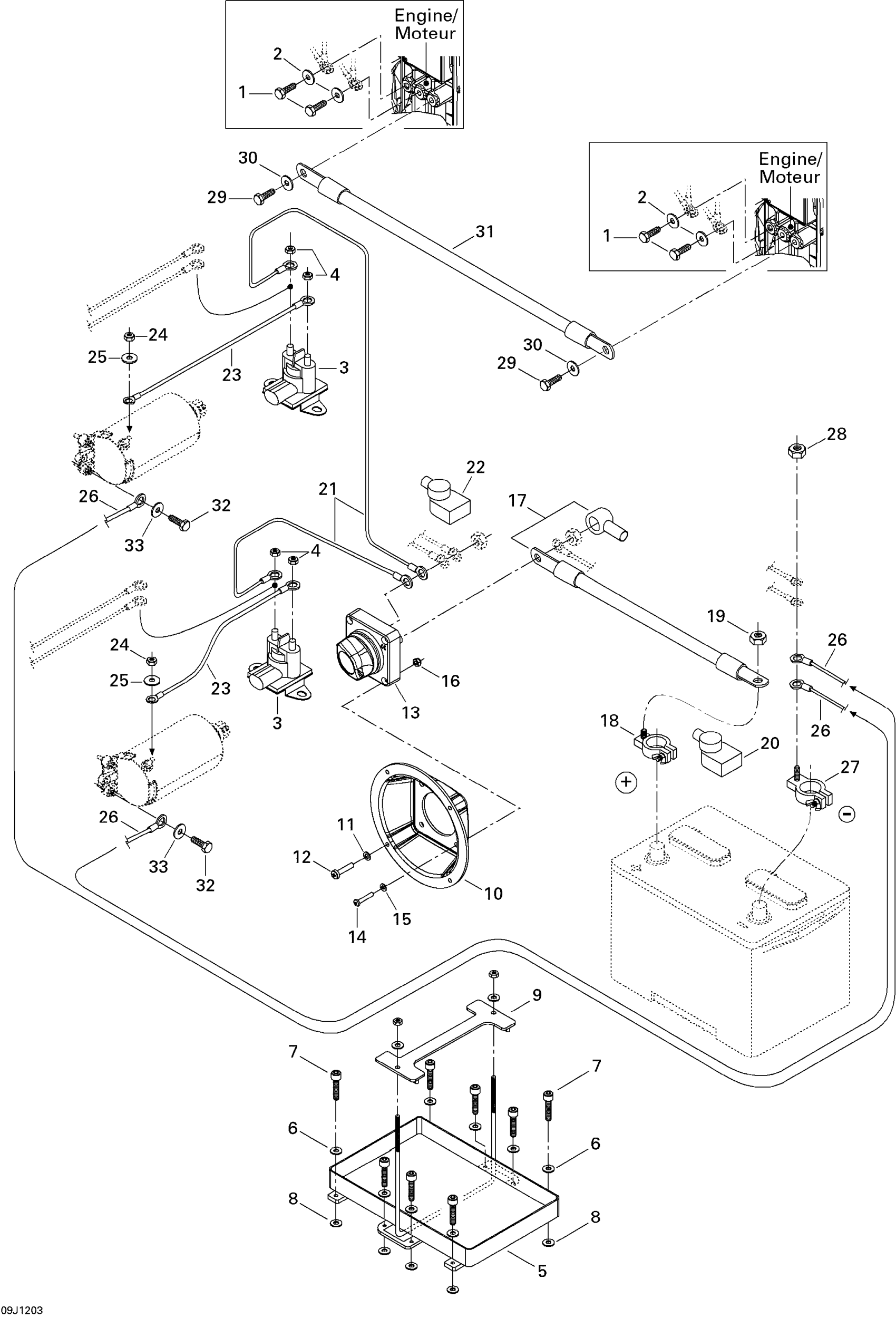

Sea-doo 200 Speedster 510, 2012 Electrical System Diagram

#

Description
Price

1

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

2

Stainless Flat Washer M6

234061600

$0.33

3

Starter Relay

278003012

$42.49

4

Hex. Elastic Stop Nut M6

232561600

$1.15

5

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

6

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

7

Socket Head Screw M6 X 25

205062560

$1.69

8

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

9

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

10

SWITCH SUPPORT - Call your local BRP dealership

204471341

Unavailable

11

Flat Washer 4 mm, Stainless

234041600

$1.15

12

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

13

BATTERY SWITCH - Call your local BRP dealership

204471339

Unavailable

14

Phillips Screw M5 X 25

208652560

$3.39

15

Flat Washer M5, Stainless

234051600

$0.77

16

Hex. Elastic Nut M5 | X

232551600

$1.15

17

POSITIVE SWITCH CABLE - Call your local BRP dealership

204471422

Unavailable

18

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

19

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

20

RED BOOT - Call your local BRP dealership

204470269

Unavailable

21

RED CABLE - Call your local BRP dealership

204471423

Unavailable

21

RED CABLE - Call your local BRP dealership

204471424

Unavailable

22

RED BOOT - Call your local BRP dealership

204470269

Unavailable

23

Red Cable

204470852

Unavailable

23

RED CABLE - Call your local BRP dealership

204470798

Unavailable

24

Hex. Elastic Stop Nut M6

232561600

$1.15

25

Stainless Flat Washer M6

234061600

$0.33

26

GROUND CABLE, PORT SIDE - Call your local BRP dealership

204470854

Unavailable

26

GROUND CABLE, STARBOARD - Call your local BRP dealership

204470840

Unavailable

27

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

28

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

29

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

30

Flat Washer M6, Stainless

234062600

$0.77

31

GROUND CABLE - Call your local BRP dealership

204470839

Unavailable

32

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

33

Stainless Flat Washer M6

234061600

$0.33
