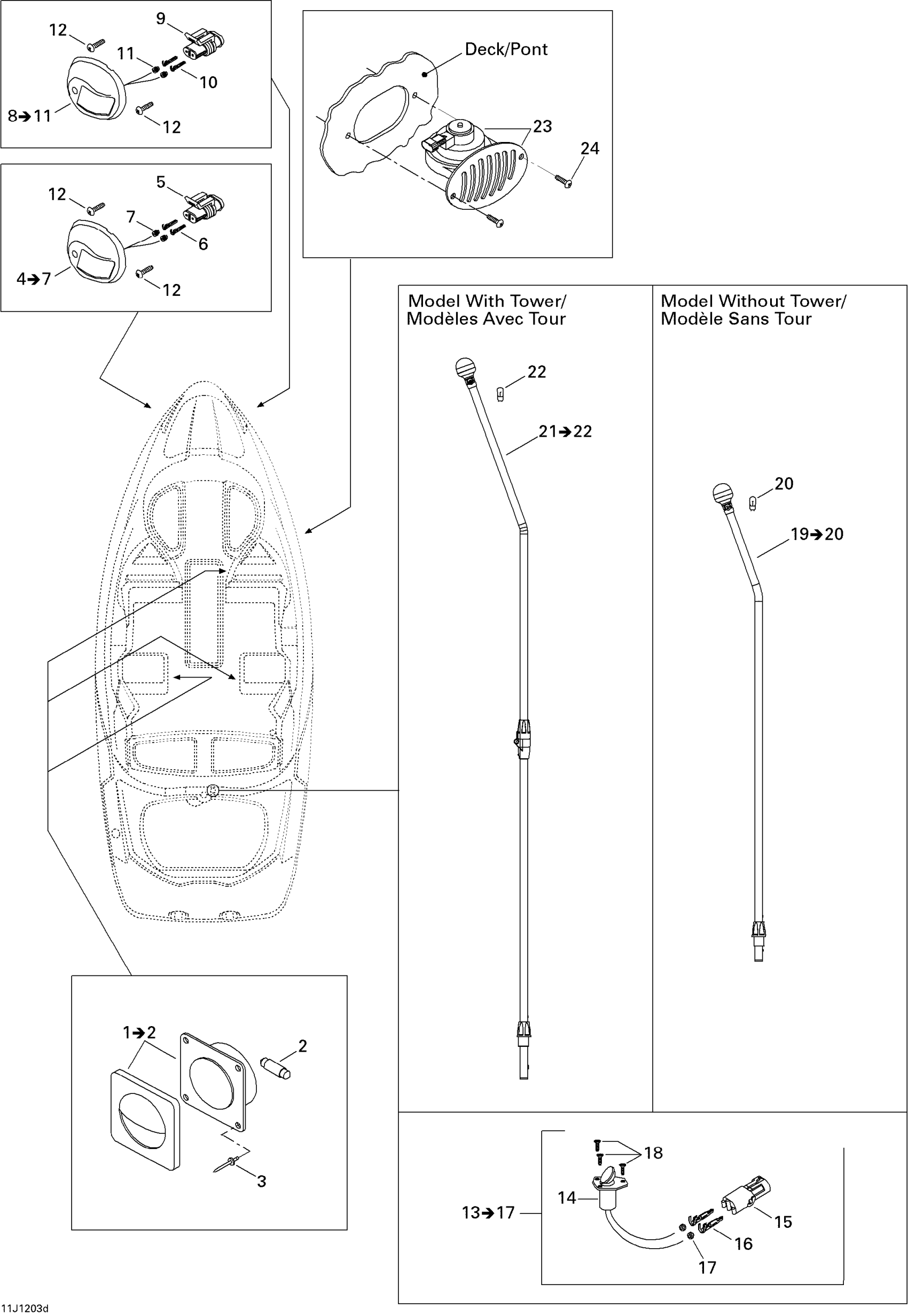

Sea-doo 200 Speedster 510, 2012 10- Electrical Accessories 4 Diagram
#
Description
Price
1
Courtesy Light Ass'y | Includes 29 to 30
204470026
$47.49
2
BULB - Call your local BRP dealership
204470081
Unavailable
3
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
4
GREEN NAVIGATION LAMP ASSY, STARBOARD - Call your local BRP dealership | Includes 4 to 7
204470755
Unavailable
5
Female Housing, 2 Circuits
409209500
$15.27
6
Female Terminal
278001014
$3.28
7
Wire Seal
278001013
$3.28
8
RED NAVIGATION LAMP ASSY, PORT SIDE - Call your local BRP dealership | Includes 8 to 11
204470754
Unavailable
9
Female Housing, 2 Circuits
409209500
$15.27
10
Female Terminal
278001014
$3.28
11
Wire Seal
278001013
$3.28
12
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
13
REAR LAMP BASE ASSY - Call your local BRP dealership | 210 Challenger This part replaces 204470643.
204470642
Unavailable
14
REAR LAMP BASE ASSY - Call your local BRP dealership | 210 Challenger This part replaces 204470643.
204470642
Unavailable
15
Female Housing, 2 Circuits
278000217
$9.59
16
Male Terminal | XT Models
278000222
$3.19
17
Wire Seal
278000218
$4.39
18
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
19
REAR LAMP POLE - Call your local BRP dealership | Includes 19 to 20, Model Without Tower
204471413
Unavailable
20
Bulb
204470053
Unavailable
21
Rear Lamp Pole | Includes 21 to 22, Model With Tower
204471414
Unavailable
22
Bulb
204470053
Unavailable
23
HORN - Call your local BRP dealership
204470801
Unavailable
24
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
