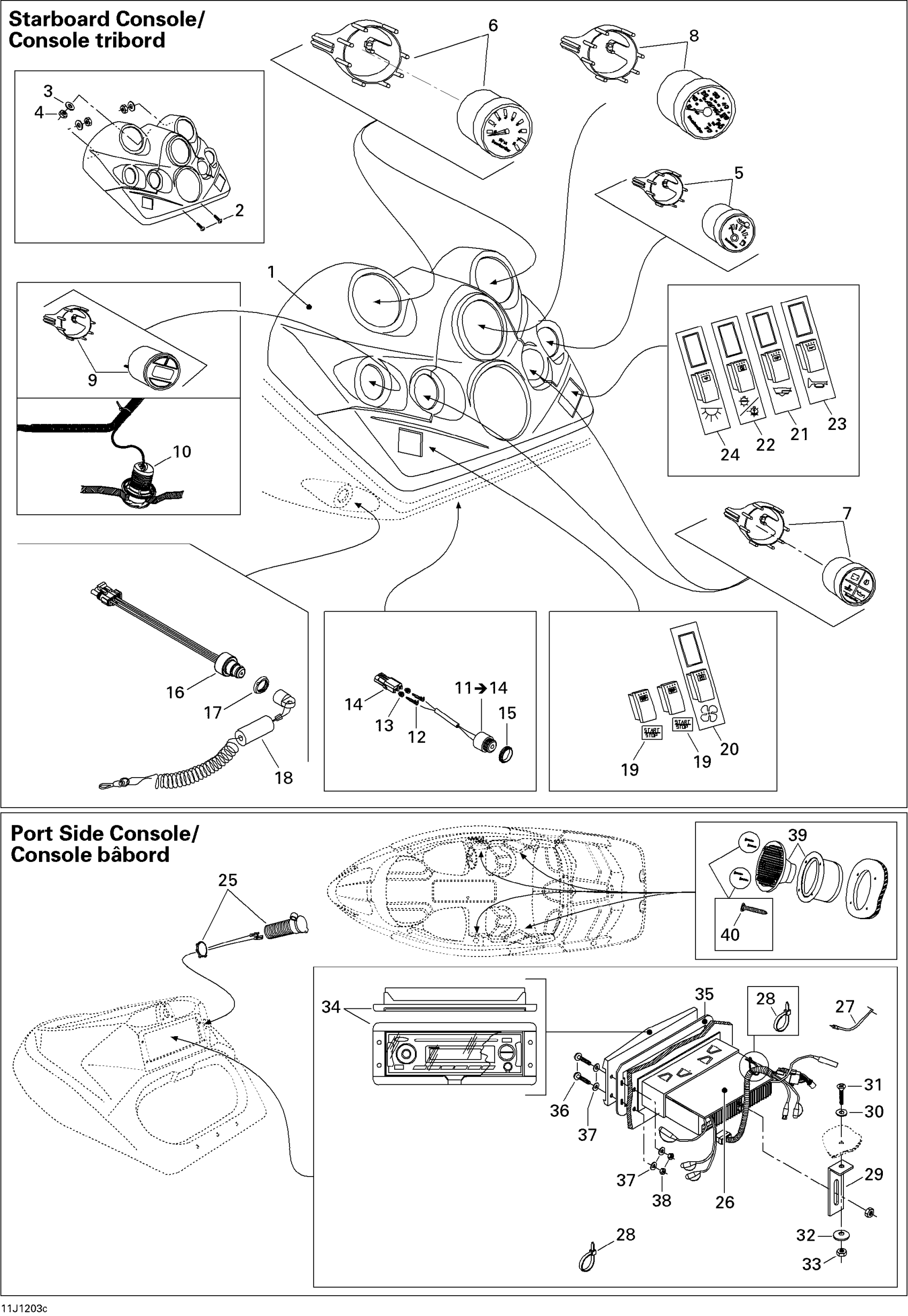

Sea-doo 200 Speedster 510, 2012 10- Electrical Accessories 3 Diagram

#

Description
Price

1

FASCIA - Call your local BRP dealership

204471392

Unavailable

2

SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership

202000203

Unavailable

3

Flat Washer 8 mm, Stainless

234082600

$2.43

4

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

5

FUEL GAUGE - Call your local BRP dealership

204471128

Unavailable

6

TACHOMETER GAUGE - Call your local BRP dealership

204470958

$409.99

7

ENGINE WARNING GAUGE - Call your local BRP dealership

204471130

Unavailable

8

Speed Gauge

204470957

$479.99

9

DEPTH GAUGE - Call your local BRP dealership

204470917

Unavailable

10

Depth Sensor

204471292

$194.99

11

Buzzer Ass'y

204470913

$92.99

12

Male Terminal | XT Models

278000222

$3.19

13

Wire Seal

278000218

$4.39

14

Female Housing, 2 Circuits

278000217

$9.59

15

Buzzer Nut

278000707

Unavailable

16

SAFETY SWITCH - Call your local BRP dealership

278002797

Unavailable

17

Safety Nut (DESS Switch)

278002963

$3.28

18

Safety Lanyard

204471206

$56.99

19

START/STOP SWITCH - Call your local BRP dealership

204471178

Unavailable

20

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

21

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

22

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

23

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

24

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

25

DC Outlet

710001248

$37.99

26

Stereo Compact Disk

278002733

Unavailable

27

STEREO ANTENNA - Call your local BRP dealership

204471215

Unavailable

28

Tie Wrap 94 mm | 4X4

293750001

$1.03

29

RADIO SUPPORT - Call your local BRP dealership

204470837

Unavailable

30

Stainless Flat Washer M6

234061600

$0.33

31

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208662060

Unavailable

32

Flat Washer M6, Stainless

234062600

$0.77

33

Hex. Elastic Stop Nut M6

232561600

$1.15

34

Radio Cover

204470266

Unavailable

35

RADIO COVER GASKET - Call your local BRP dealership

204470257

Unavailable

36

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

37

Flat Washer 4 mm

234040600

$0.55

38

Elastic Stop Nut M4

232541600

$1.15

39

SPEAKER, SILVER - Call your local BRP dealership | 180 Challenger SE

204471344

Unavailable

40

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable
