10- Electrical Accessories 1

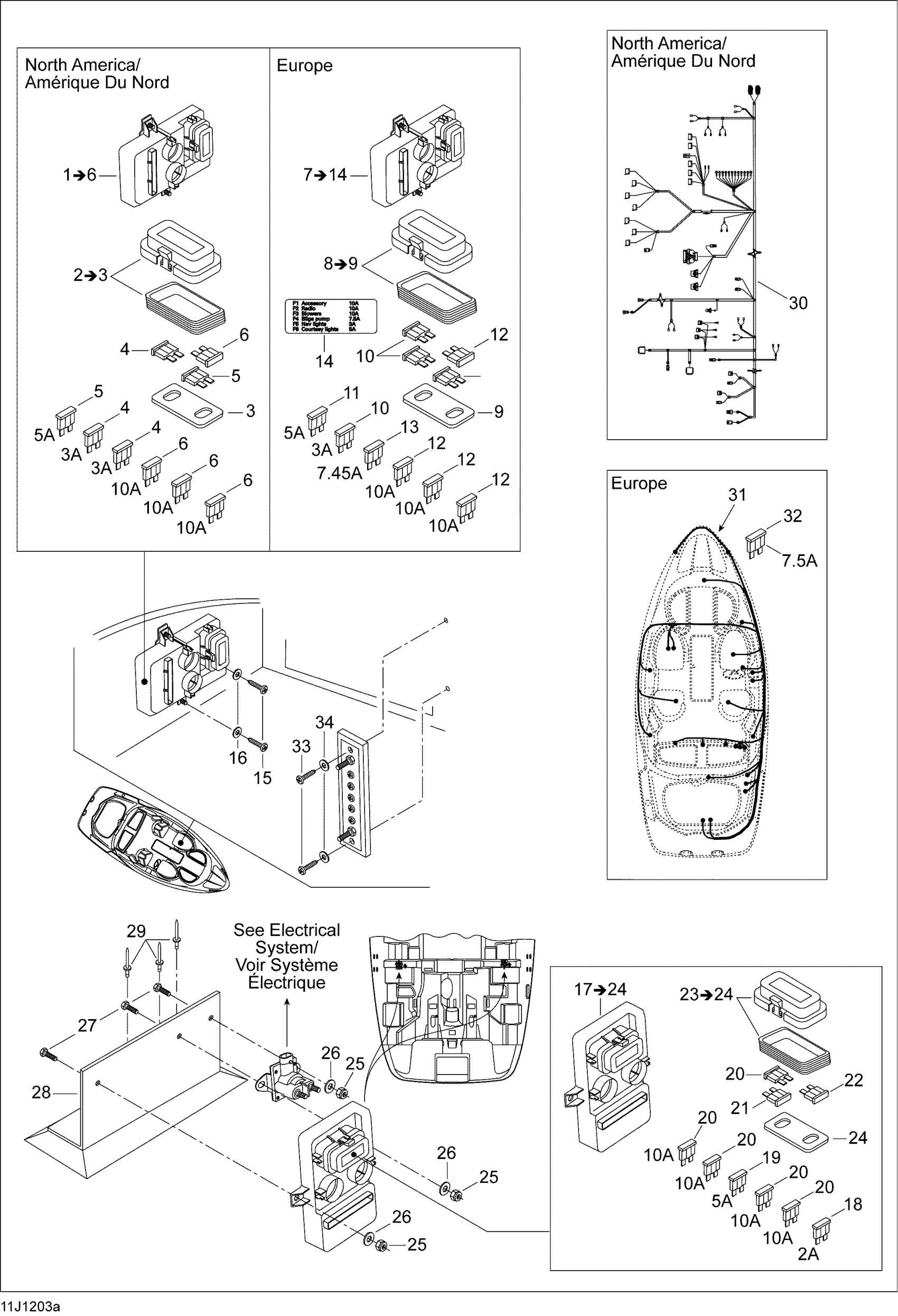

Sea-doo 200 Speedster 510, 2012 10- Electrical Accessories 1 Diagram
#
Description
Price
1
TWIN ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6, North America
204471262
Unavailable
2
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
$36.99
3
COVER BUSHING - Call your local BRP dealership | North America
278001719
Unavailable
4
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
5
Fuse, 5 Amperes | CE
278000344
$3.28
6
Fuse, 10 Amperes | North America
278001197
$2.21
7
TWIN ENGINE INTERFACE - Call your local BRP dealership | Includes 7 to 14, Europe
278002636
Unavailable
8
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
$36.99
9
COVER BUSHING - Call your local BRP dealership | North America
278001719
Unavailable
10
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
11
Fuse, 5 Amperes | CE
278000344
$3.28
12
Fuse, 10 Amperes | North America
278001197
$2.21
13
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
14
LABEL, INTERFACE - Call your local BRP dealership | Europe
278002637
Unavailable
15
Flat Washer M6, Stainless
234062600
$0.77
16
TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership
204100203
Unavailable
17
FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24
204470770
Unavailable
18
FUSE, 2 AMPERES - Call your local BRP dealership
278001442
Unavailable
19
Fuse, 5 Amperes | CE
278000344
$3.28
20
Fuse, 10 Amperes | North America
278001197
$2.21
21
Fuse, 20 Amperes
409003900
$3.28
22
Fuse, 30 Amperes
410917200
$3.28
23
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
$36.99
24
COVER BUSHING - Call your local BRP dealership | North America
278001719
Unavailable
25
Hex. Elastic Stop Nut M6
232561600
$1.15
26
Flat Washer M6, Stainless
234062600
$0.77
27
Hex. Forming Screw M6 X 20
207162060
$1.29
28
BRACKET - Call your local BRP dealership
204471071
Unavailable
29
Avdel Rivet 3/16"
293150037
$0.56
30
MAIN HARNESS (ACCESSORY HARNESS) - Call your local BRP dealership | North America
278002779
Unavailable
31
MAIN HARNESS (ACCESSORY HARNESS) - Call your local BRP dealership | North America
278002779
Unavailable
32
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
33
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
34
Flat Washer 4 mm, Stainless
234041600
$1.15
