- 200 Speedster 510, 2012
09- Storage Compartment, Front

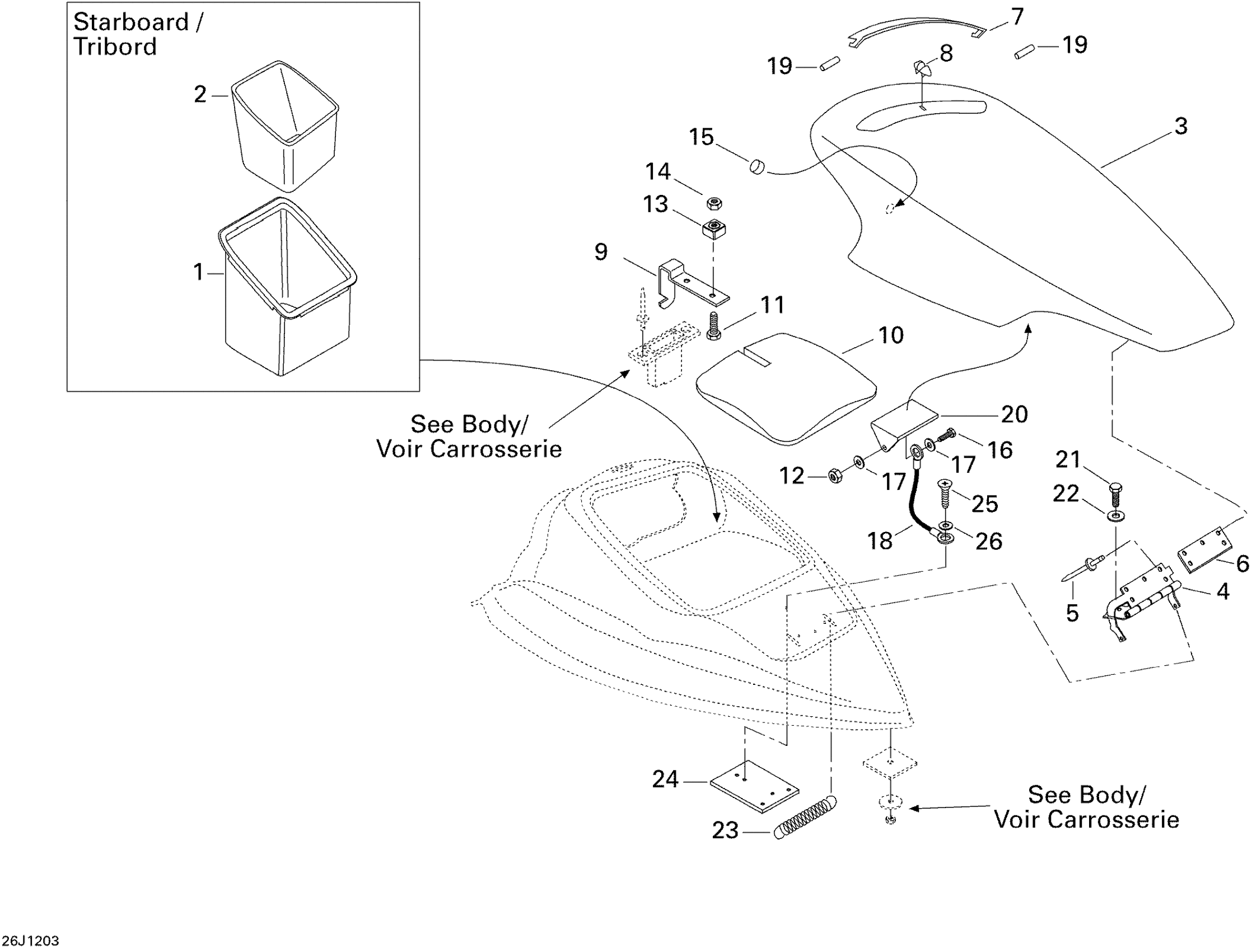

Sea-doo 200 Speedster 510, 2012 09- Storage Compartment, Front Diagram
#
Description
Price
1
STORAGE TRAY - Call your local BRP dealership
269501940
$53.99
2
ICEBOX FOAM - Call your local BRP dealership
204630008
Unavailable
3
Windshield This part replaces 204620079.
291003861
$380.99
4
HINGE ASS'Y - Call your local BRP dealership
204620281
Unavailable
5
Pop Rivet 3/16"
293150039
$1.49
6
RETAINING PLATE - Call your local BRP dealership
204620087
Unavailable
7
DEFLECTOR - Call your local BRP dealership
204073803
$63.99
8
REAR STOPPER - Call your local BRP dealership
204073804
Unavailable
9
LATCH - Call your local BRP dealership
204620070
Unavailable
10
FOAM, WINDSCREEN - Call your local BRP dealership
204620080
Unavailable
11
HEX. SCREW M6 X 12 - Call your local BRP dealership
207151260
Unavailable
12
Hex. Elastic Nut M5 | X
232551600
$1.15
13
NUT HOUSING - Call your local BRP dealership
204073798
Unavailable
14
Hex. Elastic Nut M5 | X
232551600
$1.15
15
RUBBER STOPPER - Call your local BRP dealership
204620295
Unavailable
16
HEX. SCREW M6 X 12 - Call your local BRP dealership
207151260
Unavailable
17
Flat Washer 5 mm, Stainless
234052600
$0.77
18
RETAINER CABLE - Call your local BRP dealership
204620194
Unavailable
19
ROLLED PIN 1.5 X 10 MM - Call your local BRP dealership
204620126
Unavailable
20
CABLE ATTACHEMENT - Call your local BRP dealership
204620127
Unavailable
21
Hex. Screw M5 X 20
207152060
$1.47
22
Flat Washer 5 mm, Stainless
234052600
$0.77
23
HINGE SPRING - Call your local BRP dealership
204620018
Unavailable
24
WINDSCREEN INSERT - Call your local BRP dealership
204620280
Unavailable
25
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership
208662560
Unavailable
26
Flat Washer M6, Stainless
234062600
$0.77
