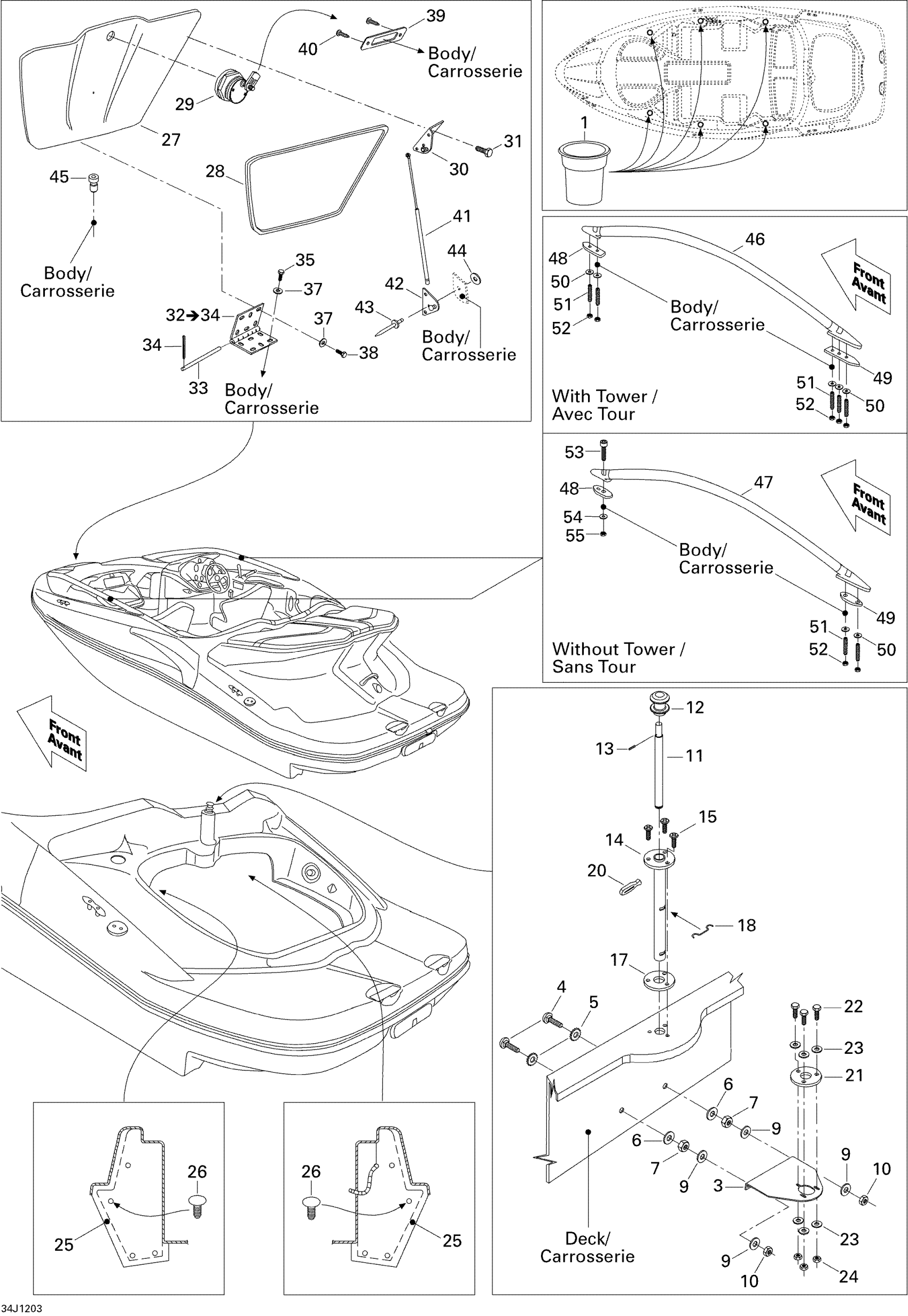

Sea-doo 200 Speedster 510, 2012 09- Body And Accessories Diagram
#
1
CUP HOLDER - Call your local BRP dealership | STD
291000619
Unavailable
3
FIXATION PLATE - Call your local BRP dealership
204071839
Unavailable
4
Elevator Bolt
204000130
Unavailable
5
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
6
Flat Washer M6, Stainless
234062600
$0.77
7
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
9
Flat Washer M6, Stainless
234062600
$0.77
10
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
11
SKI SHAFT - Call your local BRP dealership
204072616
Unavailable
12
SKI SHAFT CAP - Call your local BRP dealership
293000004
Unavailable
13
ROLLED PIN M3 X 30 - Call your local BRP dealership
211400004
Unavailable
14
FIXED TUBE - Call your local BRP dealership
291001057
Unavailable
15
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
17
RUBBER WASHER - Call your local BRP dealership
293830045
Unavailable
18
SPRING - Call your local BRP dealership
291001205
Unavailable
20
Windshield Latch
570023800
$4.49
21
RETAINER WASHER - Call your local BRP dealership
291001060
Unavailable
22
Hex. Forming Screw M6 X 20
207162060
$1.29
23
Flat Washer M6, Stainless
234062600
$0.77
24
Hex. Elastic Stop Nut M6
232561600
$1.15
25
SOUNDWALL SEAL - Call your local BRP dealership
204071935
Unavailable
26
Black Dart
293730014
$0.99
27
BOW COVER - Call your local BRP dealership
204072466
Unavailable
28
Was 293200017 Neoprene Seal
219704365
$149.99
29
FLUSH LATCH - Call your local BRP dealership
204071937
Unavailable
30
Shock Bracket
204073074
$27.99
31
Hex. Screw M4 X 12, Scotch Grip
207341260
Unavailable
32
HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21
204070127
Unavailable
33
HINGE ROD - Call your local BRP dealership
204070204
Unavailable
34
Cotter Pin M2.5 X 12
204070205
Unavailable
35
Hex. Screw M6 X 25
207162560
$1.47
37
Stainless Flat Washer M6
234061600
$0.33
38
Hex. Screw M6 X 16
207161660
$1.59
39
LATCH PLATE - Call your local BRP dealership
204072027
Unavailable
40
SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership
202000203
Unavailable
41
CYLINDER GAS SHOCK - Call your local BRP dealership
204071918
Unavailable
42
SHOCK BRACKET - Call your local BRP dealership
204073065
Unavailable
43
Pop Rivet 3/16"
293150043
$2.09
44
Flat Washer M5, Stainless
234051600
$0.77
45
DRAIN FITTING - Call your local BRP dealership
204071783
Unavailable
46
LH SIDE RAIL ASS'Y - Call your local BRP dealership | With Tower
204073245
Unavailable
46
RH Side Rail Ass'y | With Tower
204073250
Unavailable
47
LH SIDE RAIL ASS'Y - Call your local BRP dealership | Without Tower
291003490
Unavailable
47
RH SIDE RAIL ASS'Y - Call your local BRP dealership | Without Tower
291003491
Unavailable
48
GASKET, FRONT - Call your local BRP dealership | With Tower
204130063
Unavailable
48
PAD - RAIL FRONT - Call your local BRP dealership | Without Tower
291003492
Unavailable
49
GASKET, REAR - Call your local BRP dealership | With Tower
204130064
Unavailable
49
PAD - RAIL REAR - Call your local BRP dealership | Without Tower
291003493
Unavailable
50
Flat Washer 10 mm, Stainless
234002600
$2.22
50
Flat Washer 10 mm, Stainless
234002600
$2.22
51
STUD 3/8-16 X 3 - Call your local BRP dealership | With Tower
204100244
Unavailable
51
STUD 3/8-16 X 3 - Call your local BRP dealership | With Tower
204100244
Unavailable
52
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership
204100032
Unavailable
52
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership
204100032
Unavailable
53
SOCKET HEAD SCREW 5/8? X 2-1/2? - Call your local BRP dealership | Without Tower
204100092
Unavailable
54
WASHER - Call your local BRP dealership | Without Tower
204071423
Unavailable
55
LOCK NUT 5/8 - Call your local BRP dealership | Without Tower
204100093
Unavailable
