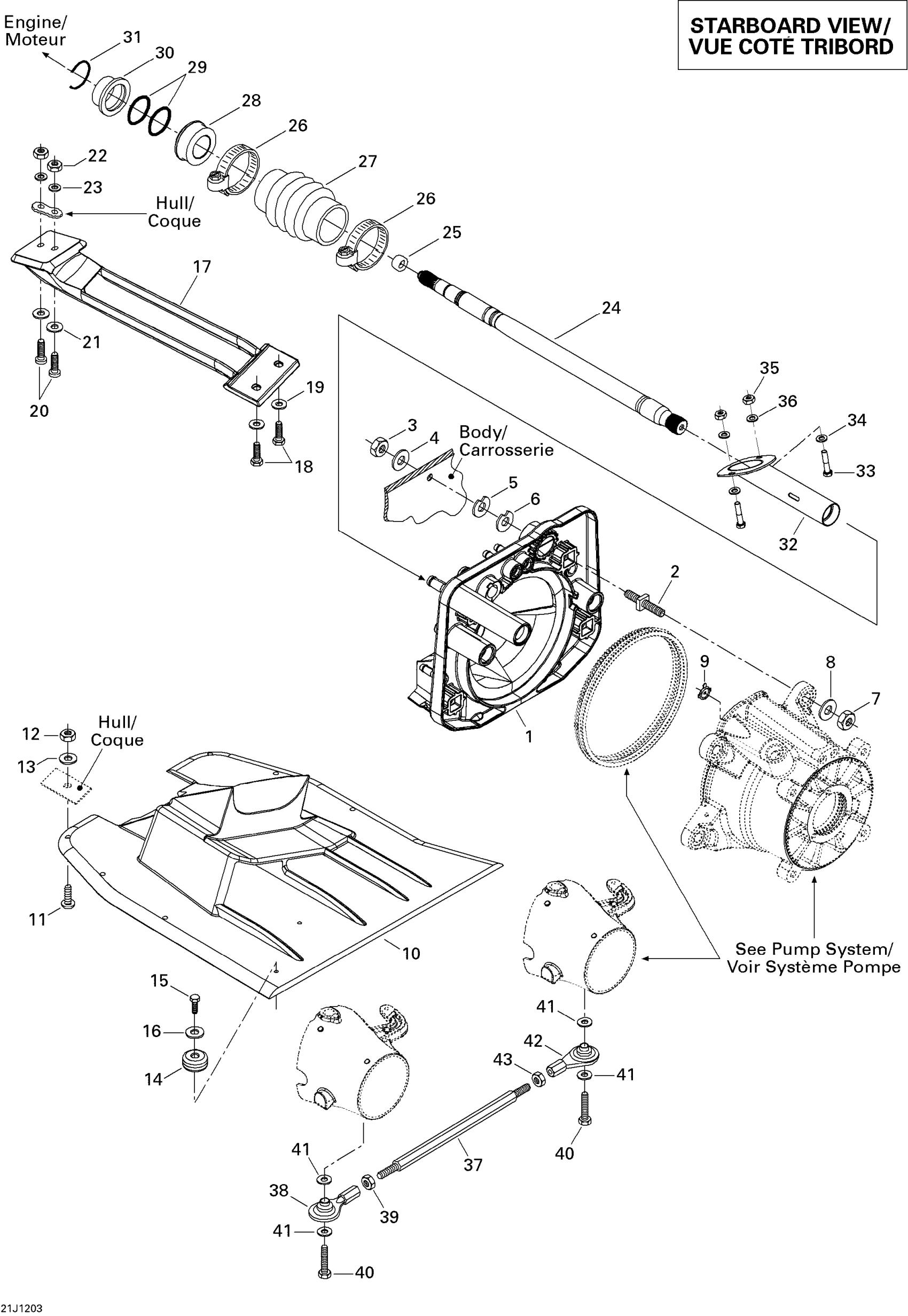

Sea-doo 200 Speedster 510, 2012 05- Propulsion Diagram
#
1
PUMP SUPPORT - Call your local BRP dealership
204120313
Unavailable
2
Square Stud
250300022
$20.99
3
Elastic Stop Nut M10, Brass
232501200
$2.64
4
Flat Washer 10 mm, Stainless
234002600
$2.22
5
Shim 0.3 mm
272000053
$11.49
6
NEEDS DESCRIPTION This part replaces 204120067.
0460011
$10.49
7
Elastic Stop Nut M10, Brass
232501200
$2.64
8
Flat Washer
211200051
$1.68
9
Reducer, Green This part replaces 271001586.
271002029
$16.49
10
RIDE PLATE - Call your local BRP dealership
271001705
Unavailable
10
RIDE PLATE - Call your local BRP dealership
271001706
Unavailable
11
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
12
Hex. Elastic Stop Nut M6
232561600
$1.15
13
Flat Washer M6, Stainless
234062600
$0.77
14
Anode Zinc
271001813
$18.99
15
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
16
Stainless Flat Washer M6
234061600
$0.33
17
FIXED GRATE - Call your local BRP dealership
271001671
Unavailable
17
FIXED GRATE - Call your local BRP dealership
271001672
Unavailable
18
Hex. Screw M6 X 16
207161660
$1.59
19
Stainless Flat Washer M6
234061600
$0.33
20
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership
208663560
Unavailable
21
Stainless Flat Washer M6
234061600
$0.33
22
Hex. Elastic Stop Nut M6
232561600
$1.15
23
Flat Washer M6, Stainless
234062600
$0.77
24
Drive Shaft
204120284
$476.99
25
Drive Shaft Plug
272000173
$8.68
26
Norma Clamp
293650077
$7.41
27
Bellows
272000183
$28.99
28
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
29
O-Ring
293300044
$1.05
30
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
31
C-Clip
271001575
$6.11
32
SHAFT GUARD ASSY - Call your local BRP dealership This part replaces 271001715.
271001834
Unavailable
33
Phillips Screw M5 X 35
208653560
$2.22
34
Flat Washer M5, Stainless
234051600
$0.77
35
Hex. Elastic Nut M5 | X
232551600
$1.15
36
Flat Washer 5 mm, Stainless
234052600
$0.77
37
LINK ROD - Call your local BRP dealership
204120255
Unavailable
38
BALL JOINT - Call your local BRP dealership
204120075
Unavailable
39
HEX. NUT 5/16-24 - Call your local BRP dealership
211100034
Unavailable
40
Hex. Screw M6 X 30
207163060
$1.48
41
Stainless Flat Washer M6
234061600
$0.33
42
BALL JOINT - Call your local BRP dealership
204120074
Unavailable
43
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
