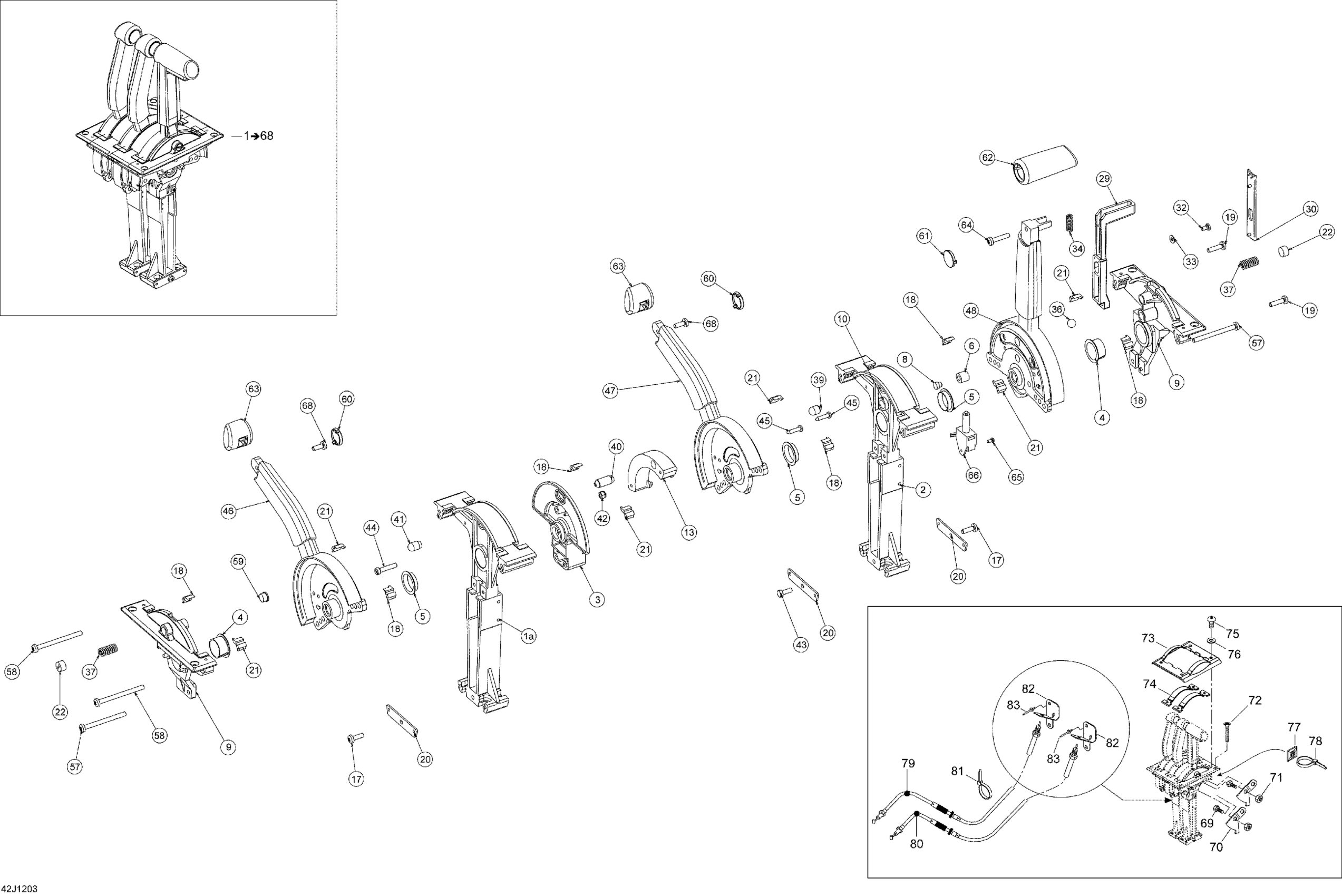

Sea-doo 200 Speedster 510, 2012 05- Control Handle Diagram
#
1
CONTROL HANDLE ASS'Y - Call your local BRP dealership | Includes 1 to 68
277001862
Unavailable
1a
RH Frame
204390611
Unavailable
2
LH Frame
204390612
Unavailable
3
Spacer
204390613
Unavailable
4
BUSHING - Call your local BRP dealership
277000397
Unavailable
5
BUSHING - Call your local BRP dealership
277000398
Unavailable
6
Screw M12
204390614
Unavailable
8
Friction Pin
204390615
Unavailable
9
Half Cover
277001815
Unavailable
10
Bushing
204390617
Unavailable
13
Throttle Lever Selector
204390618
Unavailable
17
Screw M5 X 16
277001850
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
SCREW M5 X 20 - Call your local BRP dealership
204100016
Unavailable
20
RETAINING PLATE - Call your local BRP dealership
204390227
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
CAP SCREW - Call your local BRP dealership
277000402
Unavailable
29
LOCK - Call your local BRP dealership
277001825
Unavailable
30
LOCK COVER - Call your local BRP dealership
277001826
Unavailable
32
SCREW M4 X 8 - Call your local BRP dealership
277001828
Unavailable
33
WASHER - Call your local BRP dealership
277001829
Unavailable
34
SPRING - Call your local BRP dealership
277001830
Unavailable
36
BALL - Call your local BRP dealership
277000399
Unavailable
37
DETENT SPRING - Call your local BRP dealership
277001832
Unavailable
39
Shift Lever Pin
204390619
Unavailable
40
Throttle Lever Pin
204390620
Unavailable
41
Throttle Lever External Pin
204390621
Unavailable
42
Nut M5
204390622
Unavailable
43
Screw M5 X 14
204390623
Unavailable
44
Screw M5 X 25
204390624
Unavailable
45
Screw
204390625
Unavailable
46
THROTTLE LEVER - Call your local BRP dealership
204390626
Unavailable
47
THROTTLE LEVER - Call your local BRP dealership
204390627
Unavailable
48
Not Available As Spare Part - Friction Washer
Unavailable
57
Screw M5 X 60
204390628
Unavailable
58
Screw M5 X 65
204390629
Unavailable
59
FRICTION INSERT - Call your local BRP dealership
277000403
Unavailable
60
RED KNOB CAP - Call your local BRP dealership
204390630
Unavailable
61
BLACK KNOB CAP - Call your local BRP dealership
204390631
Unavailable
62
CONTROL HANDLE - Call your local BRP dealership
204390632
Unavailable
63
THROTTLE HANDGRIP - Call your local BRP dealership
204390633
Unavailable
64
SCREW M5 X 25 - Call your local BRP dealership
204390634
Unavailable
65
Screw M3 X 6
204390635
Unavailable
66
MICROSWITCH - Call your local BRP dealership
204390636
Unavailable
68
Not Available As Spare Part - Friction Washer
Unavailable
69
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
70
THROTTLE LINK - Call your local BRP dealership
204390045
Unavailable
71
Hex. Elastic Nut M5 | X
232551600
$1.15
72
SCREW M5 X 30 - Call your local BRP dealership
205353060
Unavailable
73
CONTROL PLATE - Call your local BRP dealership
277001756
Unavailable
74
CONTROL PLATE INSERT - Call your local BRP dealership
277001760
Unavailable
75
Phillips Screw M4 X 10
208641060
$1.01
76
Flat Washer 4 mm
234040600
$0.55
77
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
78
Tie Wrap 94 mm | 4X4
293750001
$1.03
79
LH THROTTLE CABLE - Call your local BRP dealership
204390572
Unavailable
80
RH THROTTLE CABLE - Call your local BRP dealership
204390576
Unavailable
81
Tie-Rap 180 mm
414115200
$0.11
82
CABLE SUPPORT - Call your local BRP dealership
277000504
Unavailable
83
RIVET_POP 1/8 - Call your local BRP dealership
293150026
Unavailable
