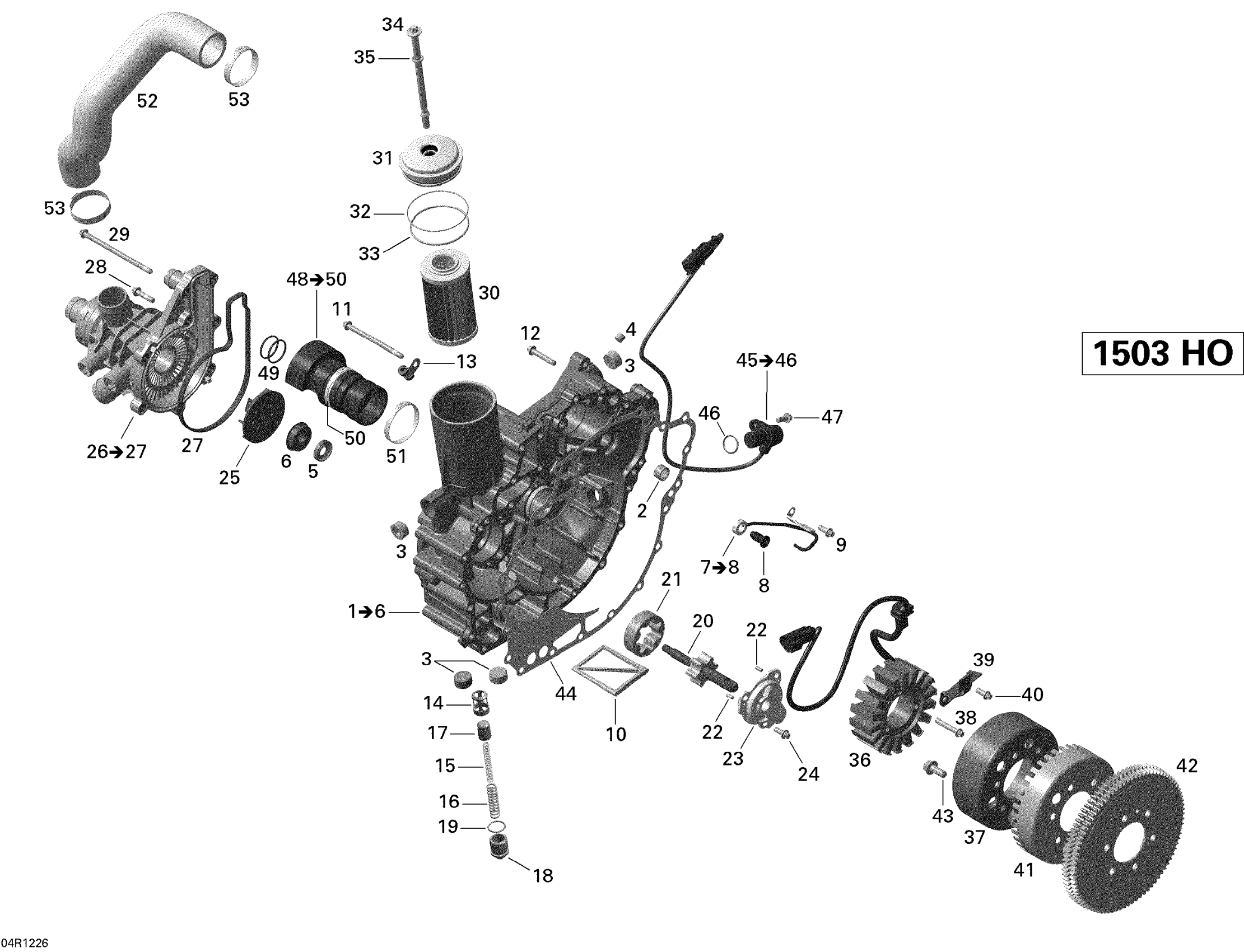

Sea-doo 200 Speedster 510, 2012 PTO Cover And Magneto Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes 1 to 6 This part replaces 420910521.

420481440

$577.82

2

Needle Bushing

420232482

$15.57

3

Plug Screw M20 X 1.5

420641317

$10.58

4

Plug Screw M10 X 1

420641323

$11.48

5

Oil Seal

420650315

$9.62

6

Rotary Seal

420650371

$35.72

7

OIl Spray Nozzle Ass'y | Includes 7 to 8

420856877

$47.42

8

Banjo Screw This part replaces 420840180.

420840181

$11.83

9

Torx Flange Screw M6 X 16

420641048

$2.46

10

Oil Sieve

420956950

$12.48

11

Torx Flange Screw M6 X 85

420641228

$6.11

12

Torx Flange Screw M6 X 35

420641258

$2.78

13

Clamp

420853414

$14.92

14

Valve Seat Sleeve

420256606

$24.02

15

Compression Spring

420939401

$10.91

16

Compression Spring

420939211

$7.16

17

Piston Valve

420256638

Unavailable

18

Plug Screw M20 X 1.5

420641052

$31.17

19

O-Ring

420230890

$4.41

20

Pump Shaft Ass'y

420837472

$45.47

21

Oil Pump Rotor 16 mm

420956675

$29.22

22

Needle Pin

420929070

$1.56

23

Oil Pump Cover

420811591

$29.87

24

Torx Flange Screw M6 X 16

420641048

$2.46

25

Impeller

420922801

$14.27

26

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$241.12

27

Water Pump Housing Gasket | Included in gasket kit

420950840

$11.39

28

Torx Flange Screw M6 X 25

420641238

$2.68

29

Torx Flange Screw M6 X 105

420641338

$6.11

30

Oil Filter

420956741

$11.14

31

Oil Filter Cover

420610329

$27.27

32

O-Ring

420850500

$2.63

33

O-Ring

420230923

$2.59

34

Oil Filter Screw Kit

295501207

$32.47

35

O-Ring

420950860

$3.20

36

Stator Plate This part replaces 420889721.

420889726

$278.82

37

Magneto Flywheel

420296900

$459.52

38

Torx Flange Screw M6 X 35

420641258

$2.78

39

Retaining Plate

420926300

$12.97

40

Torx Flange Screw M6 X 16

420641048

$2.46

41

Trigger Wheel

420966851

$14.92

42

Starter Double Gear 87/86T

420834871

$250.22

43

Hex Screw

295501162

$11.47

44

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$19.47

45

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$92.92

46

O-Ring

420431580

$12.29

47

Torx Flange Screw M6 X 16

420641048

$2.46

48

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

$114.37

49

O-Ring

420631612

$3.52

50

Gear Clamp 46.8-50.0MM

420853023

$6.11

51

Gear Clamp

420851653

$6.11

52

Formed Hose

420922822

$53.27

53

Oetiker Clamp

420851687

$9.43
