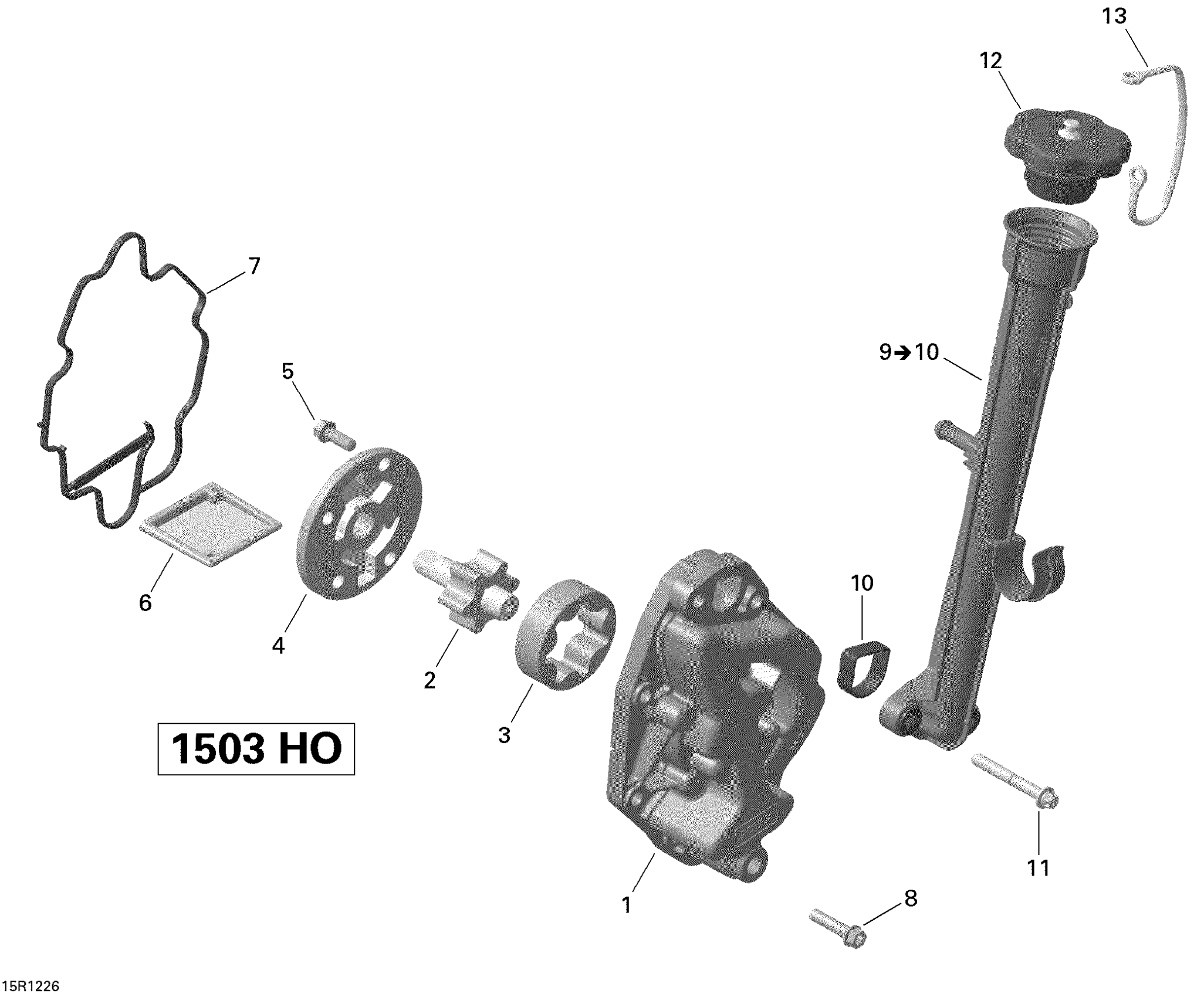

Sea-doo 200 Speedster 510, 2012 Oil Separator Diagram

#

Description

Price

1

Oil Pump Housing

420812723

$91.62

2

Oil Pump Shaft

420837543

$49.37

3

Oil Pump Rotor 16 mm

420956675

$29.22

4

Oil Pump Cover

420811851

$27.27

5

Torx Flange Screw M6 X 16

420641048

$2.46

6

Oil Sieve

420856520

$21.42

7

Oil Suction Pump Gasket | Included in gasket kit

420631486

$7.87

8

Torx Flange Screw M6 X 25

420641238

$2.68

9

OIL FILLER TUBE ASS'Y - Call your local BRP dealership | Includes 9 to 10

420856511

Unavailable

10

Gasket

420430240

$3.61

11

Torx Flange Screw M6 X 45

420641198

$3.38

12

Plug Cover, Yellow

420956923

$19.47

13

Retaining Band

420660620

$6.11
