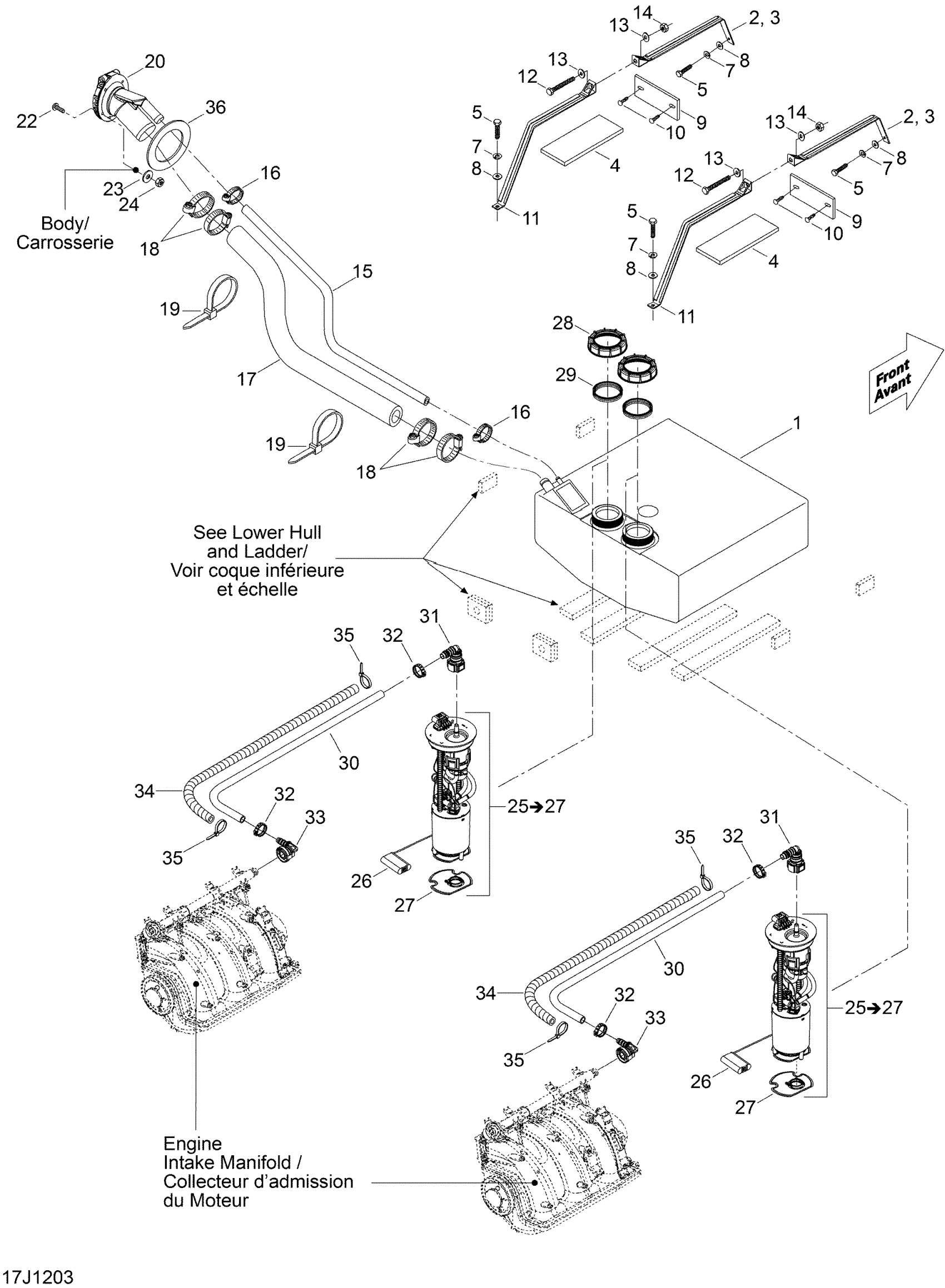

Sea-doo 200 Speedster 510, 2012 Fuel System Diagram

#

Description
Price

1

Fuel Tank Ass'y

275500817

Unavailable

2

FUEL TANK STRAP - Call your local BRP dealership

204560235

Unavailable

3

PROTECTOR PAD - Call your local BRP dealership

293830044

Unavailable

4

NEOPRENE PAD - Call your local BRP dealership

204560191

Unavailable

5

Hex. Screw M8 X 30

207183060

$1.58

7

Lock Washer 8 mm, Stainless

234181601

$0.55

8

Flat Washer 8 mm, Stainless

234082600

$2.43

9

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

10

Black, Dart

293730006

$0.99

11

FUEL TANK STRAP - Call your local BRP dealership

204560270

Unavailable

12

HEX. SCREW M8 X 80 - Call your local BRP dealership

207188060

Unavailable

13

Flat Washer 8 mm, Stainless

234082600

$2.43

14

Hex. Elastic Nut M8

232581600

$1.48

15

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

16

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

17

FILLER NECK HOSE - Call your local BRP dealership

204560401

Unavailable

18

NORMA CLAMP - Call your local BRP dealership

275500823

Unavailable

19

Tie-Rap 180 mm

414115200

$0.11

20

FILLER NECK - Call your local BRP dealership

275500800

Unavailable

22

Phillips Screw M4 X 35

208643560

Unavailable

23

Flat Washer 4 mm

234040600

$0.55

24

Elastic Stop Nut M4

232541600

$1.15

25

Fuel Pump Ass'y

275500734

$439.99

26

Sensor Lever

275500780

$224.99

27

Fuel Filter

270600113

$33.99

28

SPECIAL NUT M150 - Call your local BRP dealership

204100257

Unavailable

29

Gasket

293250173

$18.49

30

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

31

Quick Attach 90°

275500700

$16.49

32

Norma Clamp

293650084

$4.12

33

Elbow Fitting 90°

293710105

$14.22

34

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

35

Tie Wrap 142 mm

293750002

$1.25

36

SPACER - Call your local BRP dealership This part replaces 275500801.

204560188

Unavailable
