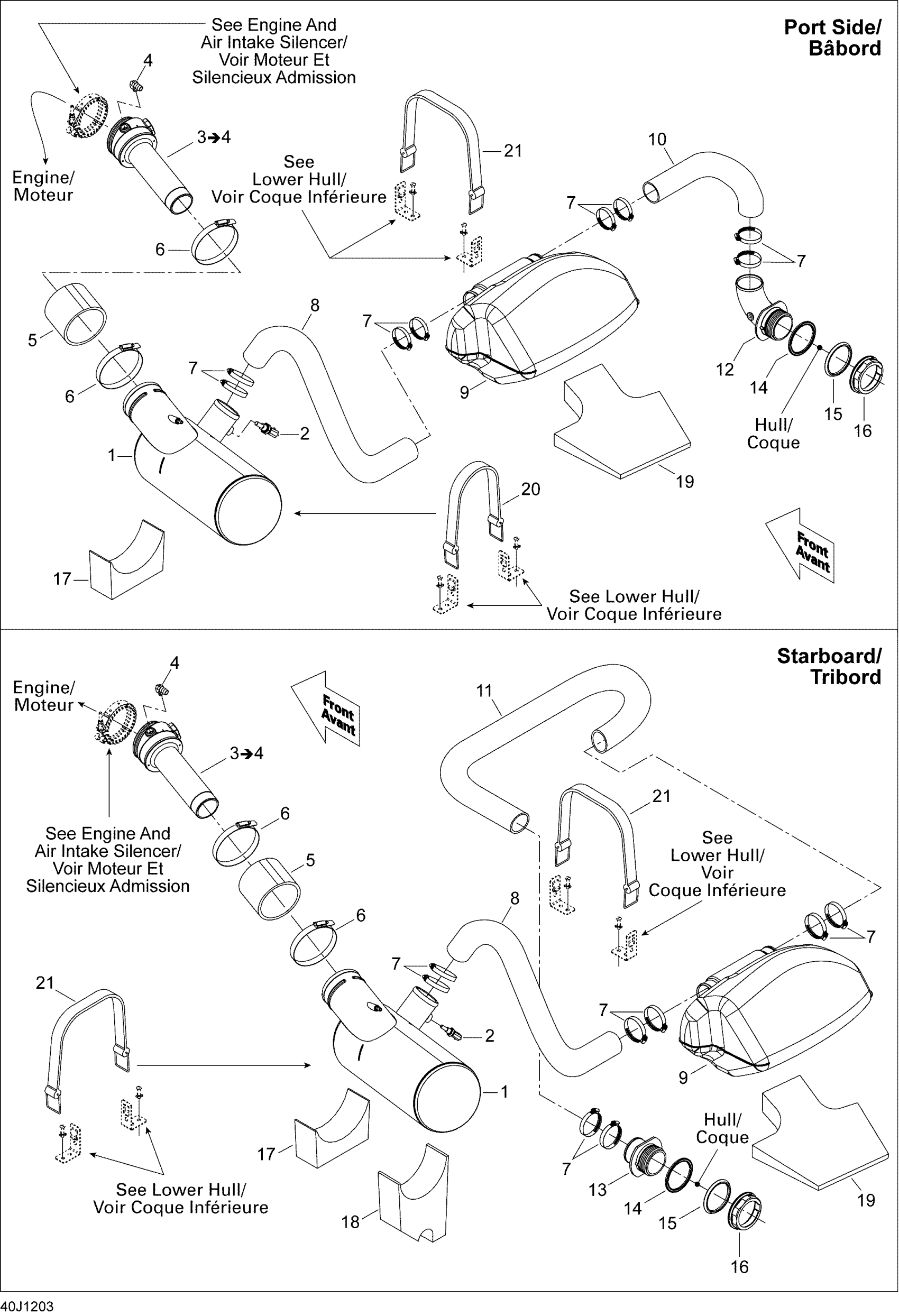

Sea-doo 200 Speedster 510, 2012 Exhaust System Diagram

#

Description
Price

1

MUFFLER_EXHAUST - Call your local BRP dealership | Without Catalyst

274001350

Unavailable

2

Temperature Sensor

278002895

$39.99

3

NEEDS DESCRIPTION | Without Catalyst, Includes 3 to 4 This part replaces 274001354.

423462834

$194.99

4

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

5

Hose | Without Catalyst

274001348

$24.49

6

Gear Clamp This part replaces 293650281.

293650202

$15.88

7

Tridon Clamp

293650179

$11.49

8

EXHAUST HOSE - Call your local BRP dealership

204340533

Unavailable

9

RH Resonator

274001045

$217.49

10

EXHAUST HOSE - Call your local BRP dealership | Port Side

204340488

Unavailable

11

EXHAUST HOSE - Call your local BRP dealership | Starboard

204340519

Unavailable

12

Exhaust Hose, Outlet

274001389

$29.49

13

Exhaust Hose, Outlet

274001391

$29.49

14

GASKET - Call your local BRP dealership

293250041

Unavailable

15

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

16

Nut 72 mm

274000224

$16.34

17

SUPPORT_EXHAUST - Call your local BRP dealership

204340502

Unavailable

18

MUFFLER SUPPORT - Call your local BRP dealership

204340521

Unavailable

19

RESONATOR SUPPORT - Call your local BRP dealership

204061381

Unavailable

20

Fuel Tank Strap

293850093

$21.99

21

STRAP - Call your local BRP dealership

293850022

Unavailable
