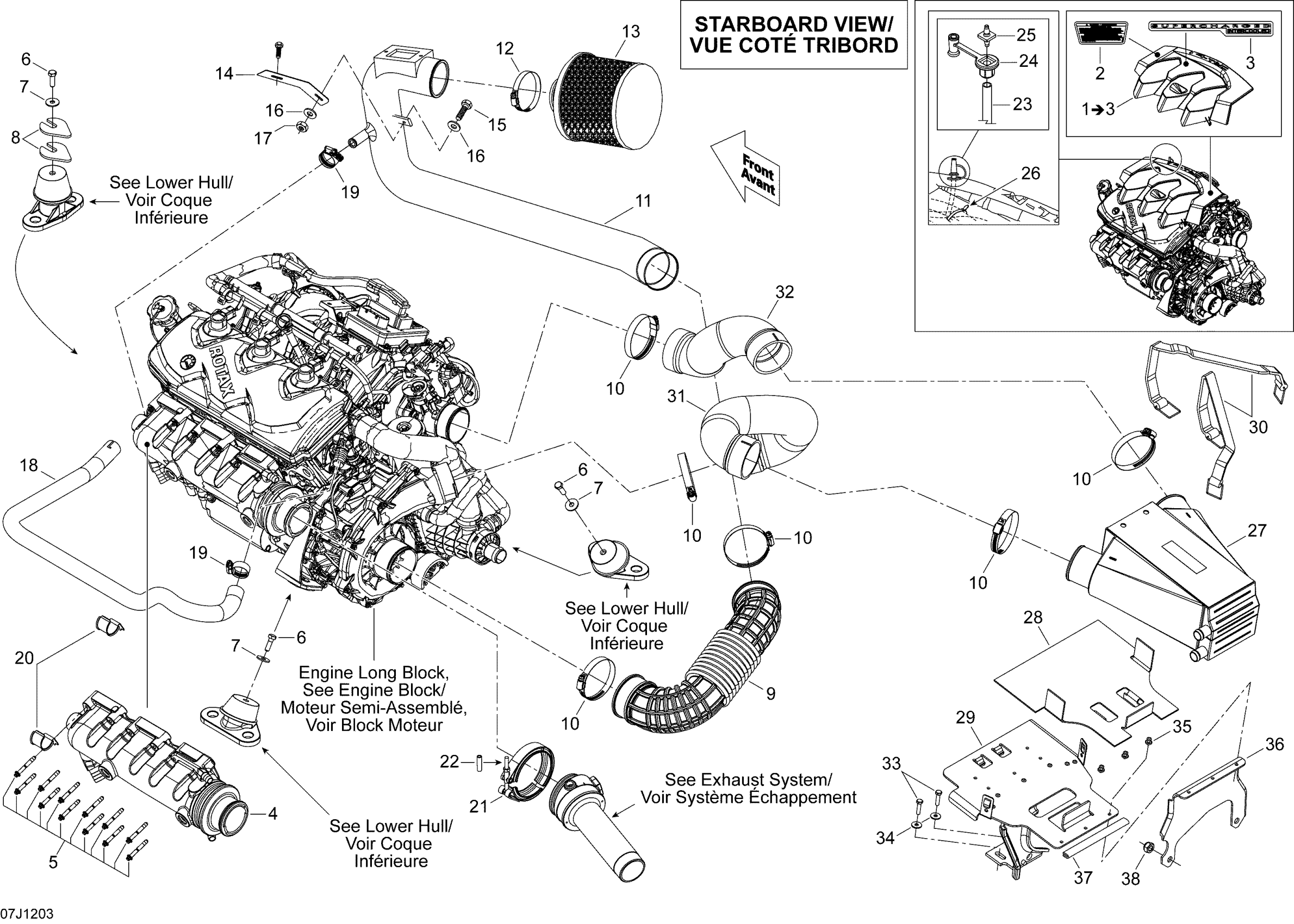

Sea-doo 200 Speedster 510, 2012 01- Engine And Air Intake Silencer Diagram

#

Description
Price

1

ENGINE COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3

270000727

Unavailable

2

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

3

IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership

219902676

Unavailable

4

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

5

Torx Flange Screw M6 X 45

420641198

$4.12

6

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

9

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

10

Tridon Clamp

293650179

$11.49

11

AIR INTAKE TUBE - Call your local BRP dealership | Without Catalyst

204250437

Unavailable

12

Tridon Clamp

293650179

$11.49

13

Air Filter This part replaces 204250436.

204250466

$137.99

14

BRACKET - Call your local BRP dealership | Without Catalyst

204250404

Unavailable

15

Hex. Screw M6 X 30

207163060

$1.48

16

Flat Washer, Stainless/Neoprene

211200055

$0.73

17

Hex. Elastic Stop Nut M6

232561600

$1.15

18

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

19

Tridon Gear Clamp

293650051

$4.19

20

Retainer

275500664

$14.75

21

Exhaust Clamp

274001417

$58.99

22

Polyurethane Hose 10000Mm Long

219704410

$56.99

23

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

23

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

24

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

25

CONNECTOR - Call your local BRP dealership

293710107

$1.09

26

Tie Wrap 142 mm

293750002

$1.25

27

Intercooler

296000379

Unavailable

28

RUBBER PAD - Call your local BRP dealership

293830124

Unavailable

29

COOLER SUPPORT - Call your local BRP dealership

270000752

Unavailable

30

Fuel Tank Strap

293850093

$21.99

31

Inlet Hose This part replaces 273000284.

273000402

$83.49

31

INLET HOSE COOLER - Call your local BRP dealership | Port Side

204250475

Unavailable

32

OUTLET HOSE COOLER - Call your local BRP dealership | Starboard

204250476

Unavailable

32

OUTLET HOSE COOLER - Call your local BRP dealership | Starboard

204250476

Unavailable

33

Hex. Screw M6 X 25

207162560

$1.47

34

Flat Washer M6, Stainless

234062600

$0.77

35

Pop Rivet 3/16"

293150039

$1.49

36

Rear Support

204250443

Unavailable

37

EDGE TRIM 1/4 - Call your local BRP dealership

204130361

Unavailable

38

Elastic Stop Nut M10, Brass

232501200

$2.64
