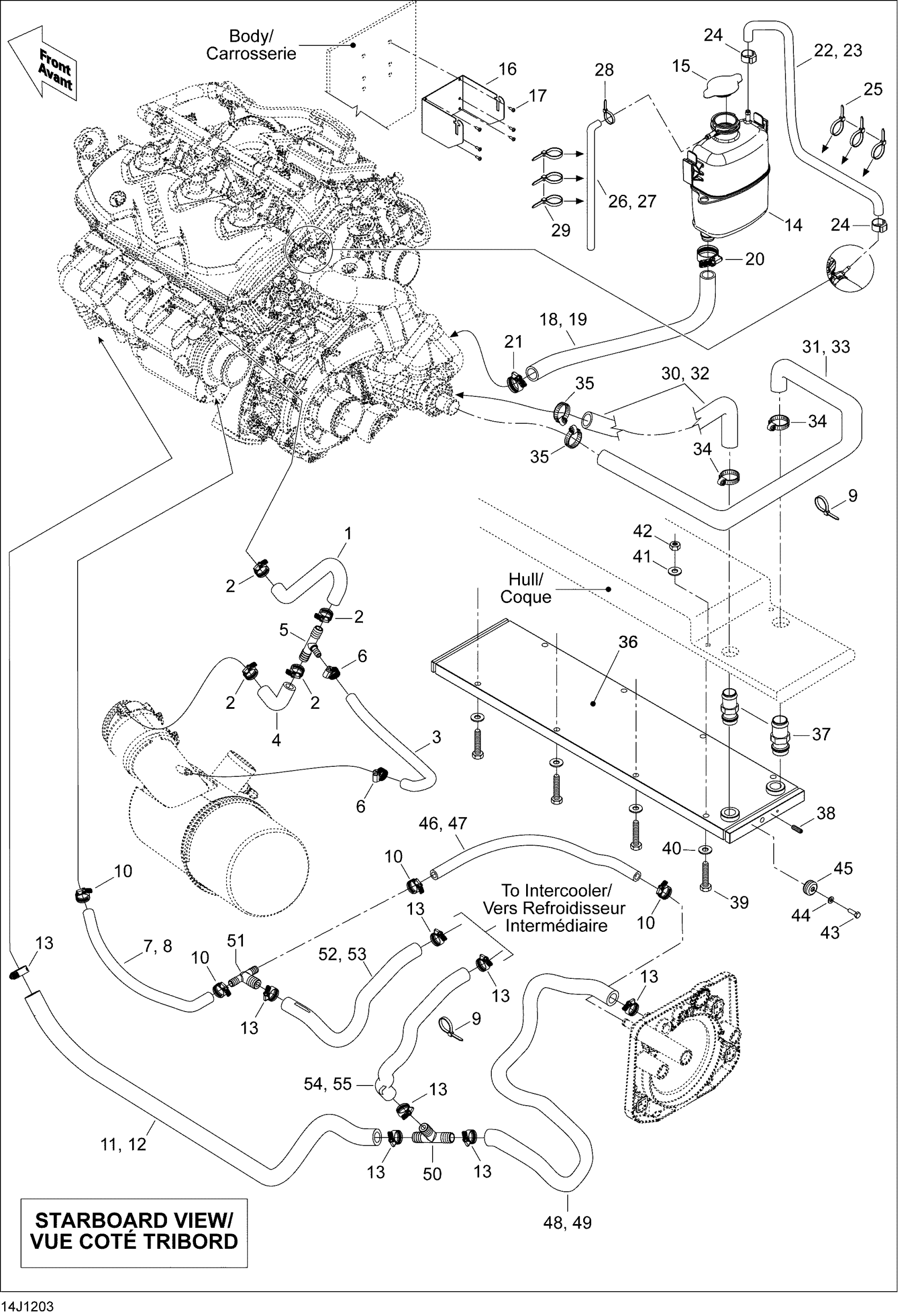

Sea-doo 200 Speedster 510, 2012 Cooling System Diagram

#

Description
Price

1

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

2

Tridon Gear Clamp

293650172

$3.09

3

Formed Hose | Without Catalyst

276000246

$19.49

4

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

5

T-Fitting

293710116

$17.62

6

Tridon Gear Clamp

293650171

$3.09

7

Was 276000001 Hose 12.5 mm

219704394

$51.99

8

Was 276000001 Hose 12.5 mm

219704394

$51.99

9

Tie Wrap 368 mm

293750008

$1.04

10

Tridon Gear Clamp

293650172

$3.09

11

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

12

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

13

Tridon Gear Clamp

293650051

$4.19

14

Coolant Tank

276000086

$109.99

15

Pressure Cap | Includes 720 to 720a

276000100

$25.99

16

COOLANT TANK BRACKET - Call your local BRP dealership

276000288

Unavailable

17

SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership

204100073

Unavailable

18

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

19

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

20

Tridon Gear Clamp

293650051

$4.19

21

Tridon Gear Clamp

293650019

$5.82

22

Was 275500549 Hose 1/4"

219704357

$194.99

23

Was 275500549 Hose 1/4"

219704357

$194.99

24

Oetiker Gear Clamp

293650025

$3.09

25

Tie Wrap 142 mm

293750002

$1.25

26

Polyurethane Hose 10000Mm Long

219704410

$56.99

27

Polyurethane Hose 10000Mm Long

219704410

$56.99

28

Tie Wrap 94 mm | 4X4

293750001

$1.03

29

Tie Wrap 142 mm

293750002

$1.25

30

HOSE 25.4 MM, METER - Call your local BRP dealership

204300199

Unavailable

31

Ride Plate Hose This part replaces 204300172.

423465058

$43.99

32

HOSE 25.4 MM, METER - Call your local BRP dealership

204300199

Unavailable

33

Starboard Formed Hose - Call your local BRP dealership

204300174

Unavailable

34

Tridon Gear Clamp

293650045

$5.69

35

Tridon Gear Clamp

293650045

$5.69

36

HEAT EXCHANGER - Call your local BRP dealership

276000299

Unavailable

37

Hose Fitting - Call your local BRP dealership

204300133

Unavailable

38

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

39

SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership

205405060

Unavailable

40

Flat Washer 10 mm, Stainless

234000600

$1.46

41

Flat Washer 10 mm, Stainless

234002600

$2.22

42

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

43

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

44

Stainless Flat Washer M6

234061600

$0.33

45

Anode Zinc

271001813

$18.99

46

Was 276000001 Hose 12.5 mm

219704394

$51.99

47

Was 276000001 Hose 12.5 mm

219704394

$51.99

48

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

49

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

50

T-Fitting

293710131

$15.87

51

T-Fitting

293710132

$12.65

52

FORMED HOSE - Call your local BRP dealership

276000242

Unavailable

53

FORMED HOSE - Call your local BRP dealership

276000242

Unavailable

54

FORMED HOSE - Call your local BRP dealership

276000242

Unavailable

55

FORMED HOSE - Call your local BRP dealership

276000242

Unavailable
