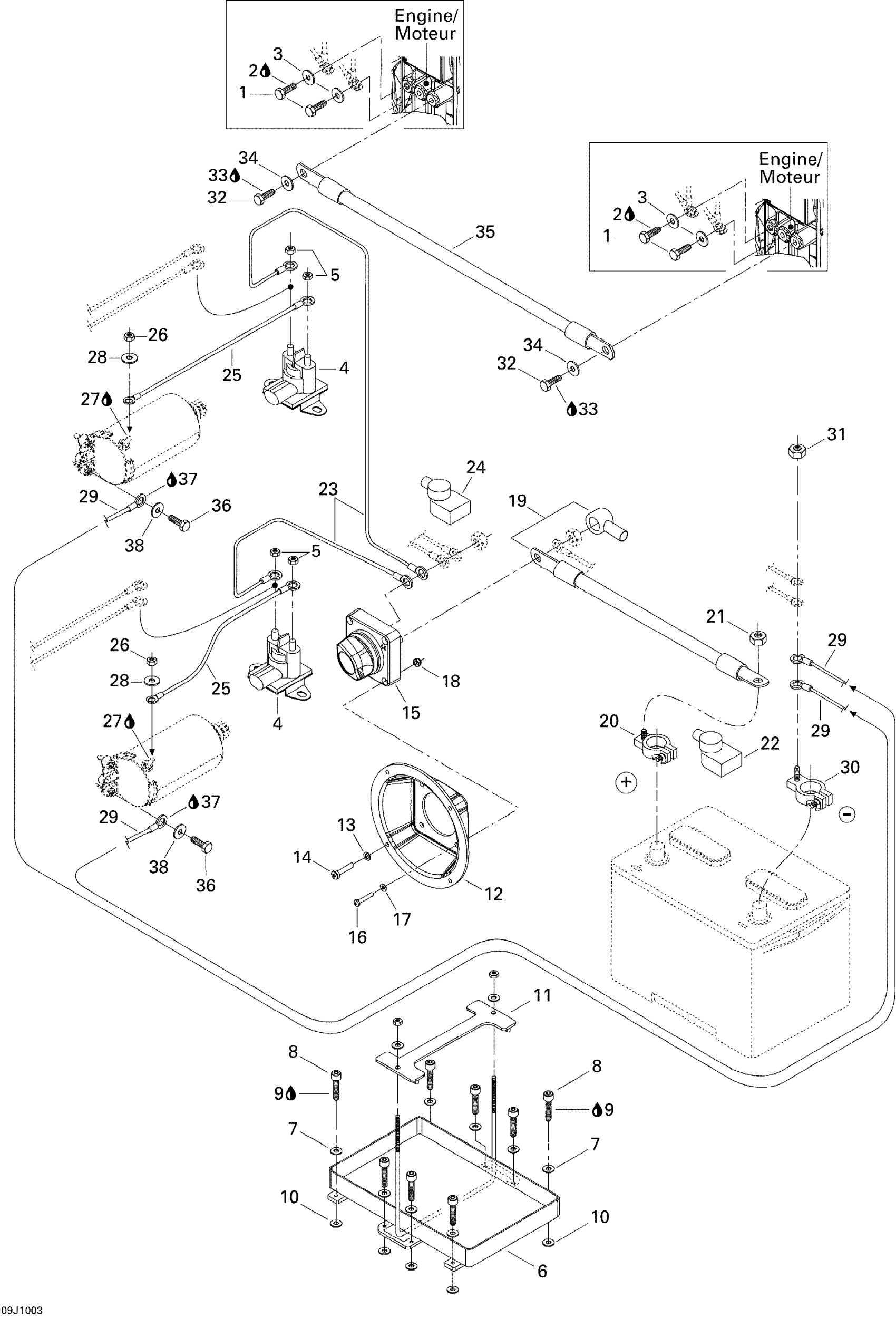

Sea-doo 200 Speedster 510, 2 x 255 (1503HO), 2010 Electrical System Diagram

#

Description
Price

1

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Stainless Flat Washer M6

234061600

$0.33

4

Starter Relay

278003012

$42.49

5

Hex. Elastic Stop Nut M6

232561600

$1.15

6

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

7

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

8

Socket Head Screw M6 X 25

205062560

$1.69

9

Loctite 243, 10 ml

293800060

$21.49

10

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

11

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

12

SWITCH SUPPORT - Call your local BRP dealership

204471341

Unavailable

13

Flat Washer 4 mm, Stainless

234041600

$1.15

14

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

15

BATTERY SWITCH - Call your local BRP dealership

204471339

Unavailable

16

Phillips Screw M5 X 25

208652560

$3.39

17

Flat Washer M5, Stainless

234051600

$0.77

18

Hex. Elastic Nut M5 | X

232551600

$1.15

19

POSITIVE SWITCH CABLE - Call your local BRP dealership

204471422

Unavailable

20

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

21

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

22

RED BOOT - Call your local BRP dealership

204470269

Unavailable

23

RED CABLE - Call your local BRP dealership

204471423

Unavailable

23

RED CABLE - Call your local BRP dealership

204471424

Unavailable

24

RED BOOT - Call your local BRP dealership

204470269

Unavailable

25

Red Cable

204470852

Unavailable

25

RED CABLE - Call your local BRP dealership

204470798

Unavailable

26

Hex. Elastic Stop Nut M6

232561600

$1.15

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Stainless Flat Washer M6

234061600

$0.33

29

GROUND CABLE, PORT SIDE - Call your local BRP dealership

204470854

Unavailable

29

GROUND CABLE, STARBOARD - Call your local BRP dealership

204470840

Unavailable

30

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

31

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

32

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Flat Washer M6, Stainless

234062600

$0.77

35

GROUND CABLE - Call your local BRP dealership

204470839

Unavailable

36

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Stainless Flat Washer M6

234061600

$0.33
