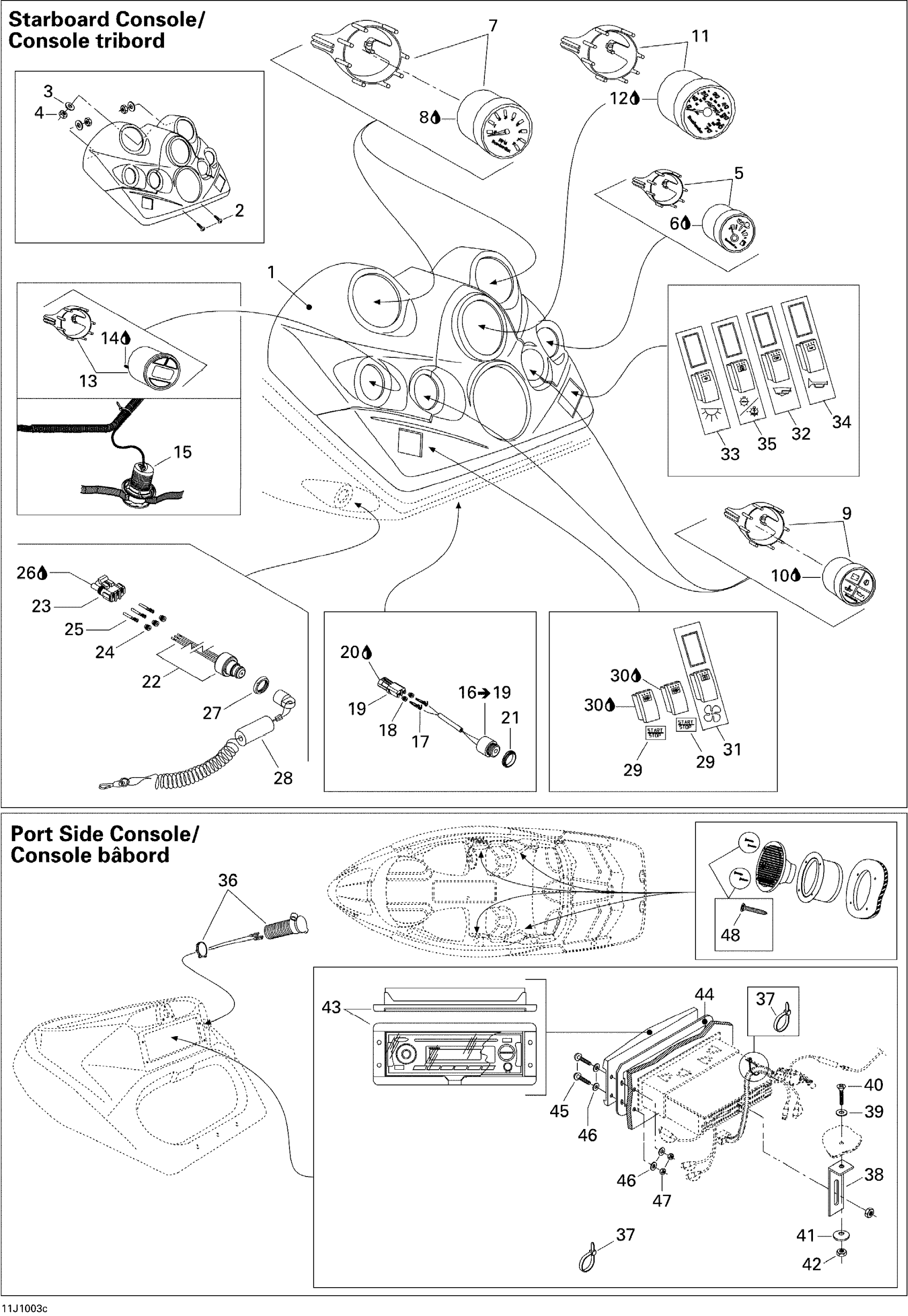

Sea-doo 200 Speedster 510, 2 x 255 (1503HO), 2010 10- Electrical Accessories 3 Diagram

#

Description
Price

1

FASCIA - Call your local BRP dealership

204471392

Unavailable

2

SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership

202000203

Unavailable

3

Flat Washer 8 mm, Stainless

234082600

$2.43

4

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

5

FUEL GAUGE - Call your local BRP dealership

204471128

Unavailable

6

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

7

TACHOMETER GAUGE - Call your local BRP dealership

204470958

$409.99

8

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

9

ENGINE WARNING GAUGE - Call your local BRP dealership

204471130

Unavailable

10

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

11

Speed Gauge

204470957

$479.99

12

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

13

DEPTH GAUGE - Call your local BRP dealership

204470917

Unavailable

14

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

15

Depth Sensor

204471292

$194.99

16

Buzzer Ass'y

204470913

$92.99

17

Male Terminal | XT Models

278000222

$3.19

18

Wire Seal

278000218

$4.39

19

Female Housing, 2 Circuits

278000217

$9.59

20

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

21

Buzzer Nut

278000707

Unavailable

22

Safety Switch This part replaces 278002325.

278002773

$114.99

23

Male Housing, 3 Circuits

278000273

$9.59

24

Wire Seal

278000218

$4.39

25

Female Terminal

278000223

$3.19

26

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

27

Safety Nut (DESS Switch)

278002963

$3.28

28

Safety Lanyard

204471206

$56.99

29

START/STOP SWITCH - Call your local BRP dealership

204471178

Unavailable

30

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

31

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

32

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

33

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

34

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

35

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

36

DC Outlet

710001248

$37.99

37

Tie Wrap 94 mm | 4X4

293750001

$1.03

38

RADIO SUPPORT - Call your local BRP dealership

204470837

Unavailable

39

Stainless Flat Washer M6

234061600

$0.33

40

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208662060

Unavailable

41

Flat Washer M6, Stainless

234062600

$0.77

42

Hex. Elastic Stop Nut M6

232561600

$1.15

43

Radio Cover

204470266

Unavailable

44

RADIO COVER GASKET - Call your local BRP dealership

204470257

Unavailable

45

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

46

Flat Washer 4 mm

234040600

$0.55

47

Elastic Stop Nut M4

232541600

$1.15

48

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable
