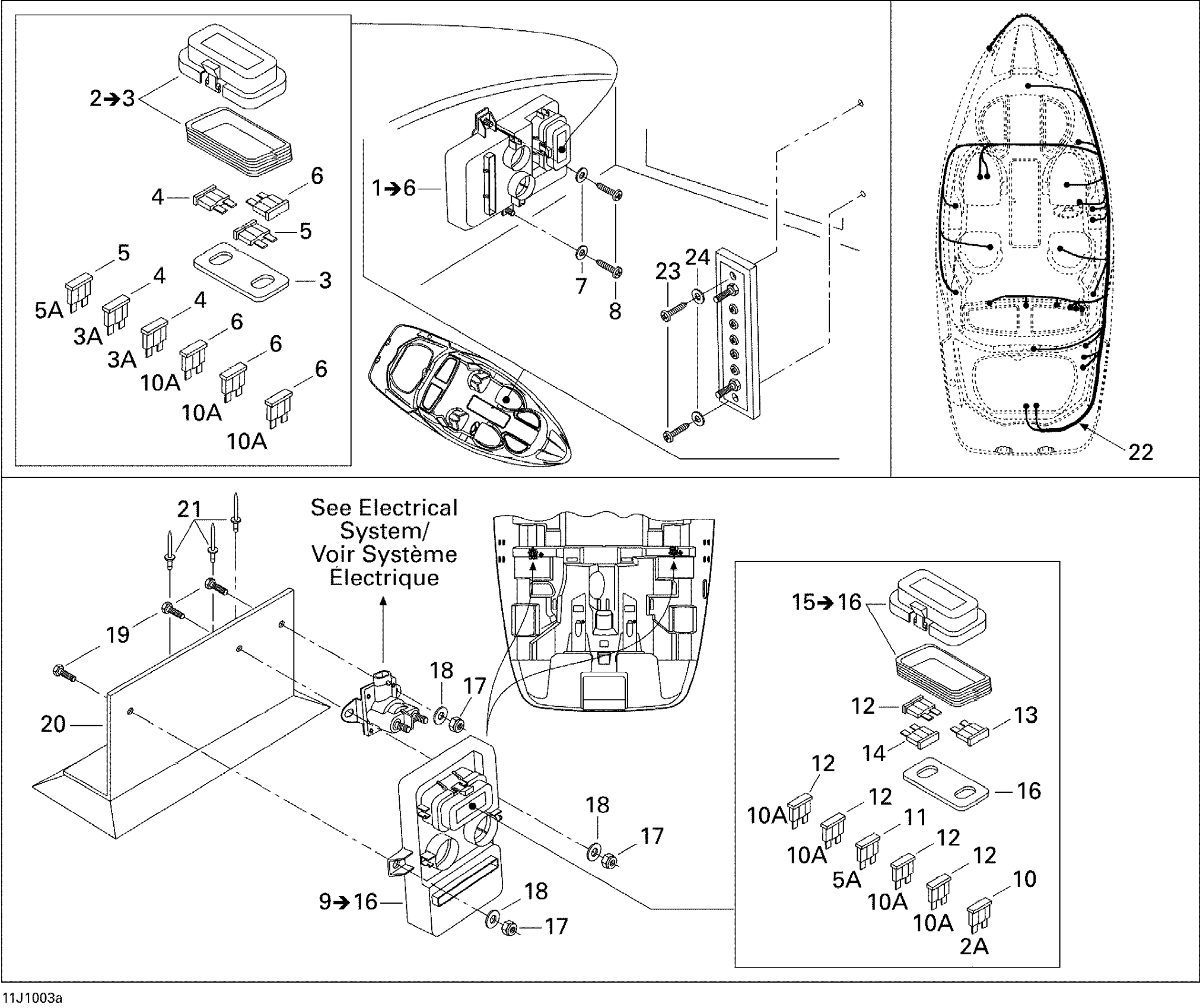

Sea-doo 200 Speedster 510, 2 x 255 (1503HO), 2010 Electrical Accessories 1 Diagram

#

Description
Price

1

TWIN ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6, North America

204471262

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

3

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

4

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

5

Fuse, 5 Amperes | CE

278000344

$3.28

6

Fuse, 10 Amperes | North America

278001197

$2.21

7

Flat Washer M6, Stainless

234062600

$0.77

8

TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership

204100203

Unavailable

9

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

10

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

11

Fuse, 5 Amperes | CE

278000344

$3.28

12

Fuse, 10 Amperes | North America

278001197

$2.21

13

Fuse, 20 Amperes

409003900

$3.28

14

Fuse, 30 Amperes

410917200

$3.28

15

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

16

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

17

Hex. Elastic Stop Nut M6

232561600

$1.15

18

Flat Washer M6, Stainless

234062600

$0.77

19

Hex. Forming Screw M6 X 20

207162060

$1.29

20

BRACKET - Call your local BRP dealership

204471071

Unavailable

21

Avdel Rivet 3/16"

293150037

$0.56

22

MAIN HARNESS (ACCESSORY HARNESS) - Call your local BRP dealership | North America

204471421

Unavailable

23

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

24

Flat Washer 4 mm, Stainless

234041600

$1.15
