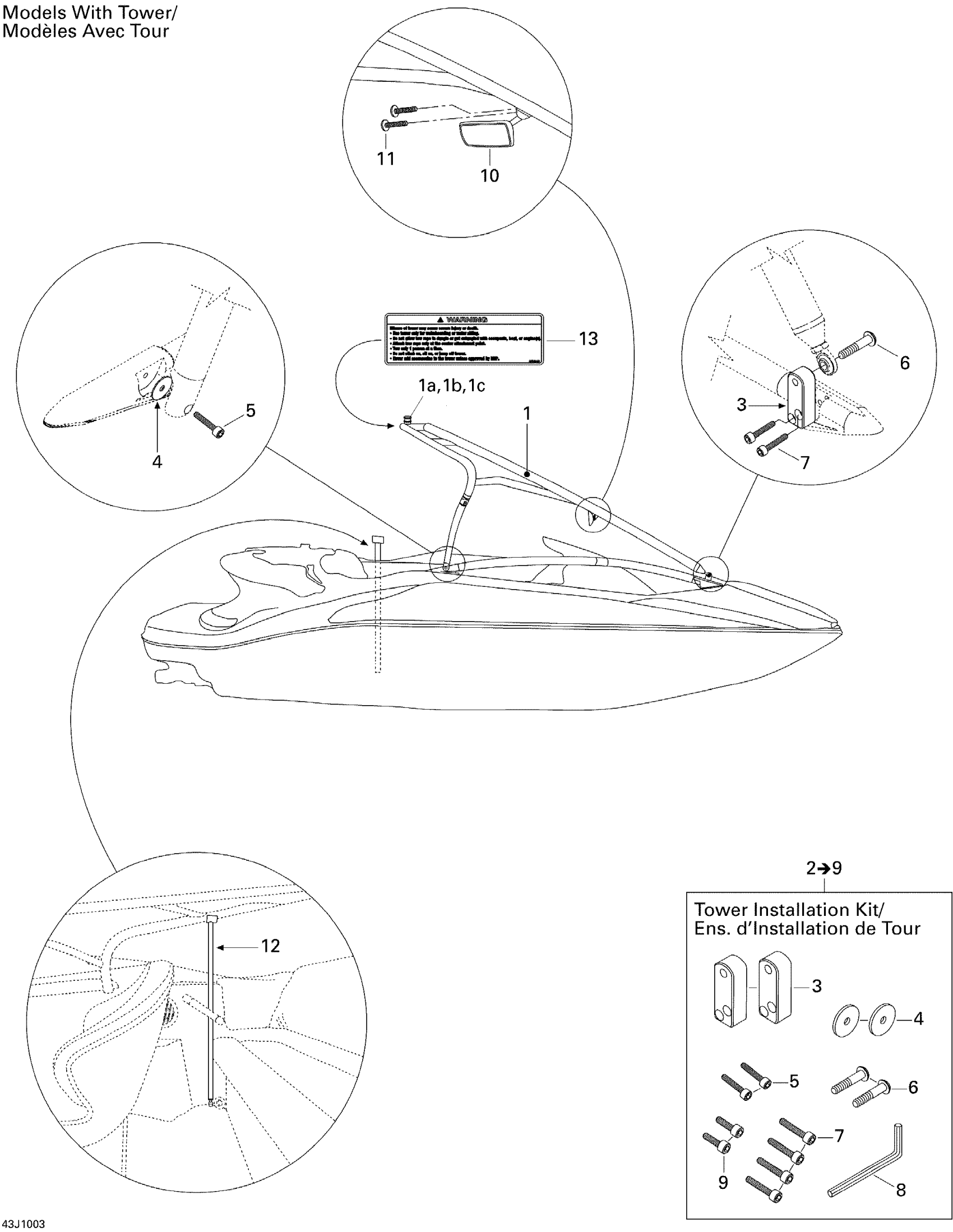

Sea-doo 200 Speedster 510, 2 x 255 (1503HO), 2010 09- Tower Diagram

#

Description
Price

1

TOWER ASS'Y - Call your local BRP dealership

204950120

Unavailable

1a

NYLON SWIVEL FOR TOWER 204950120 - Call your local BRP dealership

295501114

Unavailable

1b

BOLT FOR TOWER 204950120 - Call your local BRP dealership

295501115

Unavailable

1c

SKI TOW CAP FOR TOWER 204950120 - Call your local BRP dealership

295501116

Unavailable

2

TOWER INSTALLATION HARDWARE KIT - Call your local BRP dealership | Includes 2 to 9

204950190

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

SOCKET HEAD SCREW 3/8-16 X 1-1/2 - Call your local BRP dealership

204100094

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

SOCKET SCREW, 3/8-16 X 1 - Call your local BRP dealership

204100194

Unavailable

10

SKI MIRROR - Call your local BRP dealership This part replaces 204071420.

295100386

Unavailable

11

PHILLIPS SCREW 10-32 X 1? - Call your local BRP dealership

204100129

Unavailable

12

TOWER SUPPORT - Call your local BRP dealership

204072003

Unavailable

13

WARNING LABEL, TOWER - Call your local BRP dealership | With Tower

204902068

Unavailable
