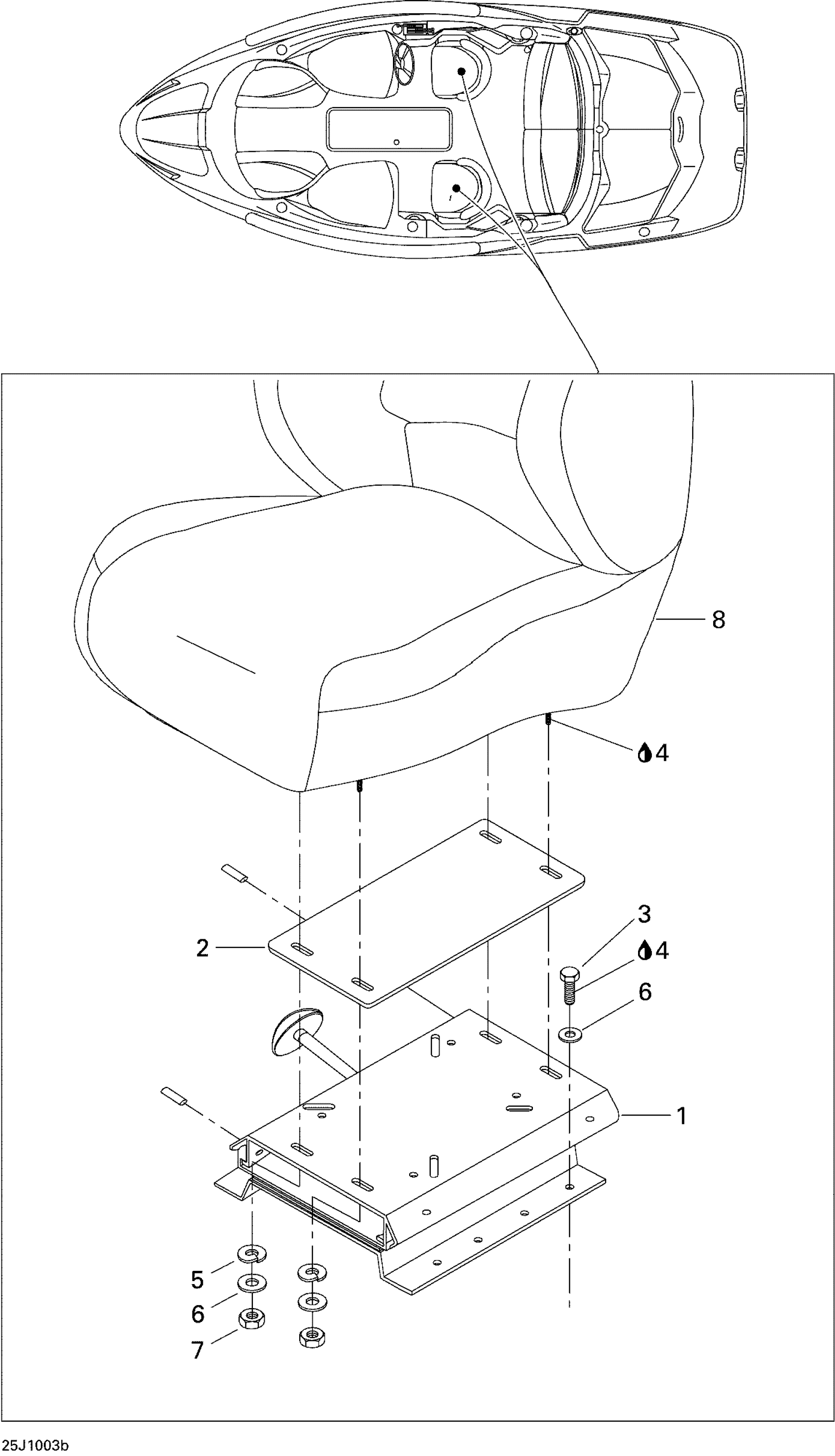

Sea-doo 200 Speedster 510, 2 x 255 (1503HO), 2010 Seat 2 Diagram

#

Description

Price

1

SEAT BASE, PORT SIDE - Call your local BRP dealership

204614717

Unavailable

1

SEAT BASE, STARBOARD - Call your local BRP dealership

204614718

Unavailable

2

SEAT BASE SHIM - Call your local BRP dealership

204614821

Unavailable

3

Hex. Screw M6 X 35

207163560

$1.17

4

Loctite 243, 10 ml

293800060

$20.77

5

Lock Washer 1/4”

211200025

$1.04

6

Flat Washer M6, Stainless

234062600

$0.64

7

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

8

Bucket Seat Ass'y

204614891

Unavailable
