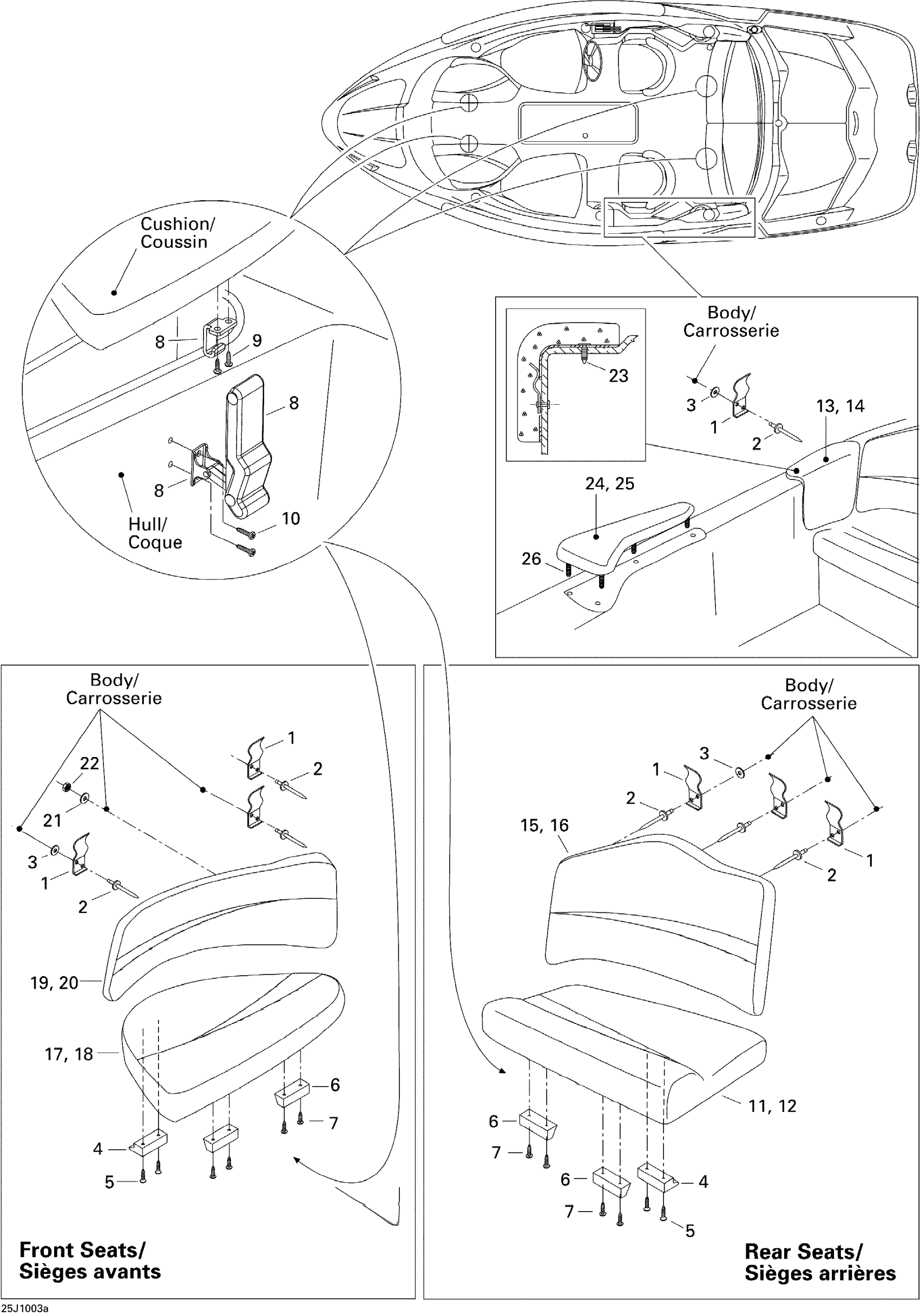

Sea-doo 200 Speedster 510, 2 x 255 (1503HO), 2010 09- Seat 1 Diagram

#

Description
Price

1

SEAT SUPPORT - Call your local BRP dealership

204613998

Unavailable

2

Pop Rivet 3/16"

293150043

$2.09

3

Flat Washer 5 mm, Stainless

234052400

$2.85

4

SEAT LATCH - Call your local BRP dealership

204611940

Unavailable

5

SCREW 1/4?-20 X 2? - Call your local BRP dealership

204100039

Unavailable

6

LATCH - Call your local BRP dealership

204611805

Unavailable

7

SCREW #8 X 1-1/4? - Call your local BRP dealership

204100081

Unavailable

8

CAM LATCH - Call your local BRP dealership

204615024

Unavailable

9

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

10

PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

209641960

Unavailable

11

REAR SEAT ASS'Y, PORT - Call your local BRP dealership | Port

204615025

Unavailable

12

REAR SEAT ASS'Y, STARBOARD - Call your local BRP dealership | Starboard

204615026

Unavailable

13

ARMREST, PORT SIDE - Call your local BRP dealership | Port

204613674

Unavailable

14

ARMREST, STARBOARD - Call your local BRP dealership | Starboard

204613672

Unavailable

15

REAR BACKREST, PORT - Call your local BRP dealership | Port

204615034

Unavailable

16

REAR BACKREST, STARBOARD - Call your local BRP dealership | Starboard

204615037

Unavailable

17

Front Seat Ass'y, Port | Port

204615027

Unavailable

18

Front Seat Ass'y, Starboard | Starboard

204615028

Unavailable

19

Prow Backrest Ass'y, Port | Port

204614877

Unavailable

20

PROW BACKREST ASS'Y, STARBOARD - Call your local BRP dealership | Starboard

204614880

Unavailable

21

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

22

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

23

Dart

293730021

$7.79

24

ARM SUPPORT ASS'Y, LH - Call your local BRP dealership | Port

204615039

Unavailable

25

ARM SUPPORT ASS'Y, RH - Call your local BRP dealership | Starboard

204615042

Unavailable

26

Dart 1", White | STD

204130264

$14.82
