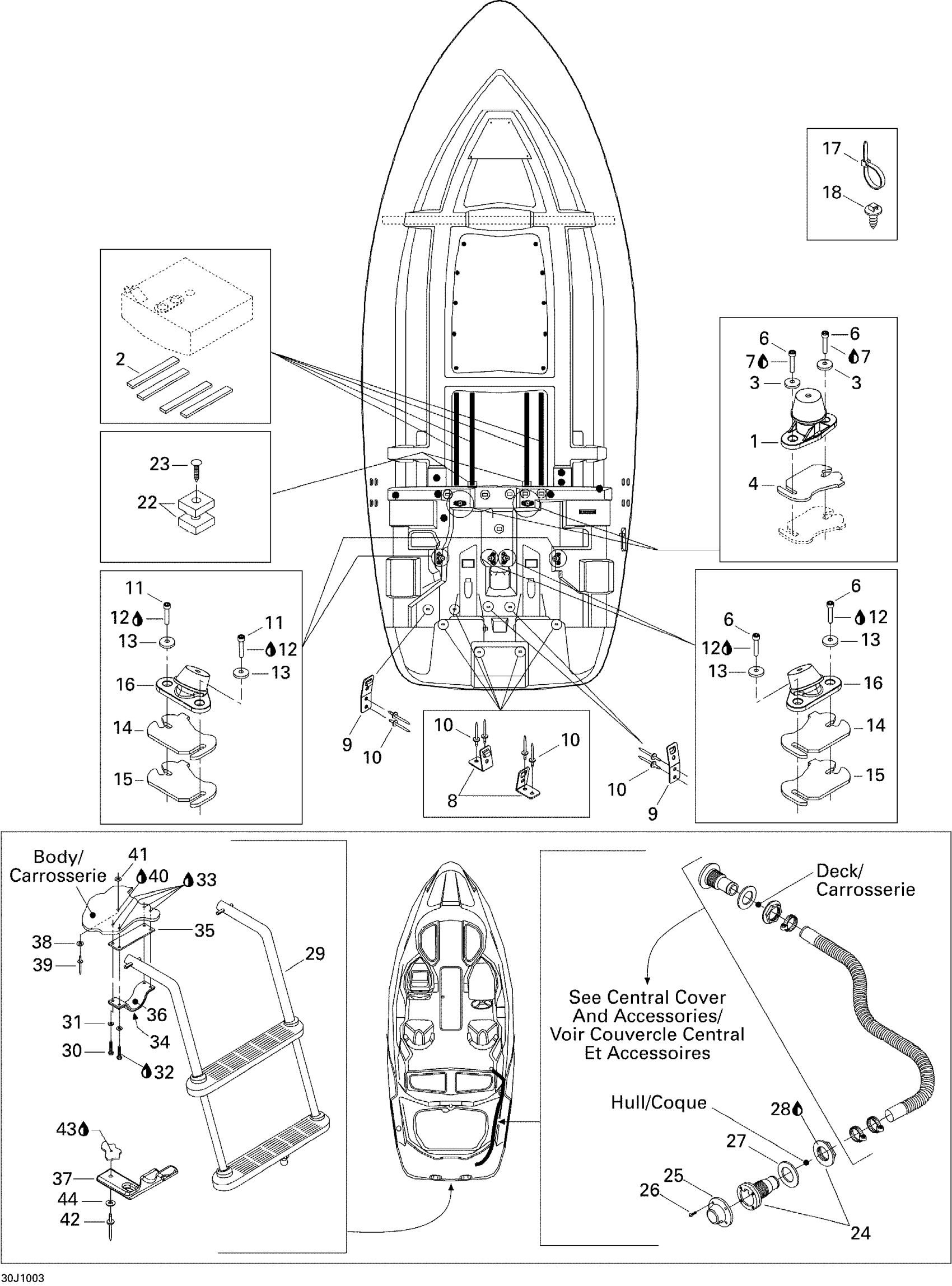

Sea-doo 200 Speedster 510, 2 x 255 (1503HO), 2010 Lower Hull And Ladder Diagram

#

Description
Price

1

Engine Support Ass'y

270001096

$97.99

2

PROTECTOR PAD - Call your local BRP dealership

204560115

Unavailable

3

Cone Washer

250200018

$5.61

4

Shim 0.3 mm - Call your local BRP dealership

204250048

Unavailable

6

Socket Head Screw M8 X 45

205084560

$3.59

7

Loctite 243, 10 ml

293800060

$21.49

8

Strap Clip 90°

204060017

Unavailable

9

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

10

Avdel Rivet 3/16"

293150037

$0.56

11

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

12

Loctite 243, 10 ml

293800060

$21.49

13

Cone Washer

250200018

$5.61

14

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

15

Shim 1.3 mm

270000762

$12.99

16

Engine Support Ass'y

270001081

$109.99

17

Tie Wrap 368 mm

293750008

$1.04

17

Tie-Rap 180 mm

414115200

$0.11

18

Mount Dart

293730040

$1.04

22

RUBBER PAD - Call your local BRP dealership

204060684

Unavailable

23

Black Dart

293730014

$0.99

24

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

25

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

26

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

27

GASKET - Call your local BRP dealership

292800106

Unavailable

28

Silicone Sealant 51388, 300 ml

296000309

$36.99

29

LADDER - Call your local BRP dealership

204061385

Unavailable

30

Hex. Screw M6 X 35

207163560

$1.49

31

Lock Washer Helical M6

234161601

$1.15

32

Loctite 243, 10 ml

293800060

$21.49

33

Silicone Sealant 51388, 300 ml

296000309

$36.99

34

LADDER CLIP - Call your local BRP dealership

204060055

Unavailable

35

PROTECTOR 97 - Call your local BRP dealership

204060057

Unavailable

36

PROTECTOR 158 - Call your local BRP dealership

204060056

Unavailable

37

Hood Latch

570027100

$13.49

38

Flat Washer M6, Stainless

234062600

$0.77

39

Pop Rivet 3/16"

293150043

$2.09

40

Silicone Sealant 51388, 300 ml

296000309

$36.99

41

Flat Washer M5, Stainless

234051600

$0.77

42

Pop Rivet 3/16"

293150013

$1.37

43

Silicone Sealant 51388, 300 ml

296000309

$36.99

44

Flat Washer 5 mm, Stainless

234052600

$0.77
