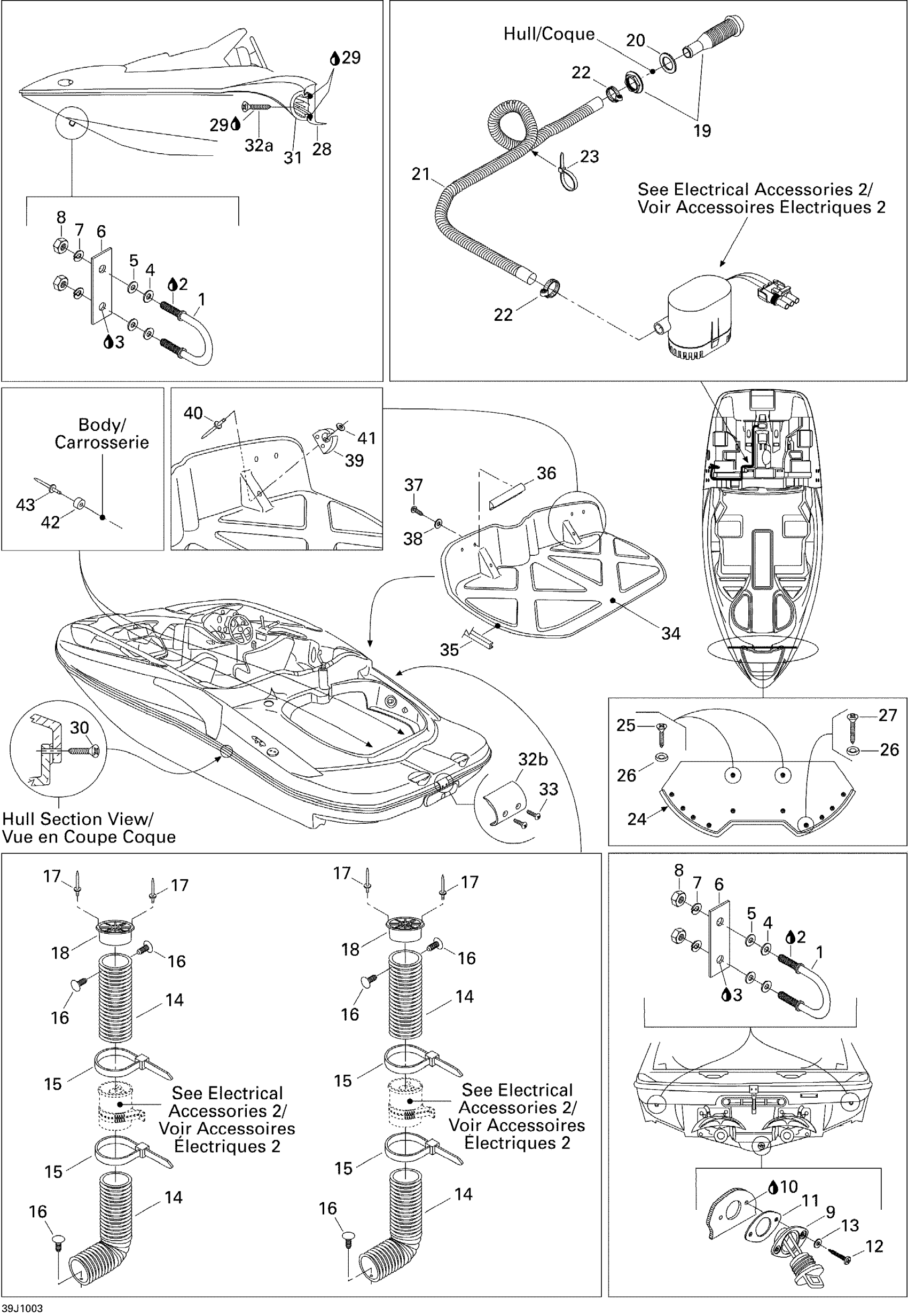

Sea-doo 200 Speedster 510, 2 x 255 (1503HO), 2010 Hull Diagram

#

Description
Price

1

U-Clamp

292000933

$59.49

2

Loctite 271, 10 ml

293800005

$26.99

3

Silicone Sealant 51388, 300 ml

296000309

$36.99

4

Flat Washer M8.5 x 18

293050001

$3.07

5

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

6

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

7

Lock Washer 8 mm, Stainless

234181601

$0.55

8

Hex. Nut M8

232081600

$1.47

9

Drain Plug

292000187

$14.49

10

Silicone Sealant 51388, 300 ml

296000309

$36.99

11

GASKET - Call your local BRP dealership

293250030

Unavailable

12

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

13

Flat Washer 4 mm, Stainless

234041600

$1.15

14

Was 204050122 Vent Hose 4"

219704358

$25.99

15

Tie Rap, 533 mm

293750047

$2.09

16

Black, Dart

293730006

$0.99

17

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

18

VENT - 4 OPEN / WHT. - Call your local BRP dealership This part replaces 204050533.

204050803

Unavailable

19

Fitting

293710162

$13.49

20

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

21

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

22

Tridon Clamp

293650016

$10.99

23

Tie-Rap 180 mm

414115200

$0.11

24

TRIM LOCK, METER - Call your local BRP dealership

204130079

Unavailable

25

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

26

FINITION WASHER - Call your local BRP dealership

204100057

Unavailable

27

PHILLIPS TAPPING SCREW M4.8 X 51 - Call your local BRP dealership

250000087

Unavailable

28

BUMPER, BLACK - Call your local BRP dealership

262000198

Unavailable

29

Silicone Sealant 51388, 300 ml

296000309

$36.99

30

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

31

RUBRAIL INSERT 50FT - Call your local BRP dealership

204061394

Unavailable

32a

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

32b

BUMPER COVER, BLACK - Call your local BRP dealership

204050780

Unavailable

33

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

34

ENGINE ACCESS COVER - Call your local BRP dealership

269700130

Unavailable

35

Seal Tray 1000Mm Long

219704368

$13.99

36

Black, Handle - Call your local BRP dealership

204050159

Unavailable

37

Hex. Flange Screw K40 X 16

241141660

$1.48

38

Flat Washer 4 mm, Stainless

234042600

$1.15

39

Pole Support

291000642

Unavailable

40

Pop Rivet 3/16"

293150005

$0.52

41

Flat Washer M5, Stainless

234051600

$0.77

42

Rubber Stopper

293830043

Unavailable

43

RIVET - Call your local BRP dealership

293150065

Unavailable
