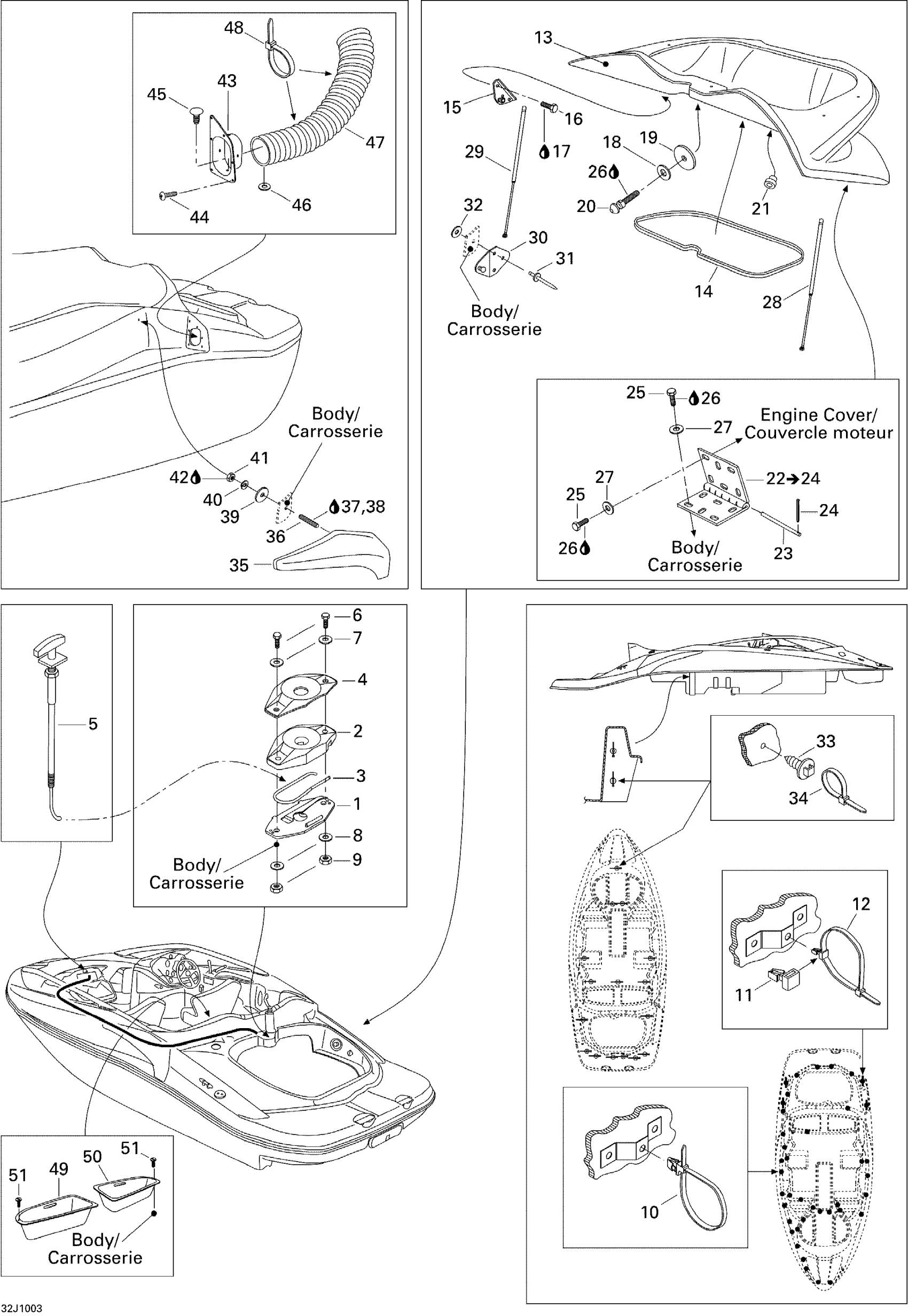

Sea-doo 200 Speedster 510, 2 x 255 (1503HO), 2010 Engine Compartment And Accessories Diagram

#

Description
Price

1

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

2

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

3

SPRING - Call your local BRP dealership

204070038

Unavailable

4

LATCH PROTECTOR - Call your local BRP dealership

204070952

Unavailable

5

LATCH CABLE - Call your local BRP dealership

204070049

Unavailable

6

Hex. Screw M6 X 35

207163560

$1.49

7

Stainless Flat Washer M6

234061600

$0.33

8

Flat Washer M6, Stainless

234062600

$0.77

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

TIE RAP WITH DART - Call your local BRP dealership

204130098

Unavailable

11

DART, BLACK - Call your local BRP dealership

204130099

Unavailable

12

Tie Wrap 368 mm

293750008

$1.04

13

Engine Cover

204073208

Unavailable

14

D-SEAL RUBBER - Call your local BRP dealership

204130083

Unavailable

15

SHOCK BRACKET - Call your local BRP dealership

204070065

Unavailable

16

Hex. Screw M4 X 16 | Europe

207141660

$1.47

17

Loctite 243, 10 ml

293800060

$21.49

18

Flat Washer 10 mm, Stainless

234002600

$2.22

19

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

20

Latch Stud

204130146

$154.99

21

GROMMET - Call your local BRP dealership

293720017

Unavailable

22

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

23

HINGE ROD - Call your local BRP dealership

204070204

Unavailable

24

Cotter Pin M2.5 X 12

204070205

Unavailable

25

Hex. Screw M6 X 25

207162560

$1.47

26

Loctite 243, 10 ml

293800060

$21.49

27

Stainless Flat Washer M6

234061600

$0.33

28

GAS SHOCK - Call your local BRP dealership | Port Side

204071964

Unavailable

29

GAS SHOCK - Call your local BRP dealership

204071959

Unavailable

30

SHOCK BRACKET - Call your local BRP dealership

204070065

Unavailable

31

RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.

293150201

Unavailable

32

Flat Washer M5, Stainless

234051600

$0.77

33

Mount Dart

293730040

$1.04

34

Tie-Rap 180 mm

414115200

$0.11

35

INLET VENT COVER, PORT SIDE - Call your local BRP dealership

204072463

Unavailable

35

INLET VENT COVER, STARBOARD - Call your local BRP dealership

204072464

Unavailable

36

SOCKET SET SCREW, M6 X 35 - Call your local BRP dealership

204100159

Unavailable

37

Was 293800041 Loctite Primer 7649

219704458

$39.99

38

Loctite 271, 10 ml

293800005

$26.99

39

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

40

Lock Washer 1/4”

211200025

$1.29

41

Hex. Nut M6

232061600

$1.15

42

Loctite 243, 10 ml

293800060

$21.49

43

INLET VENT, PORT SIDE - Call your local BRP dealership

204071856

Unavailable

43

INLET VENT, STARBOARD - Call your local BRP dealership

204071857

Unavailable

44

TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

250000090

Unavailable

45

Black, Dart

293730006

$0.99

46

Flat Washer M6, Stainless

234062600

$0.77

47

Was 204050122 Vent Hose 4"

219704358

$25.99

48

Tie Rap, 533 mm

293750047

$2.09

49

REAR STORAGE TRAY, PORT SIDE - Call your local BRP dealership

204071858

Unavailable

50

REAR STORAGE TRAY, STARBOARD - Call your local BRP dealership

204073076

Unavailable

51

SLOTTED BOLT 1/4?-20 X 1? - Call your local BRP dealership

204100095

Unavailable
