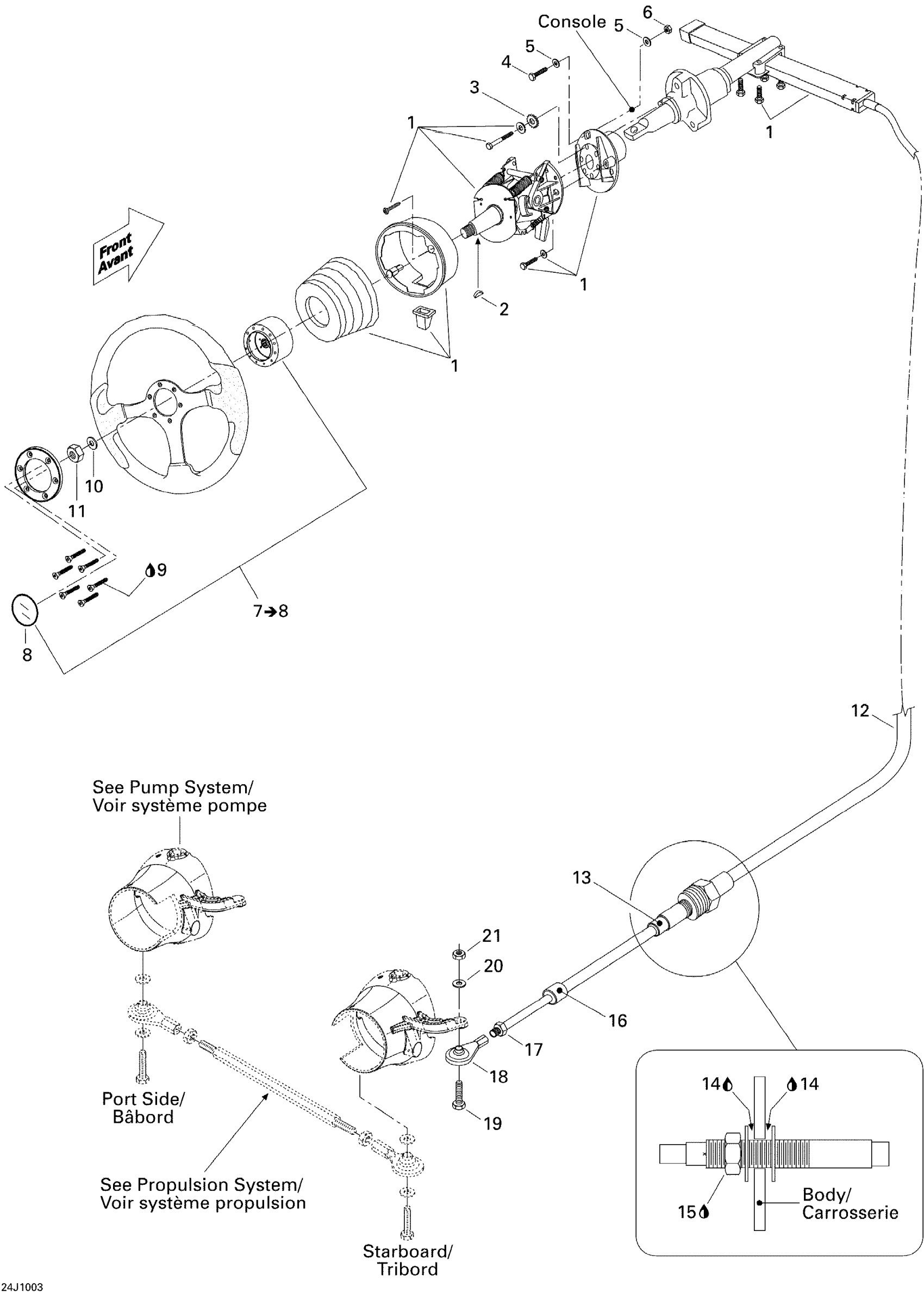

Sea-doo 200 Speedster 510, 2 x 255 (1503HO), 2010 Steering Diagram

#

Description
Price

1

HELM TILT ASS'Y - Call your local BRP dealership | Twin Engine Models

277001690

Unavailable

2

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

3

Serrated Lock Washer 8 mm

234481608

$1.15

4

Hex. Screw M6 X 40

207164060

$3.38

5

Stainless Flat Washer M6

234061600

$0.33

6

Hex. Elastic Stop Nut M6

232561600

$1.15

7

Steering Wheel Ass'y | Includes 7 to 8

204390556

Unavailable

8

CENTER CAP - Call your local BRP dealership | STD

204390563

Unavailable

9

Loctite 243, 10 ml

293800060

$21.49

10

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

11

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

12

STEERING CABLE - Call your local BRP dealership | Twin Engine Models

277001867

$489.99

13

SEAL SWIVEL - Call your local BRP dealership

277000440

Unavailable

14

Silicone Sealant 51388, 300 ml

296000309

$36.99

15

Loctite 243, 10 ml

293800060

$21.49

16

Terminal Wiper

277000441

$11.99

17

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

18

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

19

Hex. Screw M6 X 35

207063560

$2.22

20

Stainless Flat Washer M6

234061600

$0.33

21

Hex. Elastic Stop Nut M6

232561600

$1.15
