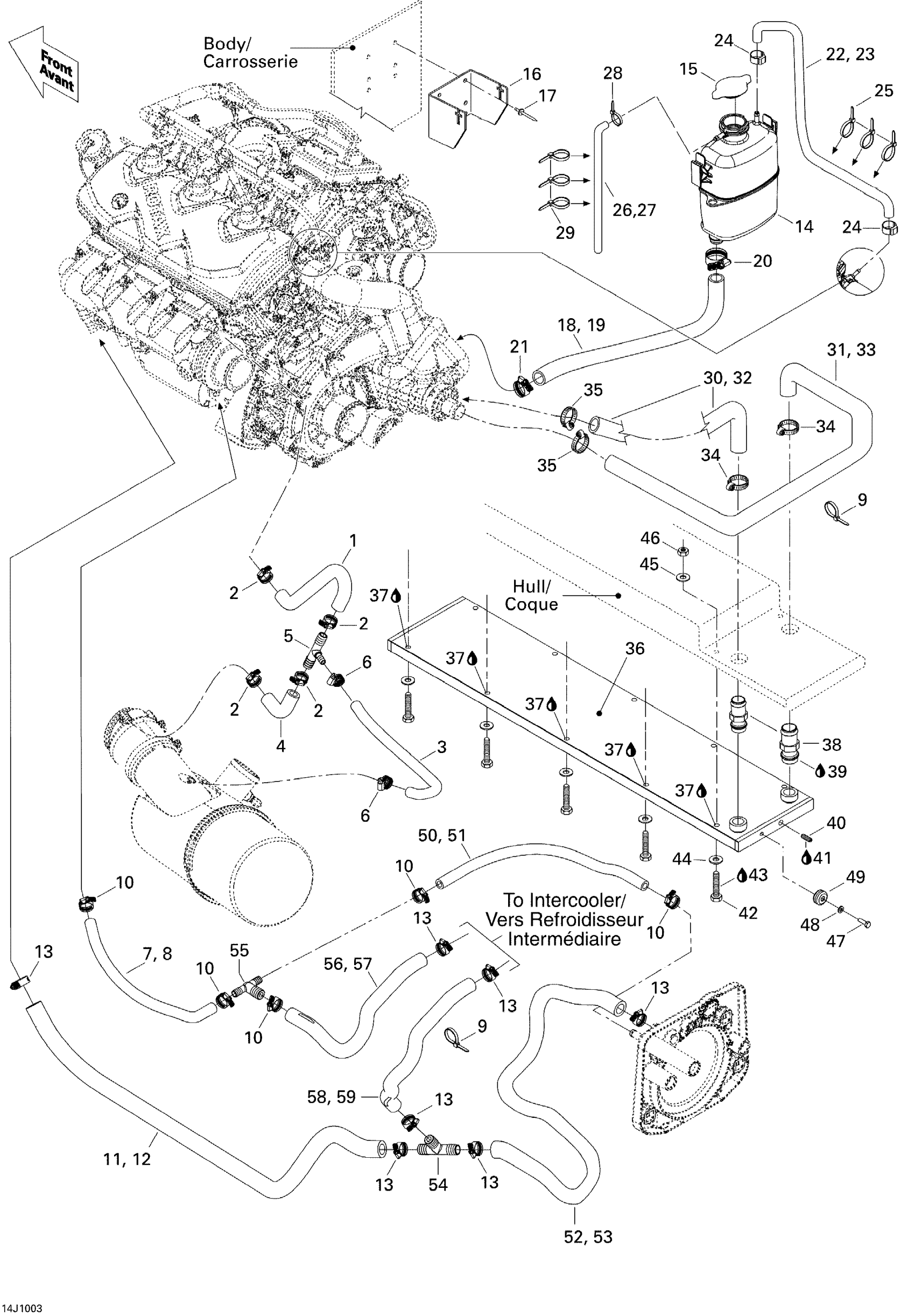

Sea-doo 200 Speedster 510, 2 x 255 (1503HO), 2010 Cooling System Diagram

#

Description
Price

1

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$15.57

2

Tridon Gear Clamp

293650172

$2.68

3

Formed Hose | Without Catalyst

276000246

$14.92

4

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$15.57

5

T-Fitting

293710116

$14.27

6

Tridon Gear Clamp

293650171

$2.46

7

Was 276000001 Hose 12.5 mm

219704394

$42.87

8

Was 276000001 Hose 12.5 mm

219704394

$42.87

9

Tie Wrap 368 mm

293750008

$0.85

10

Tridon Gear Clamp

293650172

$2.68

11

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

12

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

13

Tridon Gear Clamp

293650051

$3.61

14

Coolant Tank

276000086

$87.72

15

Pressure Cap | Includes 720 to 720a

276000100

$20.77

16

COOLANT TANK BRACKET - Call your local BRP dealership

204300213

Unavailable

17

Pop Rivet 3/16"

204000081

$1.31

18

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

19

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

20

Tridon Gear Clamp

293650051

$3.61

21

Tridon Gear Clamp

293650019

$4.81

22

Was 275500549 Hose 1/4"

219704357

$178.33

23

Was 275500549 Hose 1/4"

219704357

$178.33

24

Oetiker Gear Clamp

293650025

$2.46

25

Tie Wrap 142 mm

293750002

$0.88

26

Polyurethane Hose 10000Mm Long

219704410

$46.12

27

Polyurethane Hose 10000Mm Long

219704410

$46.12

28

Tie Wrap 94 mm | 4X4

293750001

$0.83

29

Tie Wrap 142 mm

293750002

$0.88

30

HOSE 25.4 MM, METER - Call your local BRP dealership

204300199

Unavailable

31

Ride Plate Hose This part replaces 204300172.

423465058

Unavailable

32

HOSE 25.4 MM, METER - Call your local BRP dealership

204300199

Unavailable

33

Starboard Formed Hose - Call your local BRP dealership

204300174

Unavailable

34

Tridon Gear Clamp

293650045

$4.51

35

Tridon Gear Clamp

293650045

$4.51

36

HEAT EXCHANGER - Call your local BRP dealership

204300255

Unavailable

37

Instant Gasket

219701421

$50.02

38

Hose Fitting - Call your local BRP dealership

204300133

Unavailable

39

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

40

Pipe Plug Socket Head 1/8-27 Npt

211500001

$7.02

41

Was 293800013 Loctite 56765

219704454

$63.40

42

SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership

205405060

Unavailable

43

Loctite 243, 10 ml

293800060

$20.77

44

Flat Washer 10 mm, Stainless

234000600

$1.07

45

Flat Washer 10 mm, Stainless

234002600

$1.85

46

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

47

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

48

Stainless Flat Washer M6

234061600

$0.25

49

Anode Zinc

271001813

$13.62

50

Was 276000001 Hose 12.5 mm

219704394

$42.87

51

Was 276000001 Hose 12.5 mm

219704394

$42.87

52

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

53

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

54

T-Fitting

293710131

$12.57

55

T-Fitting

293710132

$9.48

56

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

57

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

58

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

59

Hose 19.0Mm. 2000Mm Long

219704361

$46.99
