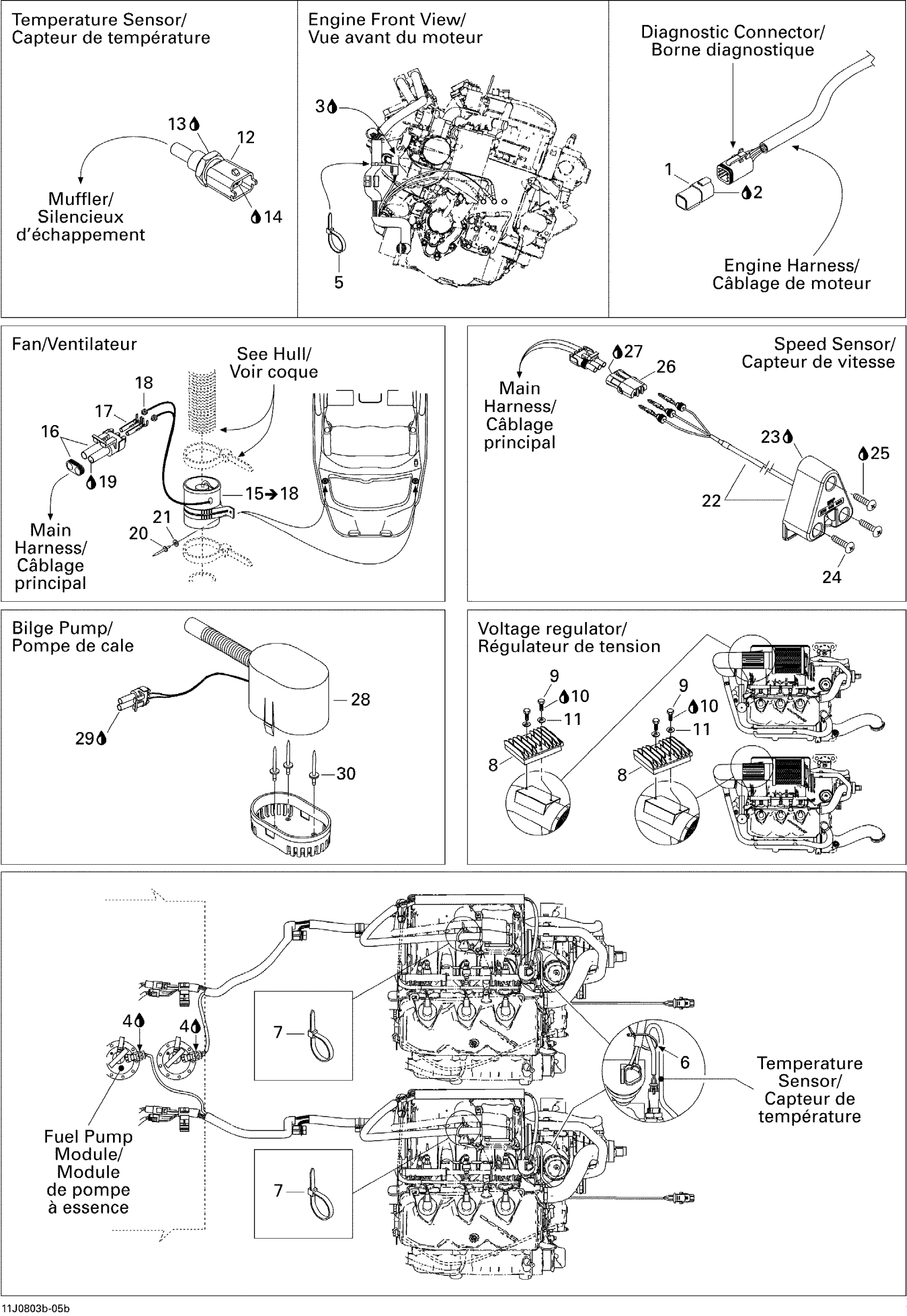

Sea-doo 200 Speedster 430, 2008 10- Electrical Accessories 2 Diagram
#
Description
Price
1
Diagnostic Connector
278002704
$19.49
2
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
3
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
4
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
5
Tie-Rap 180 mm
414115200
$0.11
6
Tie Wrap 142 mm
293750002
$1.25
7
Tie Wrap 142 mm
293750002
$1.25
8
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
$142.99
9
HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst
204100226
Unavailable
10
Loctite 243, 10 ml
293800060
$21.49
11
Lock Washer 1/4”
211200025
$1.29
12
Temperature Sensor
278002895
$39.99
13
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
14
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
15
Fan Ass'y | Includes 44 to 47
204470108
$144.99
16
Male Connector, 2 Circuits
278000220
$15.49
17
Female Terminal
278000223
$3.19
18
Wire Seal
278000218
$4.39
19
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
20
Pop Rivet 3/16"
293150008
$0.50
21
Flat Washer 5 mm, Stainless
234052600
$0.77
22
Speed Sensor
278001993
$169.99
23
Silicone Sealant 51388, 300 ml
296000309
$36.99
24
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
25
Silicone Sealant 51388, 300 ml
296000309
$36.99
26
Female Terminal Housing, 3 Circuits | XT Models
278000281
$9.85
27
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
28
Bilge Pump
204471431
Unavailable
29
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
30
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
