- 200 Speedster 430, 2008
10- Electrical Accessories 1

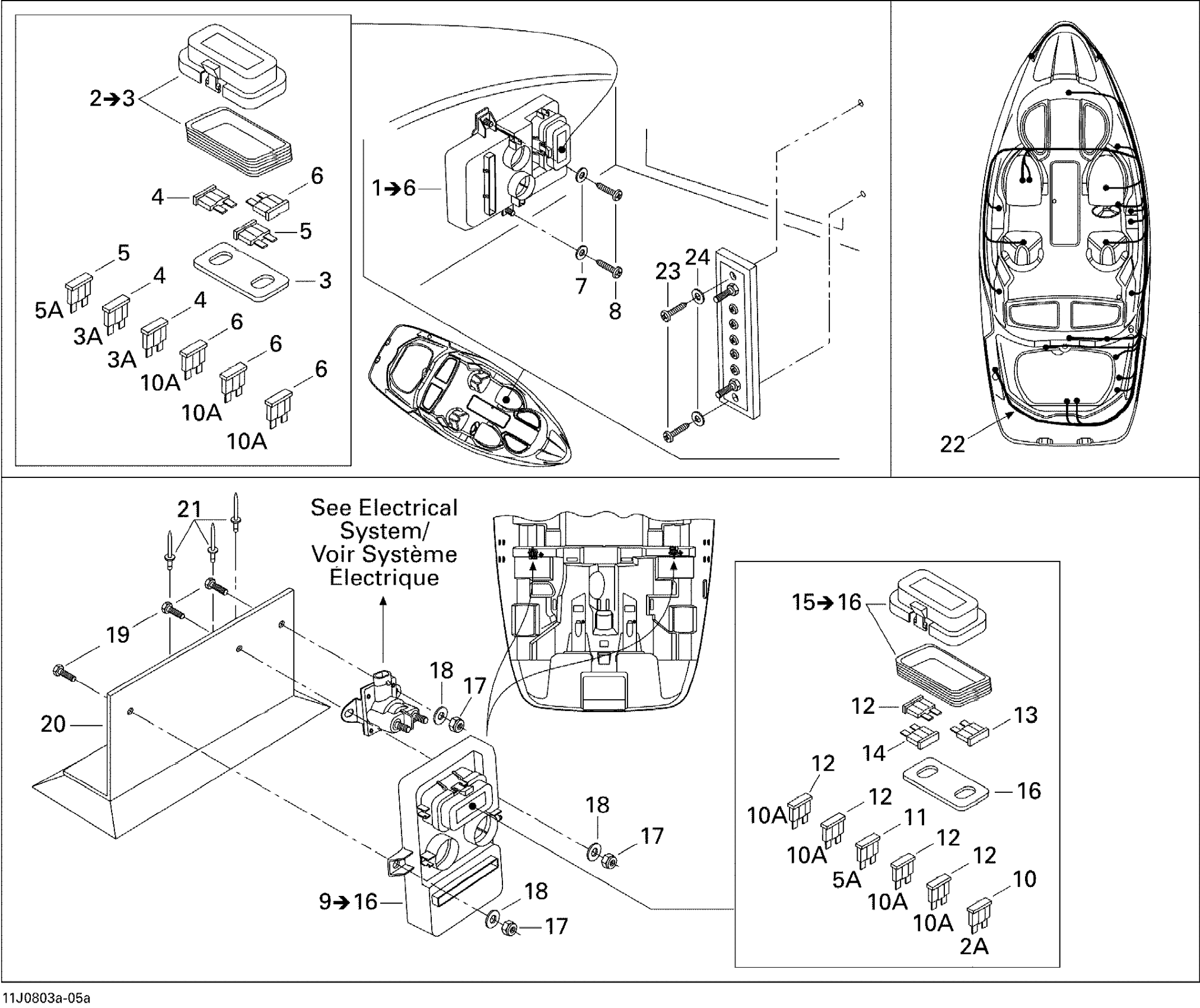

Sea-doo 200 Speedster 430, 2008 10- Electrical Accessories 1 Diagram
#
Description
Price
1
TWIN ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6, North America
204471262
Unavailable
2
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
$36.99
3
COVER BUSHING - Call your local BRP dealership | North America
278001719
Unavailable
4
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
5
Fuse, 5 Amperes | CE
278000344
$3.28
6
Fuse, 10 Amperes | North America
278001197
$2.21
7
Flat Washer M6, Stainless
234062600
$0.77
8
TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership
204100203
Unavailable
9
FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24
204470770
Unavailable
10
FUSE, 2 AMPERES - Call your local BRP dealership
278001442
Unavailable
11
Fuse, 5 Amperes | CE
278000344
$3.28
12
Fuse, 10 Amperes | North America
278001197
$2.21
13
Fuse, 20 Amperes
409003900
$3.28
14
Fuse, 30 Amperes
410917200
$3.28
15
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
$36.99
16
COVER BUSHING - Call your local BRP dealership | North America
278001719
Unavailable
17
Hex. Elastic Stop Nut M6
232561600
$1.15
18
Flat Washer M6, Stainless
234062600
$0.77
19
Hex. Forming Screw M6 X 20
207162060
$1.29
20
BRACKET - Call your local BRP dealership
204471071
Unavailable
21
Avdel Rivet 3/16"
293150037
$0.56
22
MAIN HARNESS (ACCESSORY HARNESS) - Call your local BRP dealership
204471233
Unavailable
23
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
24
Flat Washer 4 mm, Stainless
234041600
$1.15
